Snapmaker U1 Filament Spool Adapter - support-free

Xykit

Print Profile(0)

Earn points by adding print configurations

Released 2026-01-07

Details

Files(3)

Makes & Comments (0)

Description

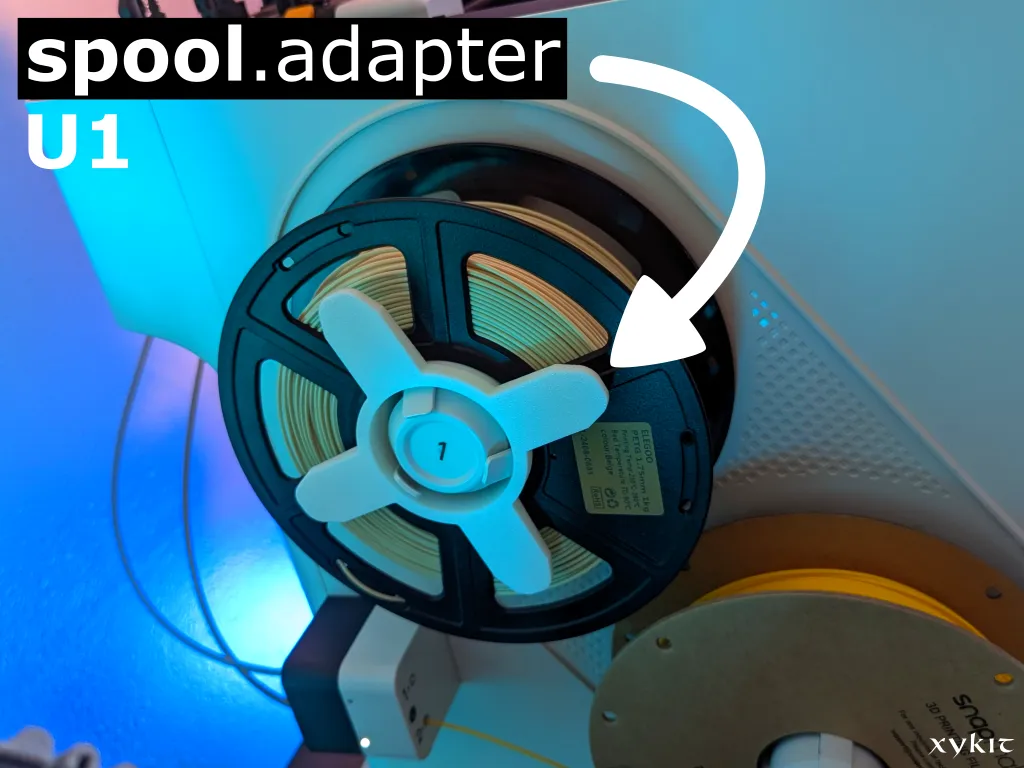

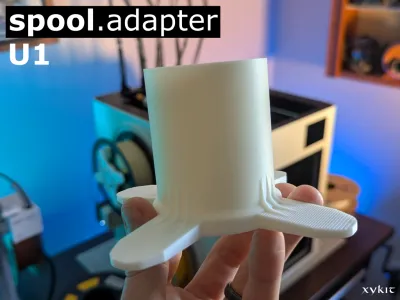

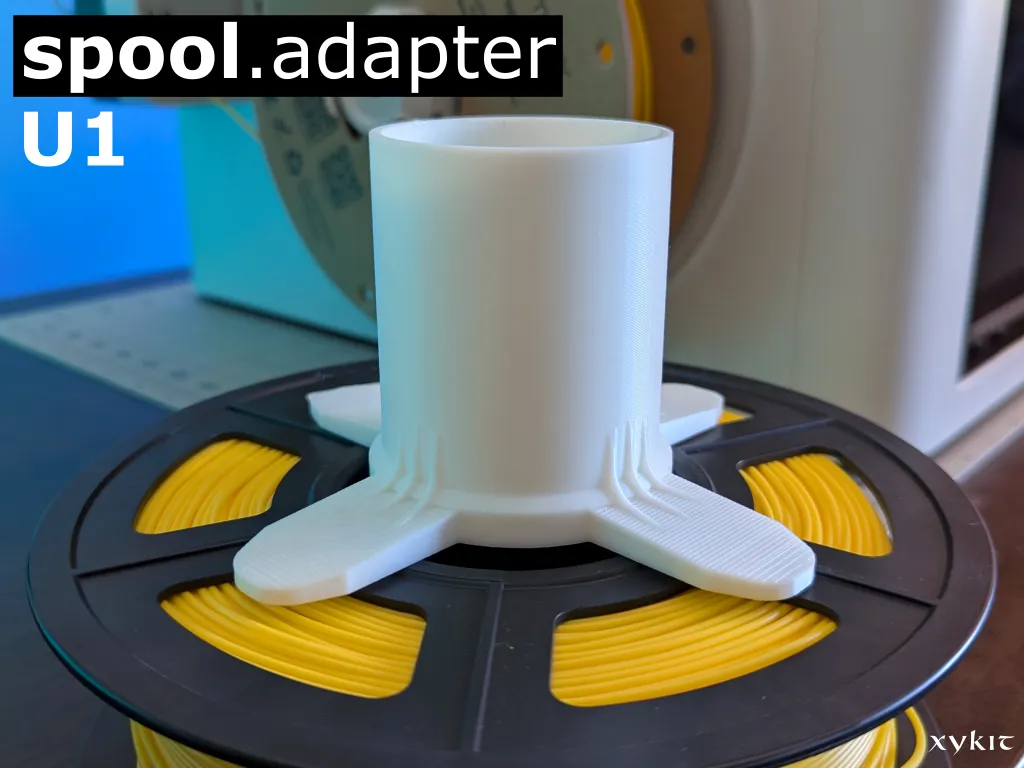

This spool adapter model is designed to work with the Snapmaker U1 3D printer. The adapter will accomodate any spool with an inner diameter over 60mm.

Dimensions:

Inner diameter - 55mm
Outer diameter - 60mm
Height - 75mm
Overall Width - 139mm x 139mm

This design prints without the need for slicer supports. It is ribbed on the fins for extra strength and angled slightly to help guide the spool toward the machine instead of outward.

Recommended Print Settings

Shells/Walls - 3
Infill - 10-12%
Supports - none
Layer Height - .2mm (adaptive, smooth)
