Flat Hinge – 80 mm – 3D Printed – 4 Holes Mounting

AlexS1499

Print Profile(1)

0.2mm layer, 2 walls, 15% infill

1-disc

PLA

Designer

Released 2026-01-04

Details

Files(1)

Makes & Comments (0)

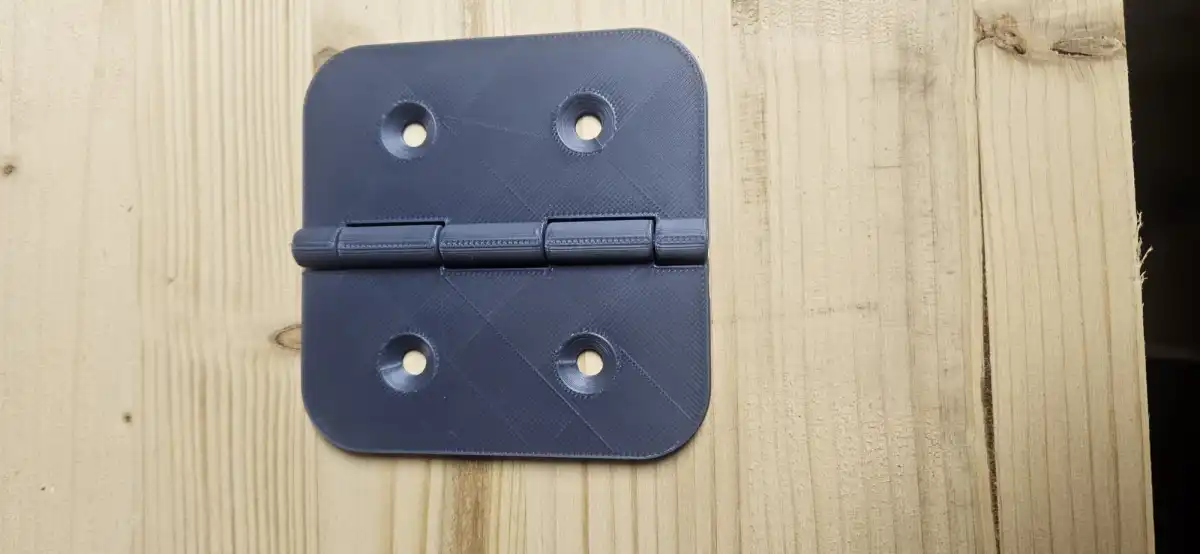

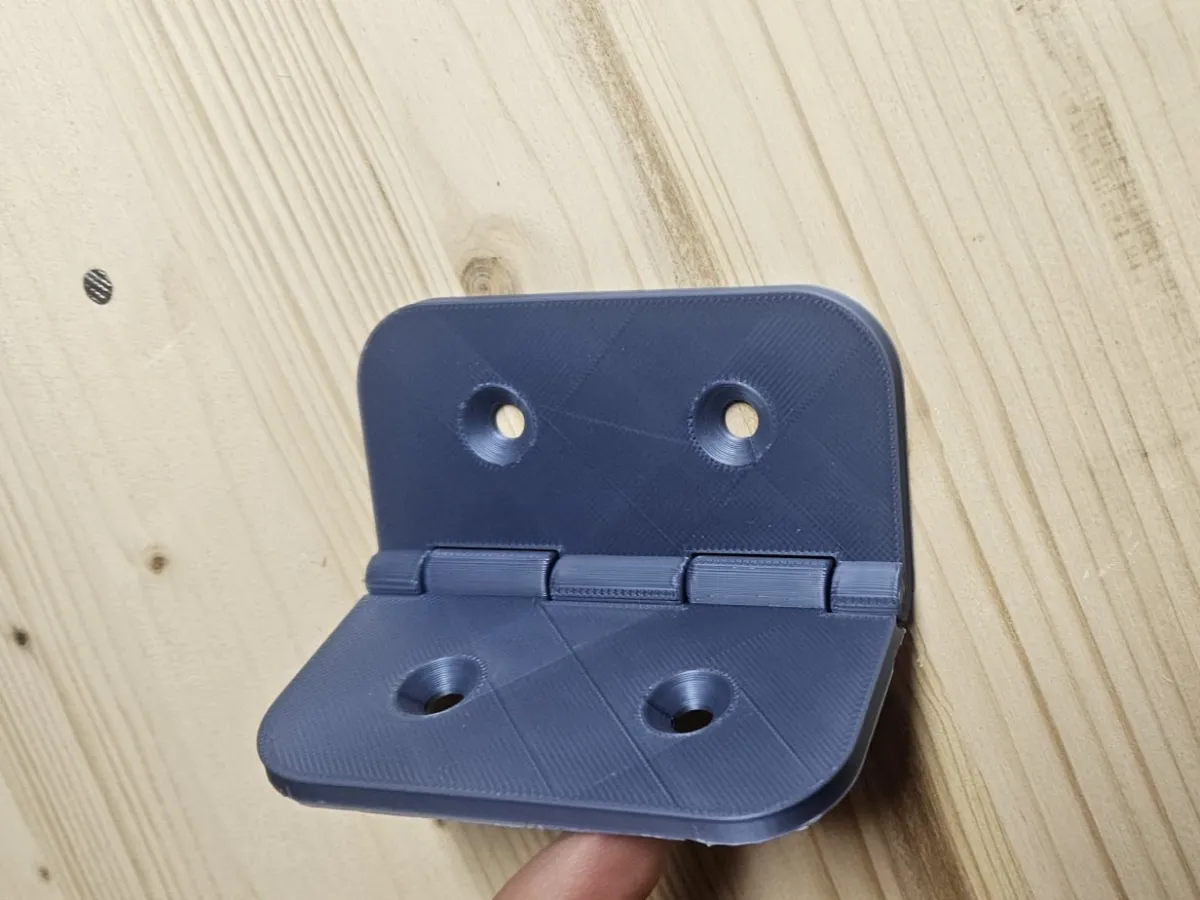

This flat hinge is designed for doors, drawers, and small cabinets, offering a simple and functional solution for lightweight applications.

With a total length of 80 mm, a thickness of 4 mm, and four mounting holes (two on each side), this hinge provides reliable alignment and easy installation using standard screws.

Key Features

Total length: 80 mm
Thickness: 4 mm
Four mounting holes (two per side)
Suitable for doors, drawers, and small furniture
Simple and clean design
Optimized for 3D printing
Easy to scale for different sizes

3D Printing Recommendations

Supports: not required
Layer height: 0.2 mm
Infill: 30–40% recommended
Material: PETG or ABS for durability (PLA for light-duty use)

Ideal For

Cabinet doors
Drawers
Small enclosures
DIY furniture projects

A compact and practical hinge, perfect for 3D printed furniture and custom builds.

Originality of the Model

The author declares that this work is their personally original model
