Arduino R4 Case
Print Profile(0)

  • Earn points by adding print configurations

0

1

29

4

Released 2026-03-30
Details
Files(2)
Makes & Comments (0)

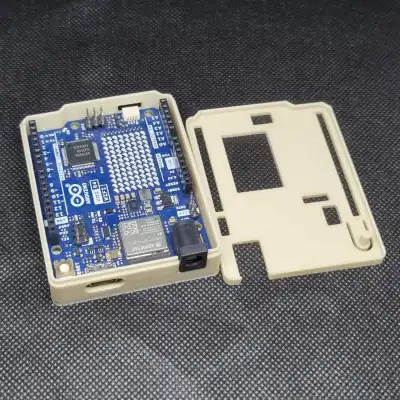

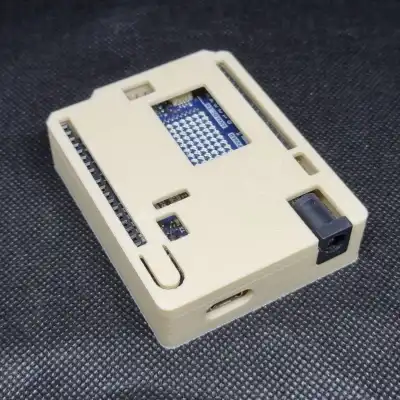

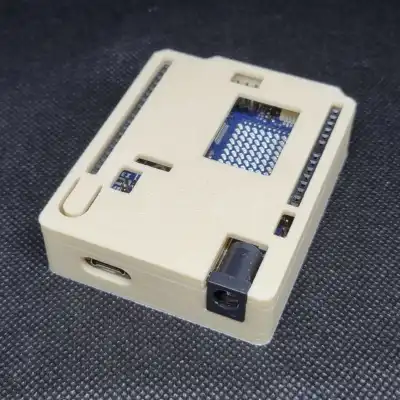

This is a simple snap fit case i made for the Arduino Uno R4 in Onshape! It is modeled after the GrabCAD 3d model here https://grabcad.com/library/arduino-uno-r4-wifi-1 with .15 mm tolerances. Connectors have bigger tolerances because of cable sizes. All leds have holes to make them visible outside of the case. There is also a flap that pushes down on the reset button!

Supports are recommended for a clean look, but is not required. 0.2mm Layer height and 15% infill.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
