Xiaomi G20 Vacuum Wheel Repair Clamp

Print Profile(1)
27
1
Released 2025-12-24

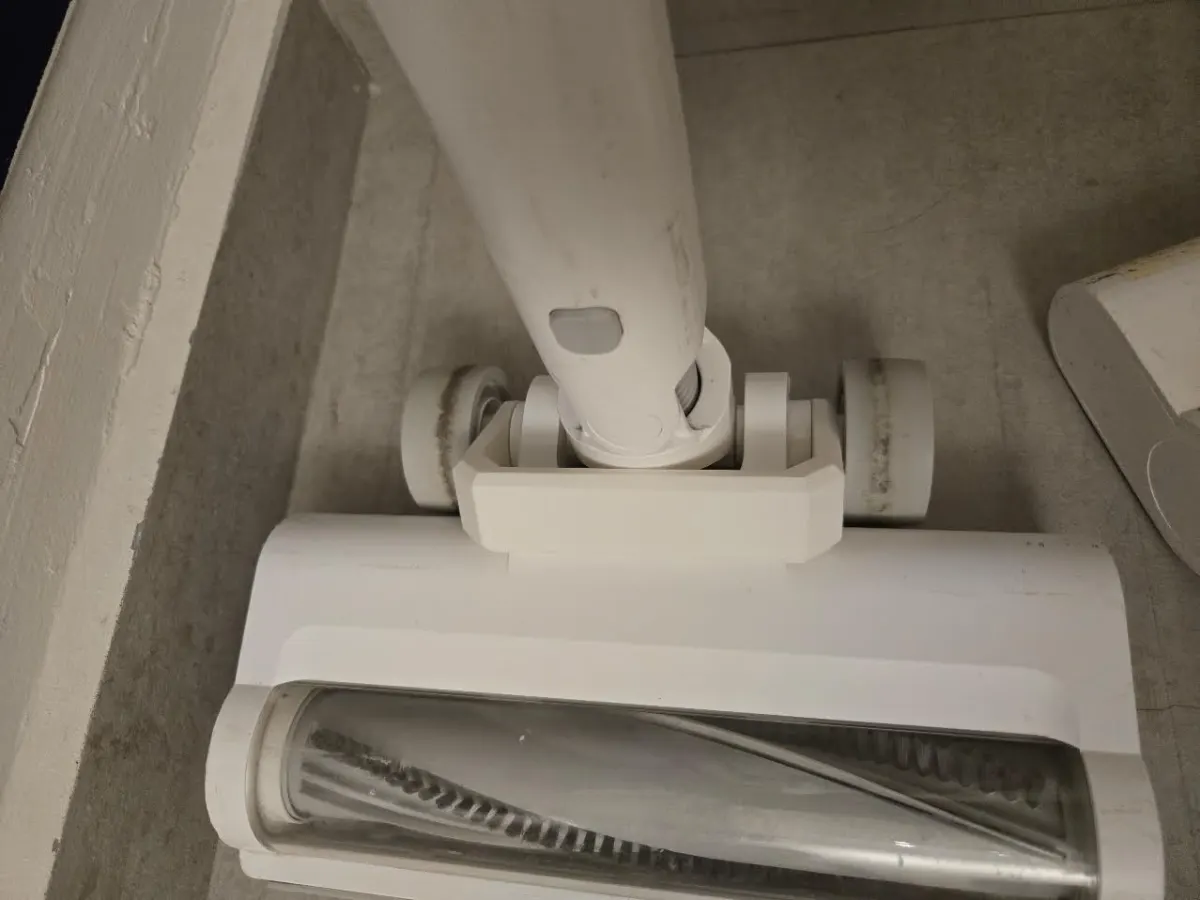

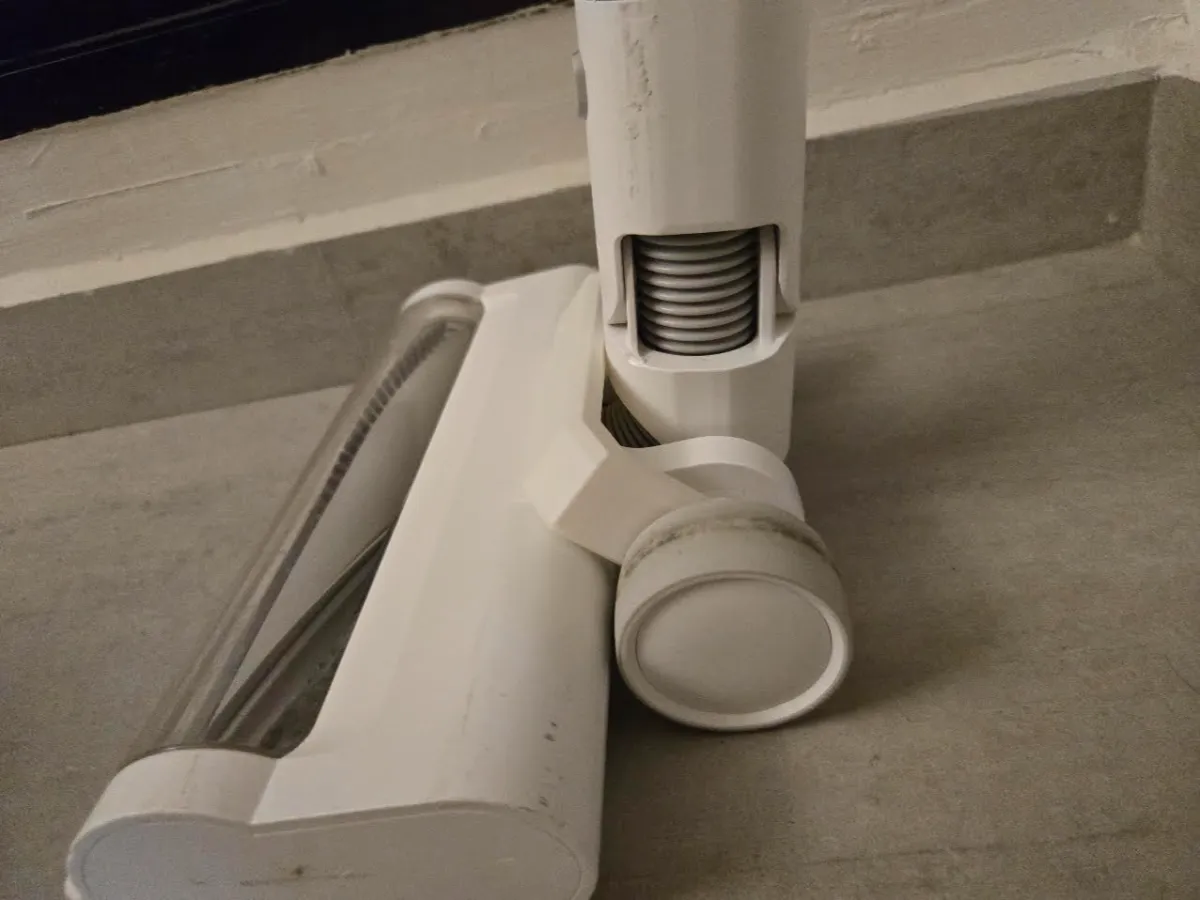

Both wheels of my Xiaomi G20 Vacuum roller brush broke at the axle, and there was no way to glue them back. So I designed a wheel clamp to fix the wheels back!
Materials:
- Printed parts
- 2x 608 bearings
- Original wheels, screws, and axle sleeve
Instruction:
- Print out the parts. (I used Elegoo PLA which is strong enough)
- insert 2x bearings in the inner part of the C-clamp. they should be press fit.
- insert the new printed axle from the inner part of the C-clamp, through the bearings. these should be tight to ensure the wheels do not wobble. if they are too big, sand them slightly.
- Insert the printed axle sleeve from the outer part of the C-clamp
- Insert original wheel
- Screw using original screw into the printed axle. Make sure it's not too tight such that the wheels can still spin freely.
Bill of materials
- NameQuantityNotes
- 1608 bearings2you can use many of the 3D printed bearings of the same size as well in a pinch.
