... contains 4 parts (case / devider / inserts / TPU parts)

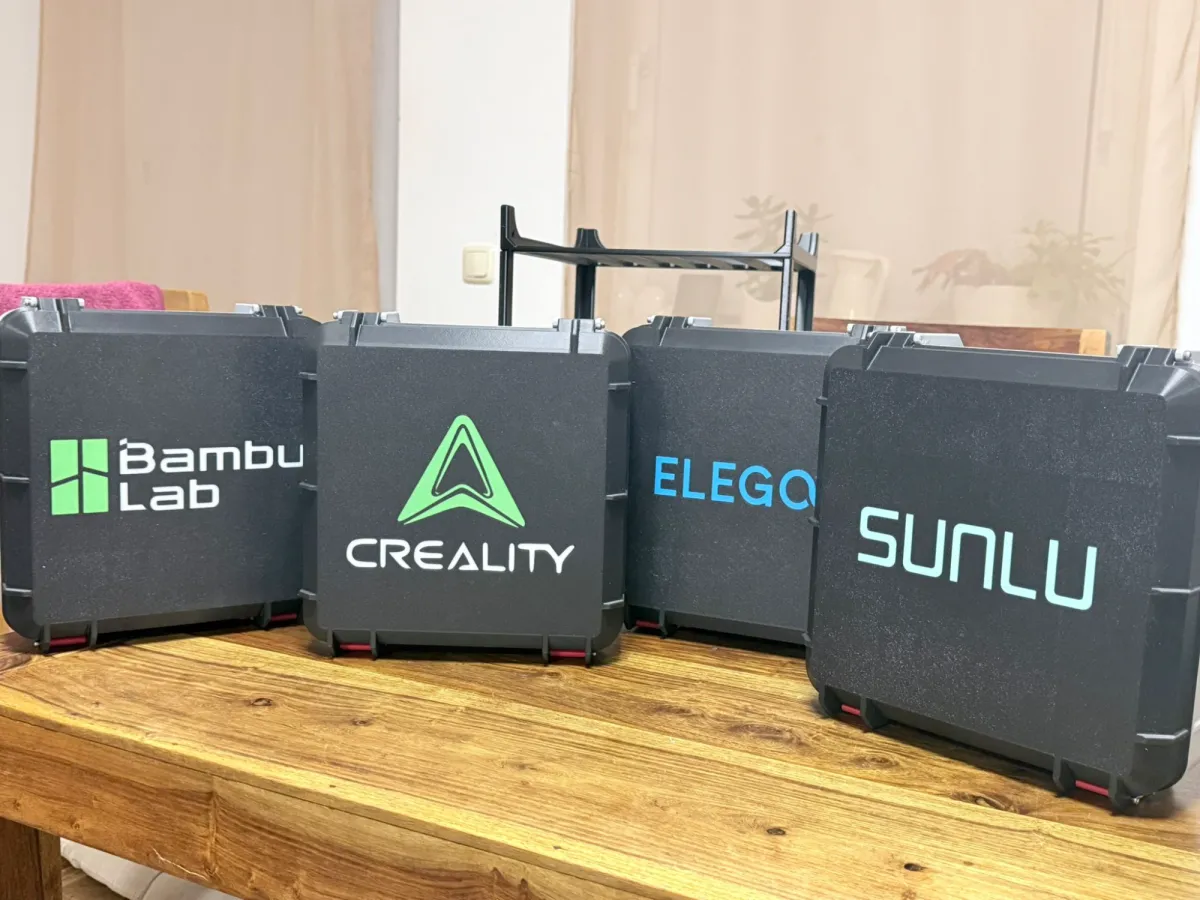

This model file contains the native box without any logo on top because the top with logo is intended to be printed on multicolor-printers. Feel free to ask me for these model files.

This toolbox can be printed on 3D printers with 25x25 cm or more build plate.

The following provides some further information about the individual parts of the box, the accessories and assembly.

Part 1 (case)

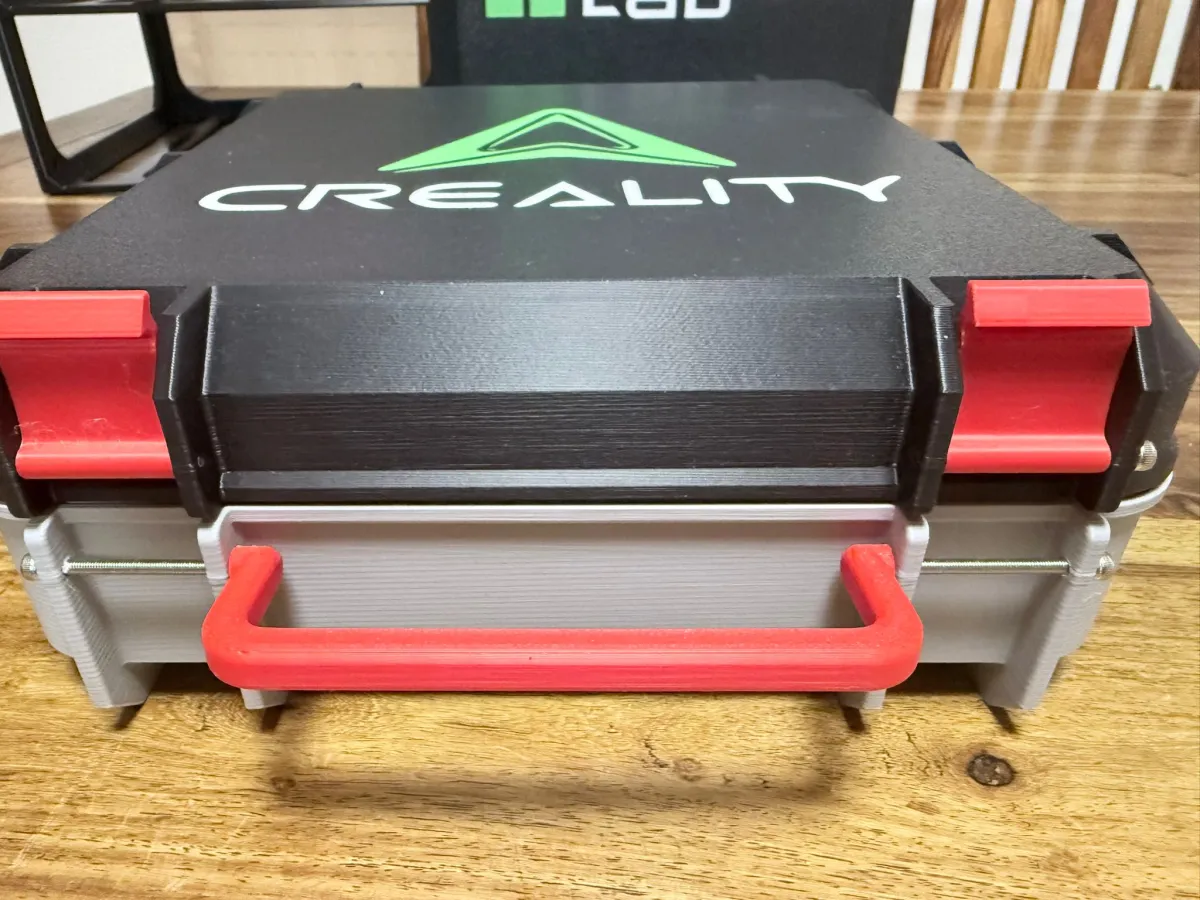

Print latches with brims to stabilize them on the plate. For assembly you will need 2 M3x40 and 4 M3x35 screws (hinges/upper latches with M3x35 and lower latches/handle with M3x40). Please do not overtighten the screws, otherwise the mounts may break or the hinges may become stiff. I also used a little bit of grease for the hinges.

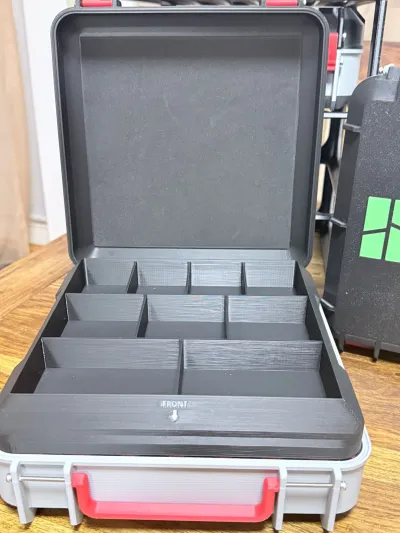

Part 2 (devider)

I designed the devider as 2 parts. Part one is the devider itself, plate 2 may be printed with PLA or also with TPU (as I do). TPU parts can be found in print setting file 5

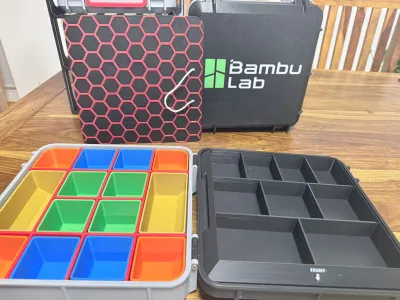

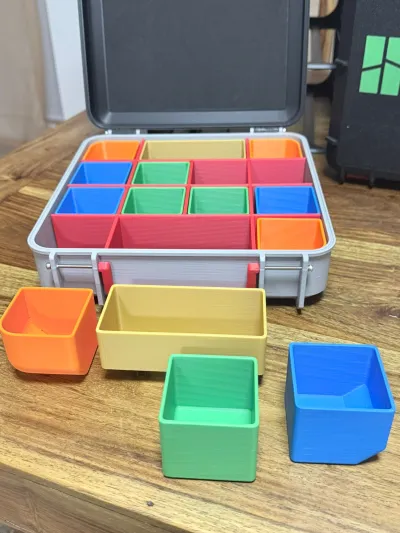

Part 3 (inserts)

These plates contain the upper and all the lower inserts for the box. Everything can be printed without brims or support except the lower corner insert. Therefore tree support should be used for this, otherwise the surface will not be smooth.

Part 4 (TPU parts)

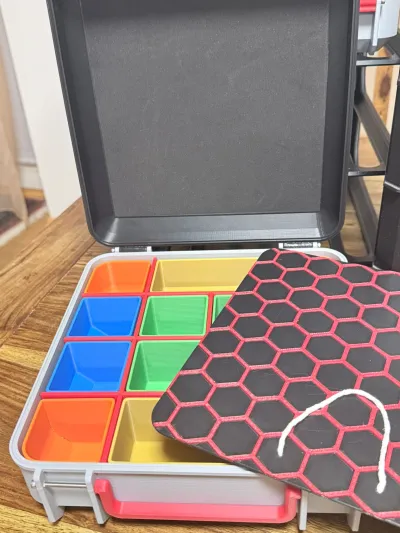

As mentioned above, the devider inlay may be printed using TPU (95A). I've done this because of the haptical feeling.

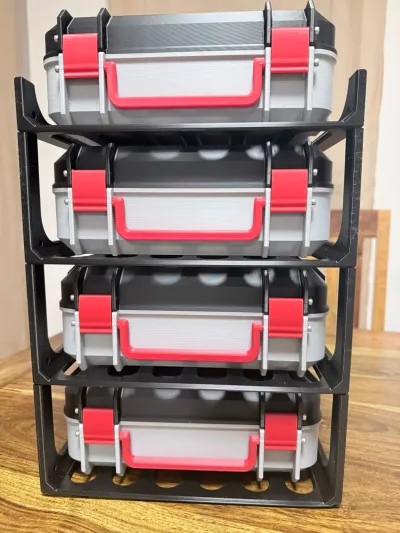

The pictures may show the box(es) with a shelf, but to print the shelf itself, a build plate > 30 cm is necessary. If you own such a printer, again feel free to ask me for the shelf files.
