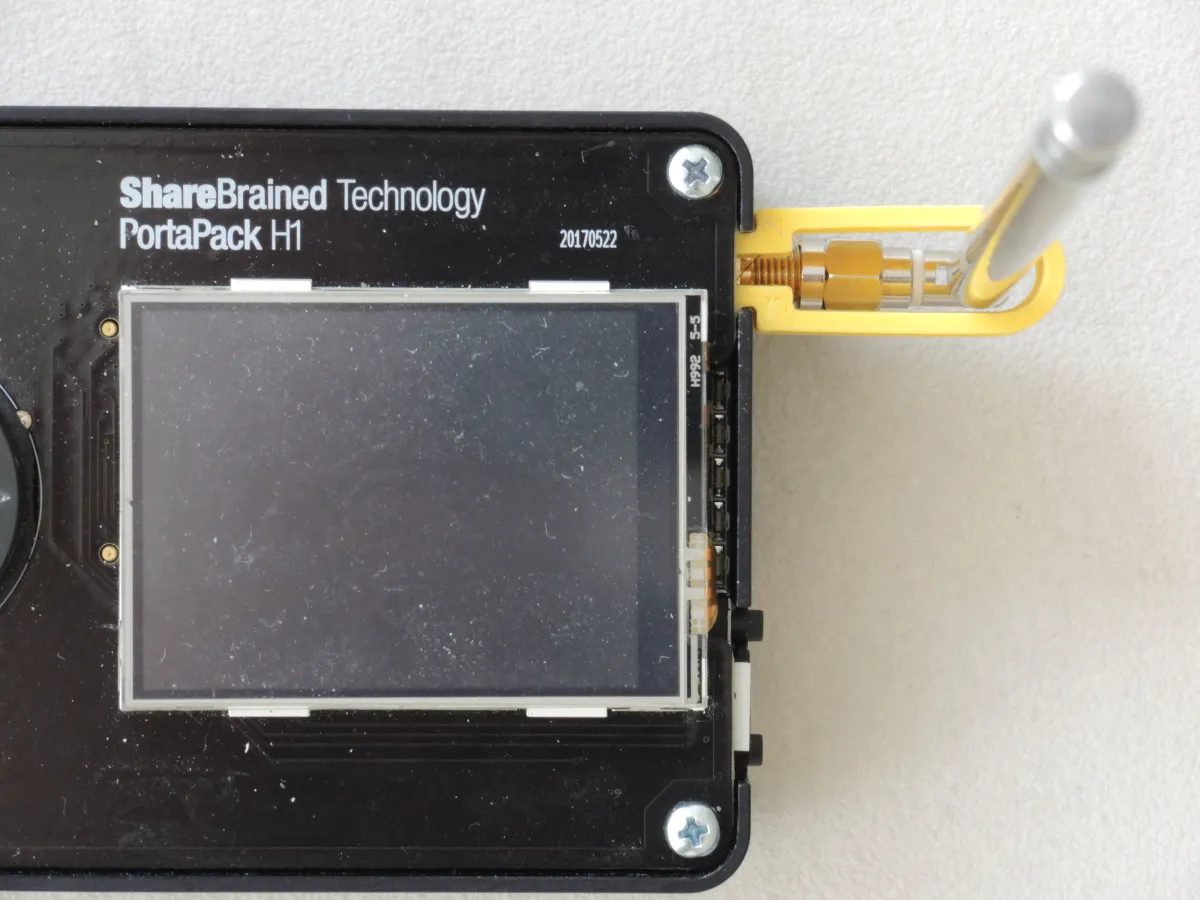

This is an alternative to my other HackRF Portapack H1 antenna stabilizer:
https://www.thingiverse.com/thing:4892365

The distinction is that this one may be mouned and dismounted without having to unscrew and lift the Portapack H1 PCB.

As always I include the OpenSCAD source file for you to adapt and/or improve:

  • Download and install OpenSCAD from https://www.openscad.org
  • Launch OpenSCAD and open the enclosed OpenSCAD source file (/File/Open).
  • Amend the parameters at the top of the file or even amend the code.
  • Save your changes (/File/Save).
  • Render the design (/Design/Render).
  • Export the rendered design e.g. as a .stl file (/File/Export/Export as STL).
  • Slice and print.

See my other designs at
https://www.thingiverse.com/thinger13/designs

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • 230723_Antenna_Clip.scadDesigner

    1.40 KB

    2026-03-13

  • model file image
    230723_Antenna_Clip.stlDesigner

    20.98 KB

    2026-03-13
