Portable

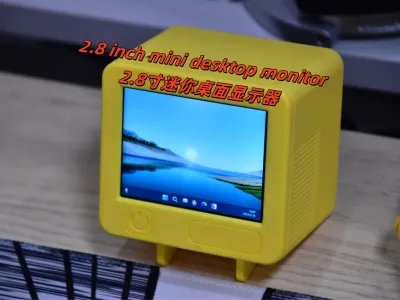

Display monitor
- 0.28 mm layer height, 2‑wall walls, 10% infill density
1-disc
PLA
Designer
10
3
Display and Driver Board Purchase Link: https://e.tb.cn/h.TJ4wzSlKra8pEEA?tk=rpNWeS85o60
Begin by installing the driver board—place it inside the small housing within the model and secure it with hot melt adhesive.
Fit the small housing snugly into the recessed cavity inside the model.
Press the display into the recess on the inner side of the screen.
Align the mounting holes and complete the installation—secure it using three M3×10 screws on both the top and bottom.
Power the device via a Type-C connection.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(1)
- 2.8寸mini显示器外壳.3mfDesigner
1.55 MB
2025-12-04
