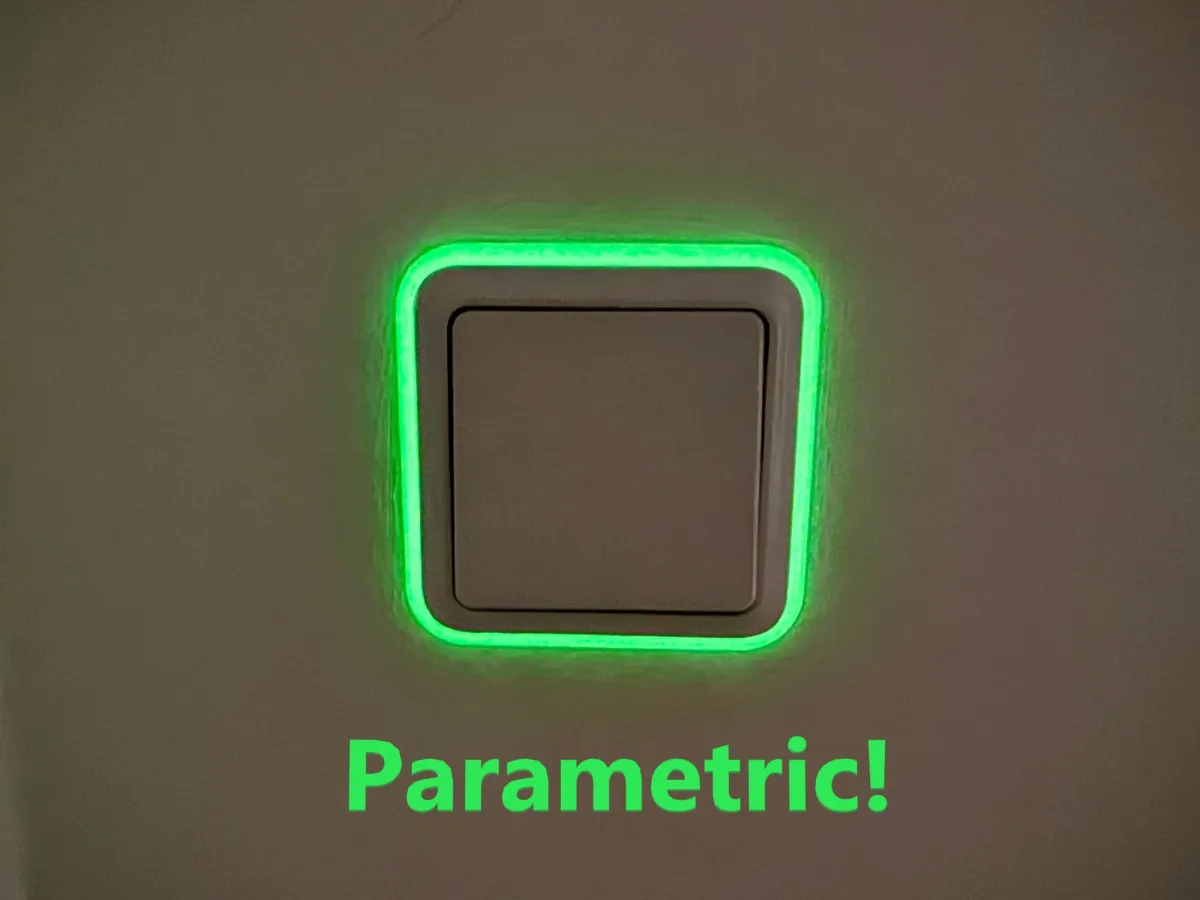

parametric glowing frame for light switch and power outlet (glow in the dark)
Print Profile(1)
  • edgy and beveled - 0.2mm layer, 2 walls, 100% infill

    1-disc

    PETG

    Designer

1

0

64

5

Released 2025-11-23
Details
Files(8)
Makes & Comments (0)

Summary

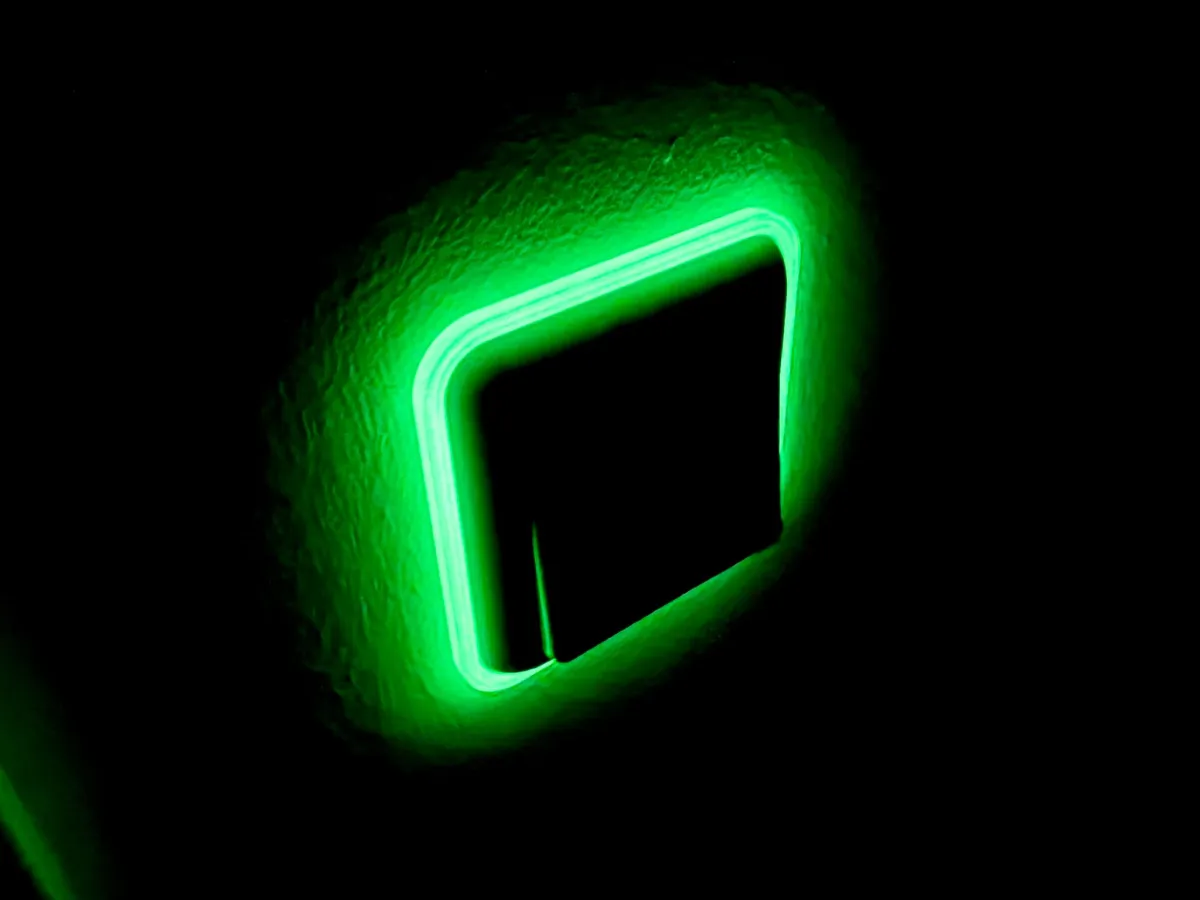

Print a easy attachable frame that glows in the dark — perfect for nighttime orientation or emergency lighting. Whether for kids, adults, or safety-conscious households, it makes finding the switch easy without turning on the lights. No power needed!



Parametric design

Autodesk Fusion (360) .3fd file attached for custom outputs.

All tolerances are 0.15mm in general. If you encounter a too tight or loose fitting, please scale x/y or use different values in Fusion.



Values

Namedescriptiondefault
heightmeasured height of the switch/socket83.25 mm
widthmeasured width of the switch/socket83.25 mm
radius_of_edgesradius of corner rounding10 mm
thicknessthickness of the frame in general4 mm



Print

All tolerances are 0.15mm in general. If you encounter a too tight or loose fitting, please scale x/y or use different values in Fusion.



Plase make sure to print with 100% infill to reach maximum lumination.



  • Filament: “Glow in the Dark” PLA or PETG
  • Layer height: 0.2mm
  • Infill: 100% (concentric)
  • Top/Bottom layer pattern: concentric
  • Perimeters/Walls: 2
  • Supports: Not required
  •

Please note!

When using glow-in-the-dark material, be sure to use a hardened nozzle. Normal brass nozzles wear out quickly because the filament is very abrasive.



Installation

Simply press over the existing switch or socket frame. If you encounter a too tight or loose fitting, please scale x/y.
