Updates over on Printables: https://www.printables.com/model/1442506-mount-for-walksnail-moonlight-camera-and-vtx

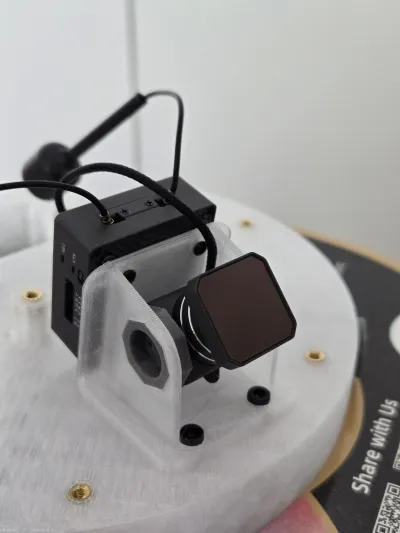

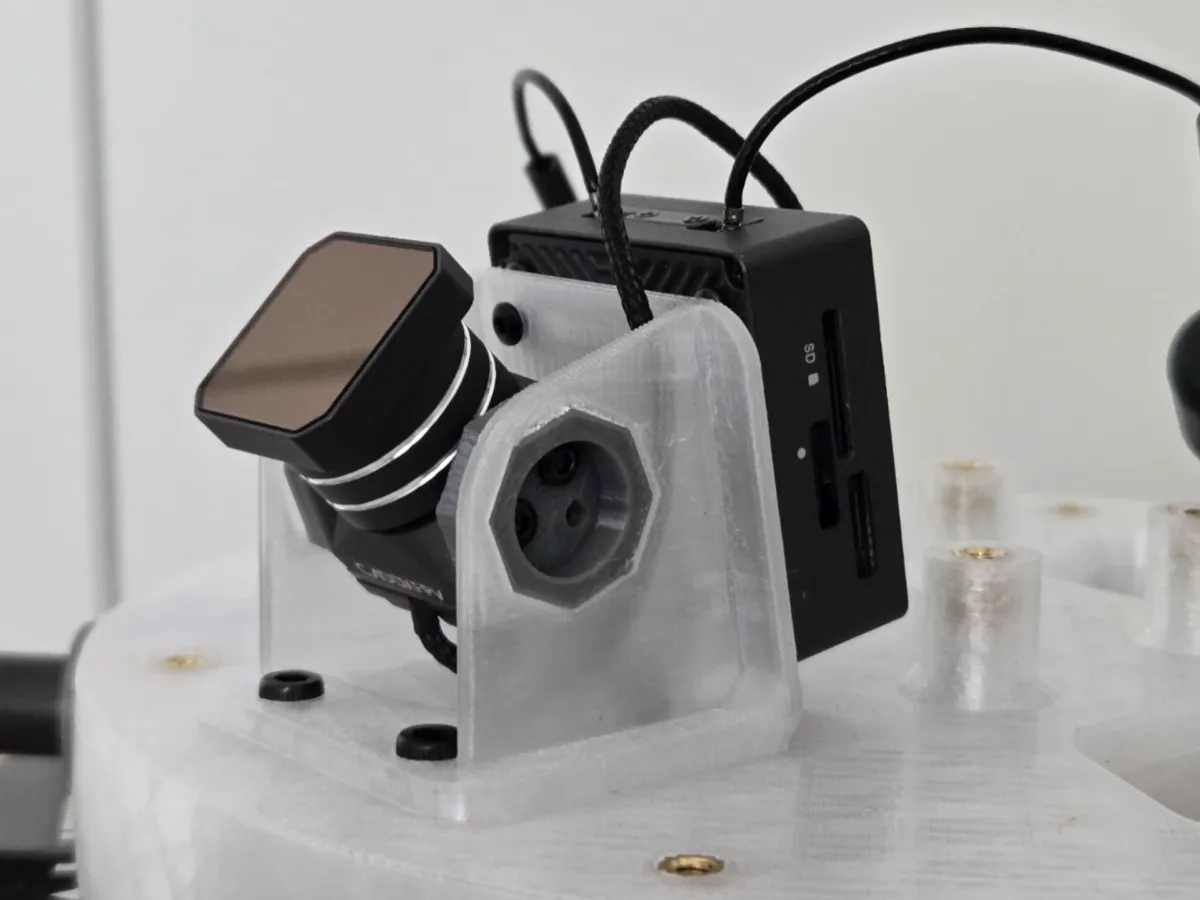

Mount for walksnail moonlight camera and VTX.
Uses TPU parts to reduce vibrations. Can be angled at many different positions.
Advantage over screw adjustment is that you always have the exact same angle each time you mount the camera, no estimations.
Print the camera holder parts in TPU and the mount frame in rigid material (preferably something that can handle heat radiating off the VTX).
Mounting pattern is 20x20 ⌀3.3mm (M3 screw loose fit).
Main goal of this model was to make it fit very tight space. A bit unusual mounting as I'm using this for my own drone design.
There are no mounts for antennas in this model.
Printing: Separate models in slicer by right clicking the object and selecting “Split” → “To objects” and then print the separately in advised materials.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
No Copyright.
Models(1)
MoonlightMount.stlDesigner202.52 KB
