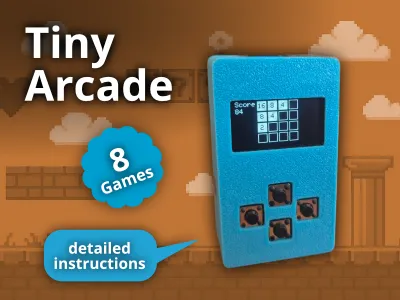

This is a mini console with 8 classic retro games, that fits in the palm of your hand. To build it, you only need to know how to solder and need a few electronic parts. The instruction will guide you through the process of building this console step by step. It is a very fun project to get startet into electronics!

Games included:

• Snake
• Tetris
• Flappy Bird
• 2048
• Breakout
• Frogger
• Helicopter
• Pac-Man

You will Need

Note: the Links provided are referal-links. When you buy products using them, I will get a small share with no additional cost to you.

Material

• ESP8266 D1 Mini - available here
• I2C 0.96 inch OLED Display - available here
• 4x Push Buttons (6x6x5mm) - available here
• Perforated Grid Board / Prototype PCB- available here
• 2x Short M3 countersunk head screws (5mm-10mm) - available here
• Thin wire for connections - available here
• Solder - available here
• USB Cable

Tools

• Soldering Iron - available here
• Cutter knife or saw (to cut PCB) - available here
• Cutting pliers - available here
• Wire strippers - available here
• File / Sandpaper (if PCB needs resizing) - available here
• Hot glue gun (optional) - available here

Check out the PDF below for the building instructions.

The source-files are available on GitHub - but you will also find everything you need here on printables.
