Summary

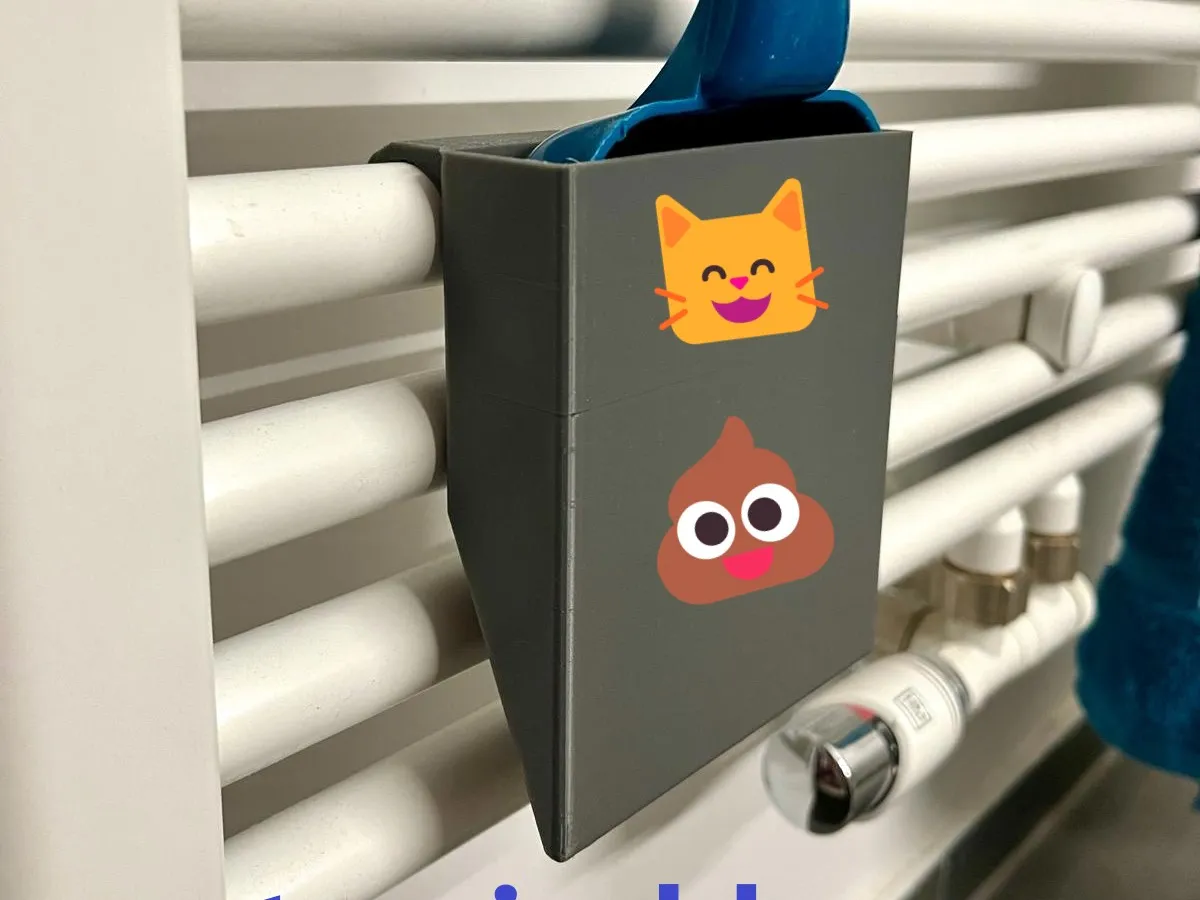

The cat toilet is also in the bathroom and you don't know where to put the disgusting scoop? Hang in the heating pipe and stow it cleverly in front of or behind the towel radiator!

Customization

Fusion 360 (free download) is required to adjust the parameters.
Please use the table to find the parameters.

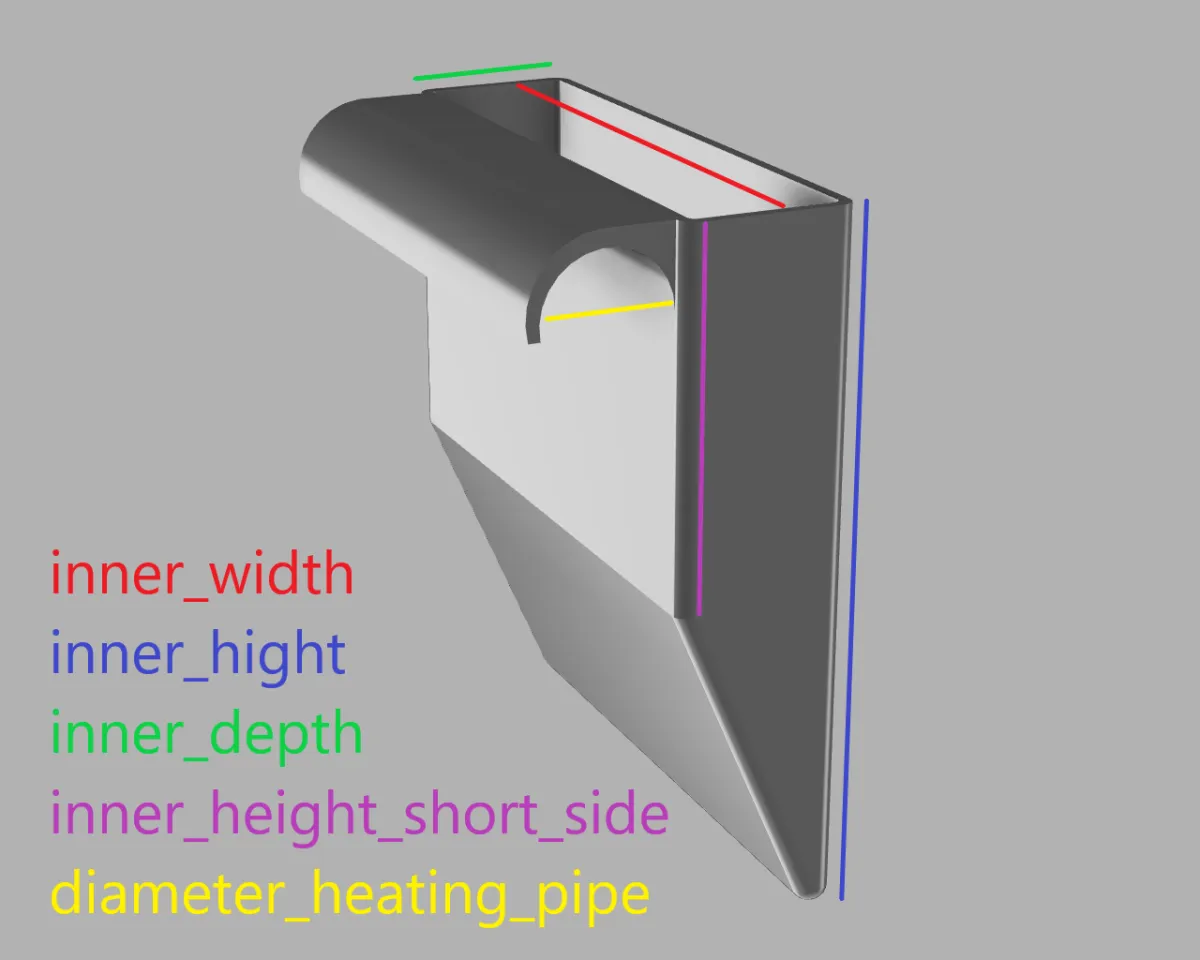

Parameter name	Description	Meaning	line color in picture
inner_width	inner width of the holder	width of the cat scoop + 1 - 2mm	red
inner_hight	absolute hight of the holder	hight from tip to handle of the scoop	blue
inner_depth	inner depth of the holder	thickness of the scoop + 1 - 2mm	green
inner_height_short_side	inner hight on the short side	height before the scoop gets angled	purple
diameter_heating_pipe	diameter of the heating pipe	diameter of the heating pipe	yellow

Print

I printed mine in PETG. PLA or other materials should also work.
Printed with 0.3mm layer height. No supports needed!
Print orientation ist shown in the example stl-file.

PS: This is my first attempt to create a parametric model. I would be very happy to receive any kind of feedback! :)
