Tolerance and Fit Testing Tool – 3 Shapes
Print Profile(1)
  • Tolerance Tester + Circle + Square + Triangle

    1-disc

    PLA

    Designer

11

14

162

68

Released 2025-08-27
Details
Files(5)
Makes & Comments (0)

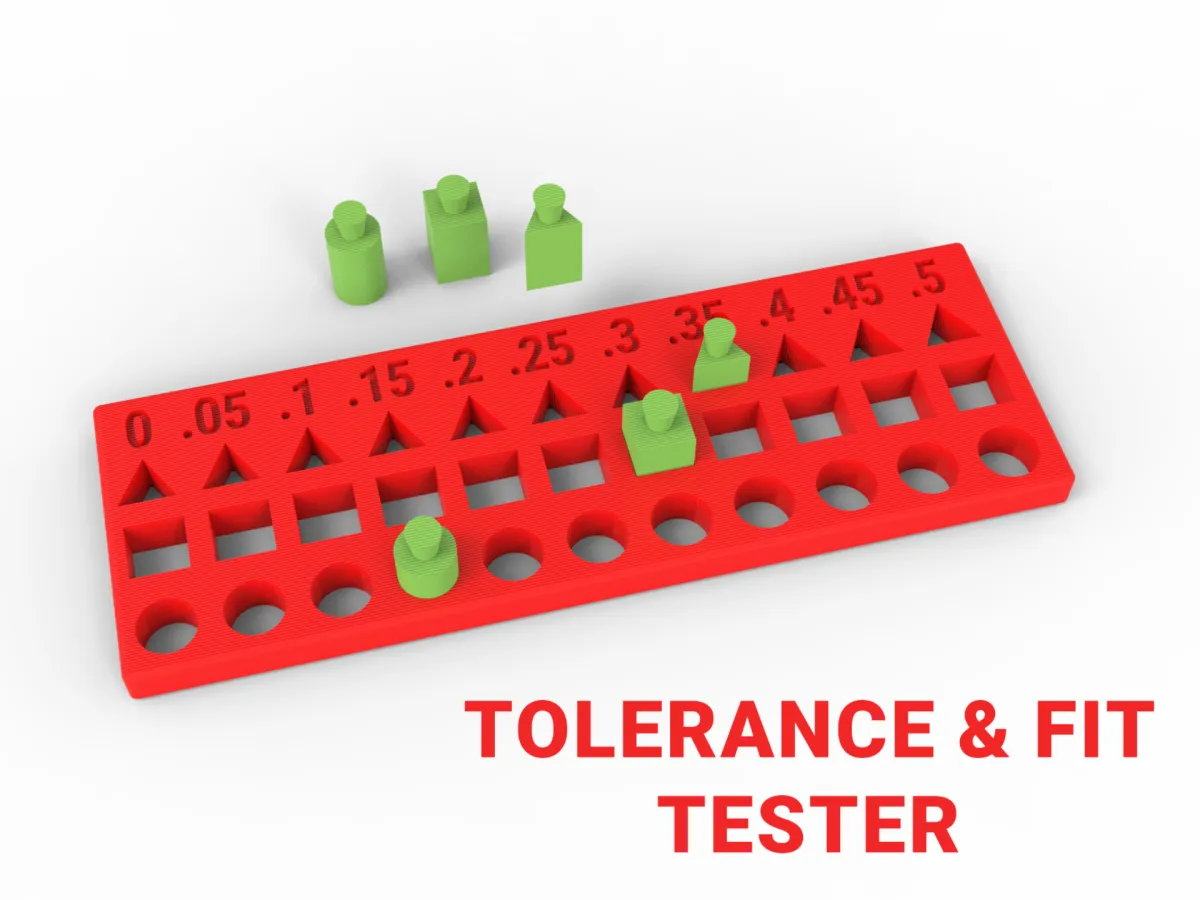

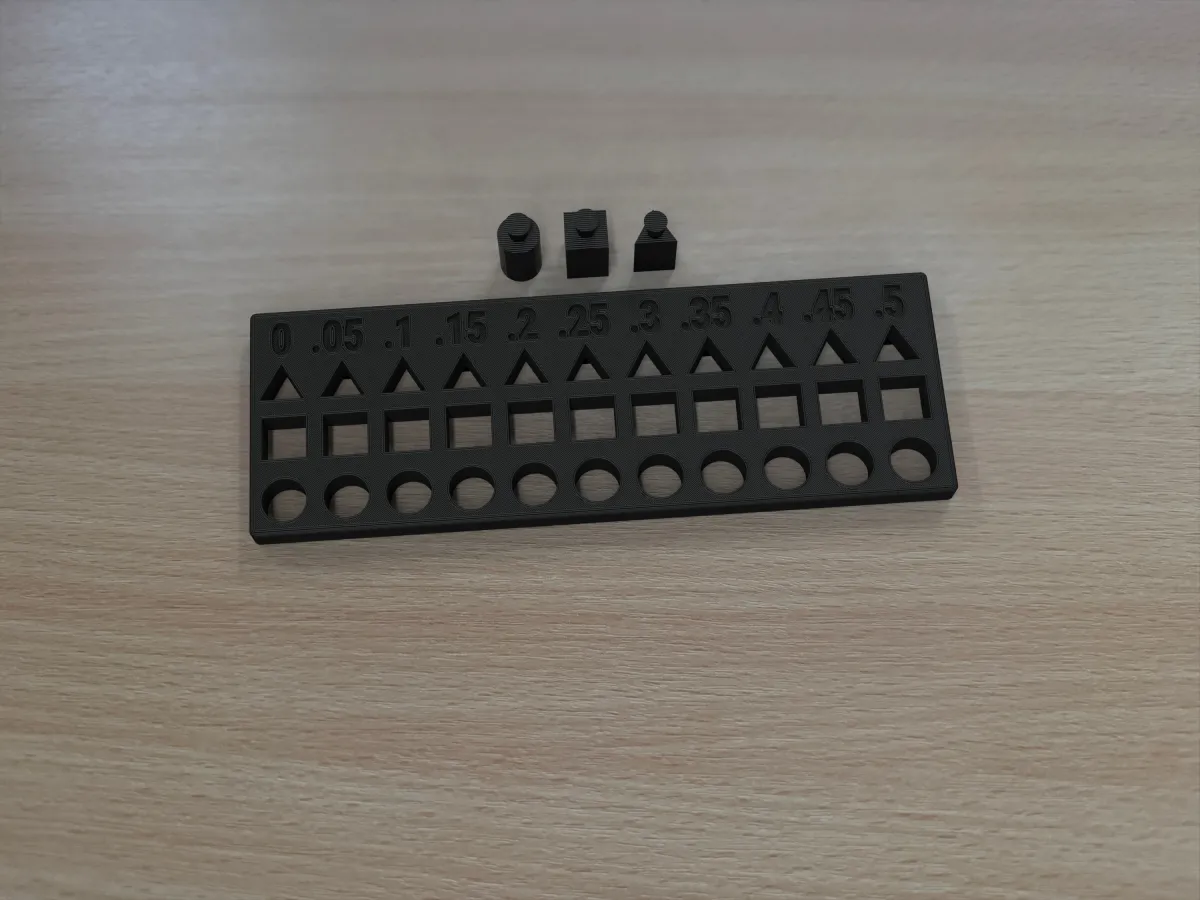

A simple and handy 3D print tolerance tester to check the fit and clearance between parts. This tool includes three shapes – circle, square, and triangle, all with a 10mm base size. Each shape features a range of tolerances from 0mm to 0.5mm, in 0.05mm steps (0 / 0.05 / 0.1 / ... / 0.5mm).

Perfect for calibrating your 3D printer or choosing the right fit for your designs, whether you're testing press fits, sliding fits, or loose tolerances.

Great tool for quick reference, especially if you work with various filament types or want to tune your printer’s dimensional accuracy.
