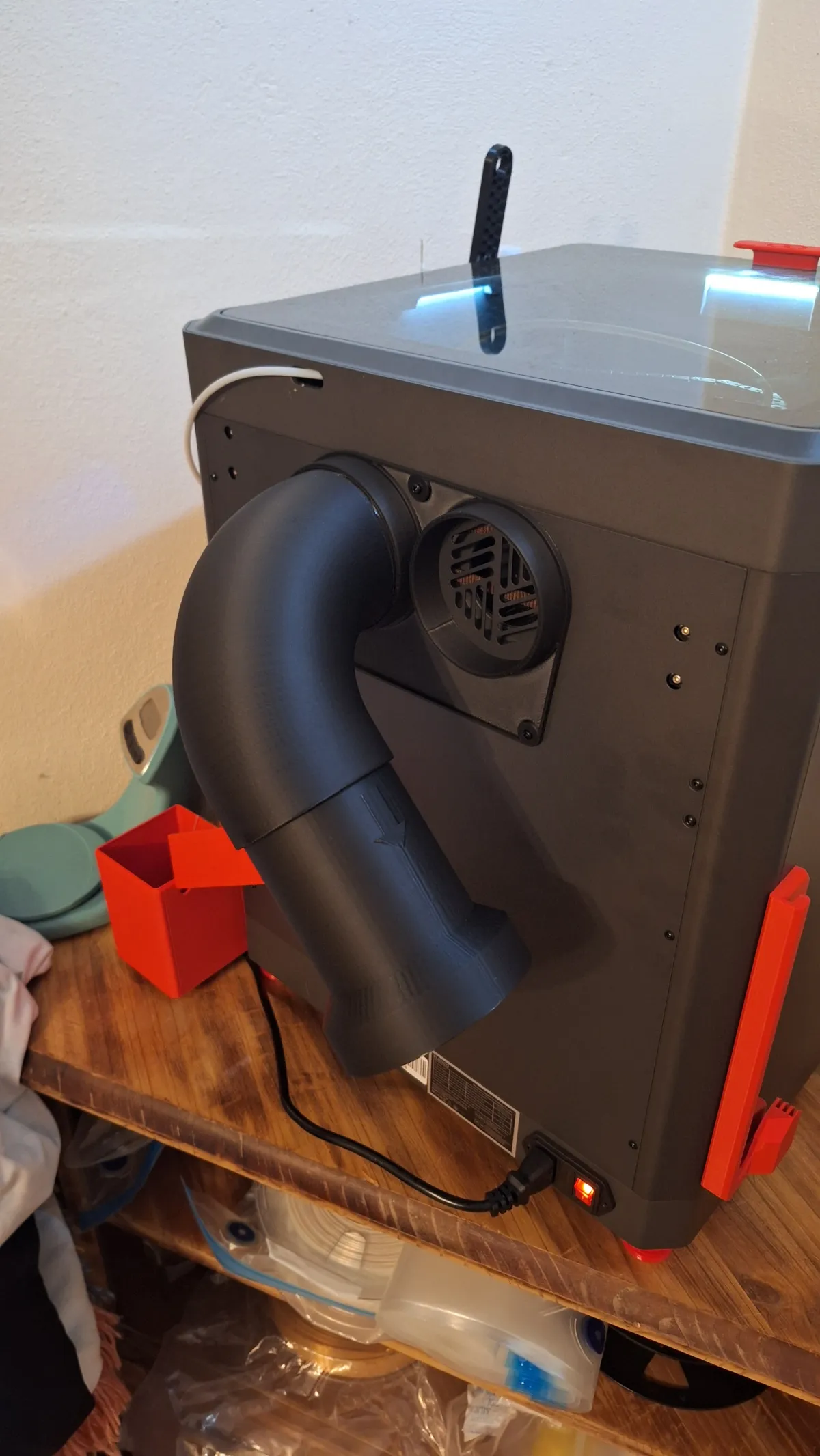

A set of ducting pieces for the Elegoo Centauri Carbon. Allows the silencing of fans and allows connection of ducting for external venting. Pieces are pushfit.

Muffler drops case fan sound level by up to 10dB at source.

Includes;

• manifold for attaching duct to the printer (will need 3 M3x6 bolts)

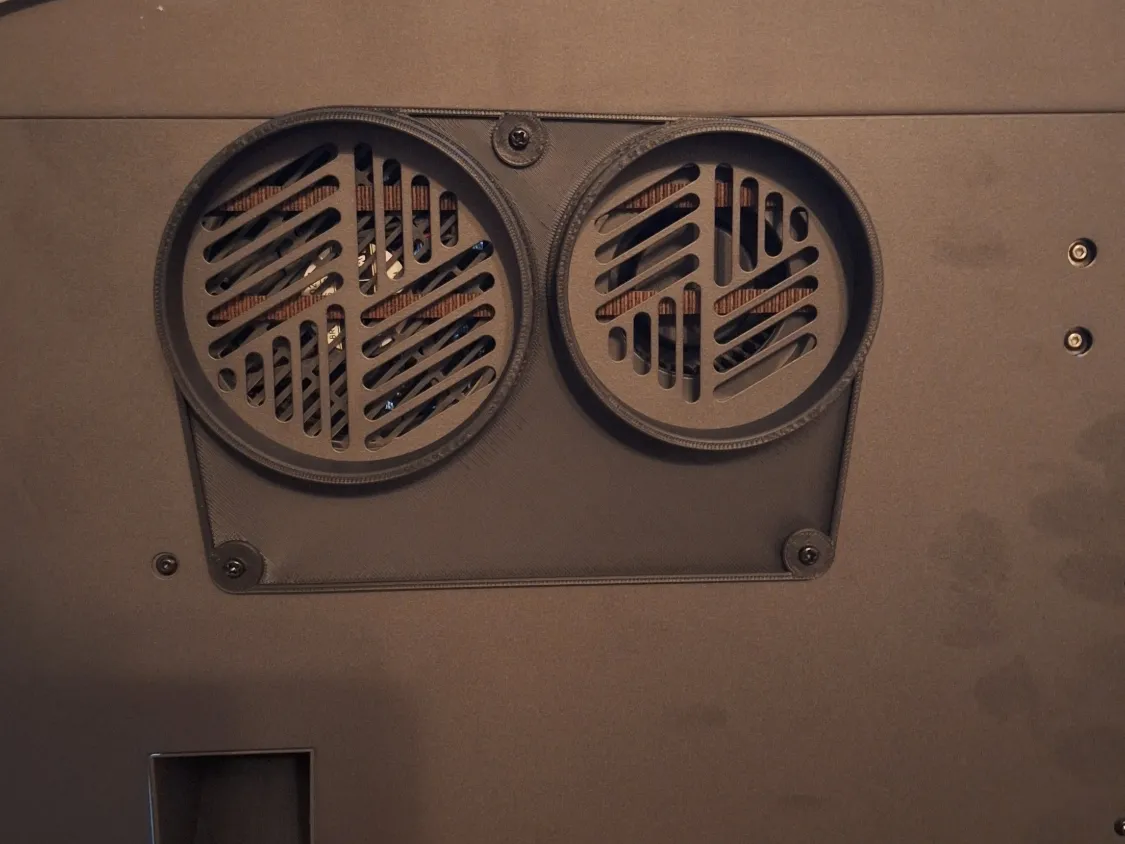

• muffler/silencer for the case and aux fans
  • case fan has two mufflers - one allows for joining to 100mm ducting, the other for silencing only
• 90 degree elbows for aux and case fans (for use with muffler if you want to vent up/down/side to side)
• sleeves for aux and case fan (for use with muffler if you wanted straight vents directly backwards)
• case fan adapter for use with 100mm ducting (no muffler)

Manifold should be printed with 4-5 walls to increase rigidity. Suggest printing elbows with supports as per image.

Find appropriate model for window outlet

Fits fairly snug but may require tape for ducting.
