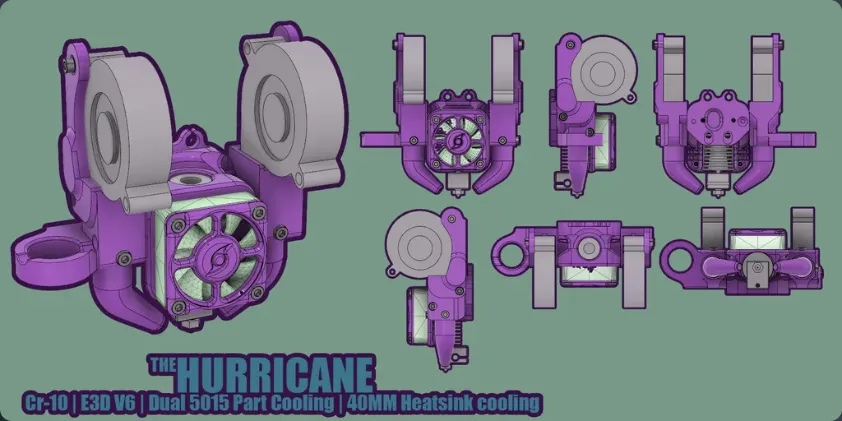

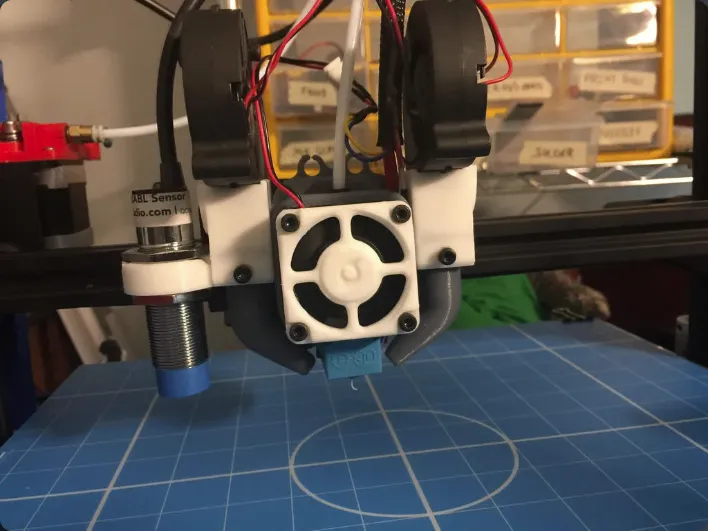

Fan duct for cr-10 made to work with e3d v6 and v6 with volcano (volcano not tested, but it should work)

Features
1:Adjustable Nozzles, can be moved up and down and rotated to give complete control over air direction. (after setting tighten a small set screw on the front to keep it from moving
2:takes 2 5015 blower fans
3: takes 40mm heatsink fan
4: supports sensor mount (i use the th3d ezab) Offset is x -56mm y -5mm

Future adjustments
1:more sensor types (bltouch / dial indicator)
2:more nozzle shapes
3: support for one blower fan

a variety of M3 screws are needed for instalation
3 for mounting to the backplate, roughtly 10mm long
2 for each blower mount, roughtly 5-10mm roughly
2 to attach fanmount to hotend mount, roughtly 10-15mm
4 to attach fan to fan mount, roughtly 15mm
2 to hold blower fans to mounts , around 20mm (with 2 nuts)
2 set screws to hold adjustable blowers in place, roughly 5mm
