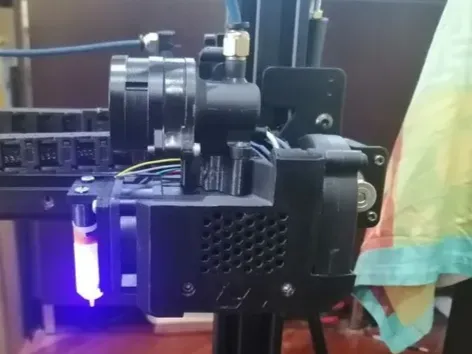

Anycubic Chiron - Orbiter+V6-Linear Rail-Direct Drive
Print Profile(1)
- 0.1mm layer, 4 walls, 15% infill
4-disc
PLA
Designer
3
1
Released 2025-07-15
Bill of materials:
- 1 unit Linear Rail L500 MGN12 ( block type C or type H)
- 1 unit Orbiter extruder 1.5 Right
- 1 unit V6 Volcano Clone ( I recommend mounting the original e3d )
- 1 unit Thermistor Cartridge
- 1 unit Heater Cartridge 24v
- 1 unit 5015 Fan layer 24v
- 1 unit 4010 Fan 24v
- 1.5 m Belt GT2 6mm
- Screw M3
3 units M3x30
12 units M3x6
2 units M3x16
3 units M3x20
15 units M3x8
- 5 units Nuts M3
- 11 units T- Nuts M3 linear rail
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
- Chiron_orbiter_v6.3mfDesigner
1.42 MB
2025-07-14
