It's been a long time since I updated the serious things in the rock universe. There is a model to accommodate the main body. Let's make one!

I 've always wanted to make a mecha Gnaku with interactive functions. Now, I 've made it directly for him!

At the same time, the rock universe added a new force-heavy light industrial body (Chongguang Industrial Consortium,CIC)

Do you think the name is weird? Because my family lives in Chongguang ~ ha ha ha ha ha ha ha

This platform is a product of Chongguang Industrial Body. I call him "Forge II" Super Interactive Platform!

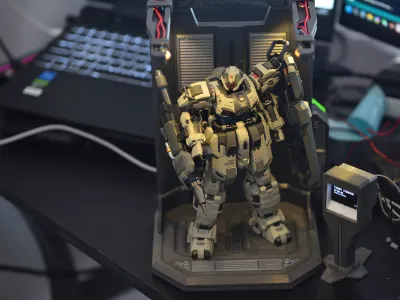

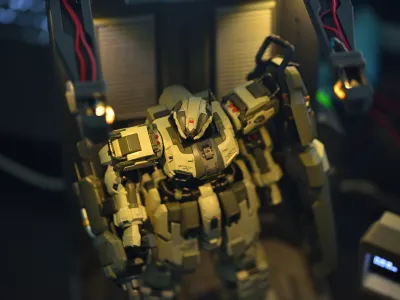

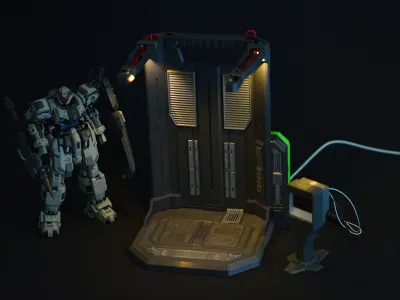

look! This is the effect:

• Rock Universe
• sci-fi military style
• Compare Consumable (400g) but relatively short print time (14 hours)
• Support removal is less difficult
• No need for multicolor printing

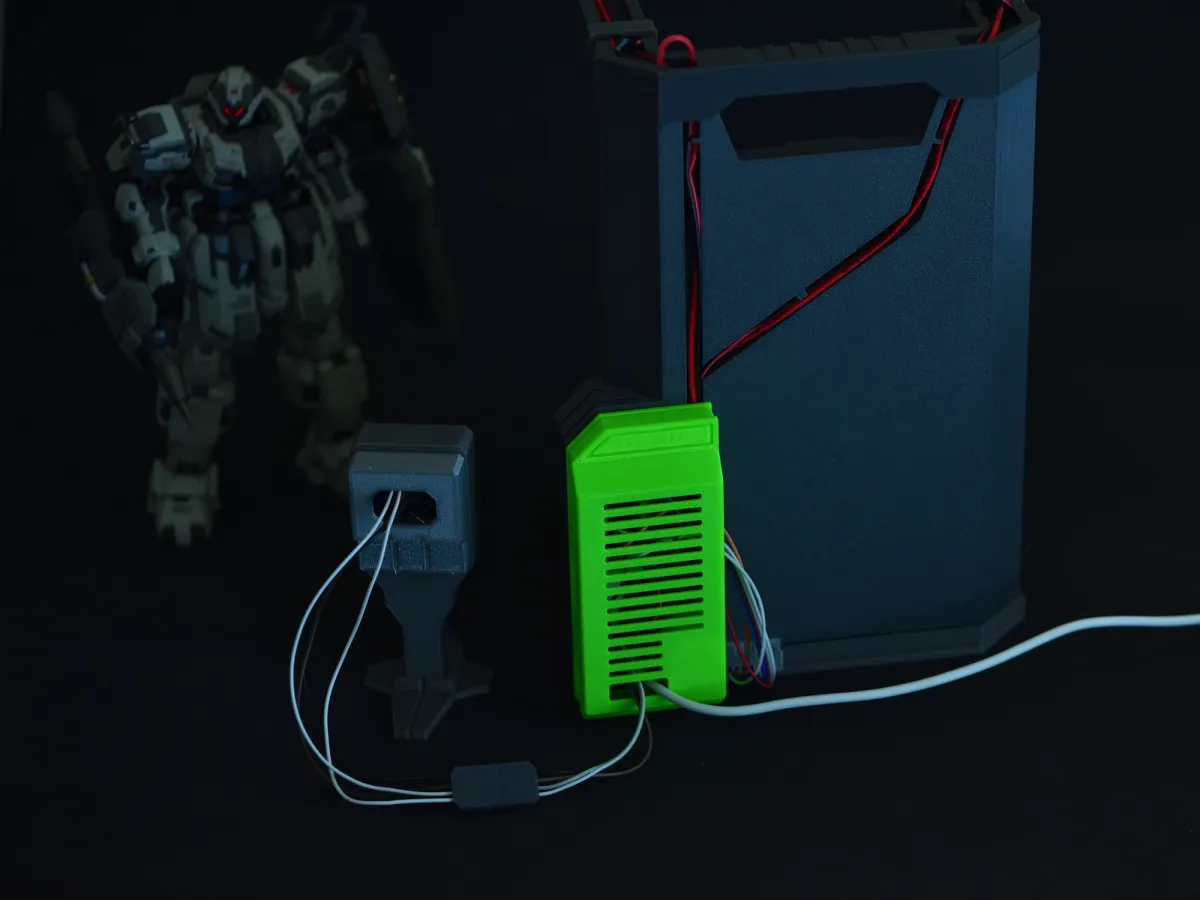

• The biggest challenge lies in the wiring arrangement. Although the wiring slot has been reserved behind the wall, the length of the wiring harness still directly determines your blood pressure (ha, ha, ha, ha, ha, ha, of course, except for the operation behind the direct placement of the broken style and the random placement)
• main effect and principle
  • Principle: through NFC near field communication identification NTAG215 chip to identify objects
  • Effect: When the mecha is standing on the platform RFID tag

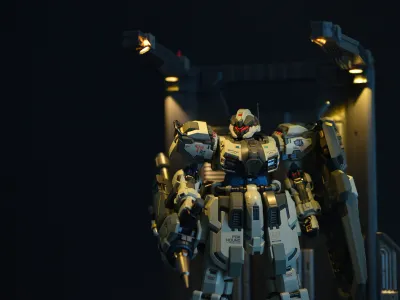

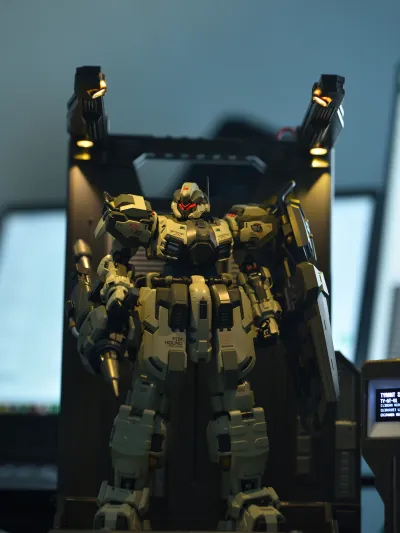

    • The overhead lamp breaths for 3 times, then enters the constant light for 30 seconds, and then goes out to save energy

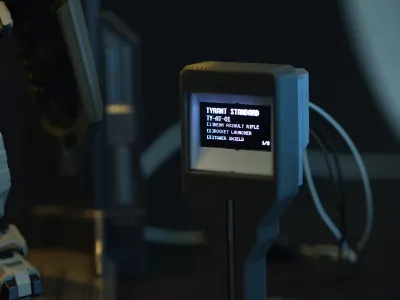

    • The terminal next to it displays the mecha name/number/main weapon while the breathing light is always on (at present, I have preset the tyrant standard/melee/broken array information of MOSHOW. If you need help, please feel free to ask me, and I can help you write the information of your favorite mecha)
• Non-printing material information:
  • ESP32-C3 Development Board
  • 1 1.3 inch SH1106 OLED screen
  • 1 RC522 standard NFC identification module (not mini, but larger)
  • NTAG215 type NFC chip several (used to attach to the bottom of the mecha for RC522 identification)
  • 4 5mm straw hat LED lights
  • 4 220 ohm current limiting resistors
  • 1 1000 ohm current limiting resistor
  • 1 S8050 triode
  • DuPont Line Number
• Code part: see [Document 1-Code part] for details]
• Wiring scheme: see [Document 2-Wiring Scheme] for details]
• [2025.7.3 Update]: Netizens strongly demand a version of A1mini. In that line, I made the wall surface segmented and added 4 tenons +1 intermediate layer transition. However, due to the steel plate size problem, I had to let him print vertically (the effect is theoretically better, but it takes a lot of time) ~ ~ Only in this way can the original appearance be preserved to the greatest extent. I hope you like it!

• -- Brief assembly instructions --

-- Background Information/Mechanical Settings --

in the rock universe, peak power (SD) almost monopolizes the market. A group of people from the heavy light area of the earth, because of dissatisfaction with the monopoly status quo of peak power, decided to unite. They integrated their small companies and formed a small organization, the Chongguang Industrial Consortium (CIC).

team members were originally scattered in different fields, responsible for the research and development and production of various components, including energy supply, mechanical calibration, equipment manufacturing, etc. After the merger, CIC focused on building supporting equipment for other manufacturers by virtue of the members' expertise in their respective fields. Among them, the "forging furnace" preparation platform is their representative product. Although it has attracted some customers due to its cost advantage, compared with its deep-rooted peak power, CIC still has a wide gap in market share and is still striving to open up its own world in the fierce market competition.

Tu Wei 12 was originally a manned manufacturing platform, but now it has been expanded into a standard industrial colonial star.

Ring rail city "Heyu ring" lower layer, is the most easy to accumulate ash place, but also the star of the industrial front-line operations core.

In the 74th preparation point, the only CP-01-FORGE forge-type preparation table has just reported its third error crash.
, Wu Zhe snapped on the processor interface, wiped his face with sweat and dust, and said in
as calm a voice as possible, "Let's wait a little longer and just give the boss a message tomorrow saying: The machine armor is learning how to repair itself, and it is estimated that next week it will be' recover'!"

Lin Qi sat on the maintenance rack, frowning at the hanging rail on the 2.9-meter body-a geological cutting task of light multi-legged mecha.

"I think I can properly rescue..." This has not been shut down the mecha said.
, Wu Zhe ignored him and turned to ask, "Have you contacted CIC?"

"contacted ten days ago. Logistics wrote "ready to leave the warehouse", but now it may not even cut the packaging foam."

The atmosphere was stagnating, and a low roar interrupted them.

From the west side of the material channel into a magnetic suspension chassis of heavy ground transport vehicle, gray blue and warning orange body mottled, power warehouse issued overload after the low frequency trembling.
The body side plate is clearly visible: Chenlu-C9 ground-borne transport vehicle CIC (Chongguang Industrial Body Tuwei 12 Logistics Center)

it slowly docks at the edge of the preparation area. Clearly just to send a spare parts, but like shipped half an arsenal.

the cockpit door was thrown open, a sweaty little girl with a low ponytail jumped down: "Hello! Xingrong Industry's 74th, right? "

she squinted at the nameplate under the workbench, "Wu Zhe... Lin Qi? Great, that's right."

"My name is Liang Yu ,CIC material support personnel. This is the first time I have been sent to take the ground line."
, she patted her shoulder on the work mark and gasped: "Your repair parts are not heavy, but this bus has been temporarily transferred to pull other things-I'll take your share on the way."

Wu Zhe frowned and looked at her hand with a neat package of standard parts-as long as the normal delivery, this thing a mechanic can carry run three floors.

"We 've been pushing for ten days, that's all? Still driving a ground tank? "

"I also want to carry it." Liang Yu smiled and handed the bag of accessories to Lin Qi while pointing to the tail of the transport vehicle behind him with his elbow: "But how about you help me deliver this thing?"

The two followed her fingers.

It is a height of about 3.75 meters, width of 2.5 meters, depth of at least 2.1 meters of giant package, close to the transport vehicle bottom compartment lock frame.

The silver gray flat structure line is just under the military regulations grinding line, reflecting a little does not belong to the civil standard of accuracy.

When the light is scanned, the number is disclosed on the sideline of the vehicle compartment: CP-02-FORGE / MK2

Before Wu Zhe could speak, Lin Qi patted a badge on the edge of the sealed cabin: it was a silver-blue six-man shield emblem with "Strategic Naval Research Institute" engraved in the center.

She whispered: "Naval Strategic Research Institute..."

Liang Yu did not respond positively, but gently closed the automatic padlock at the rear of the car: "I am not in charge, nor are you. In the official definition, it is called "non-detachable test module" and unpacking is not allowed on the transportation road."

She paused and said, "it's just a trip along the way. It doesn't belong to you. It's a commissioned R & D product. It's not expected to be put on the market for the time being."

"This number… is that… a new forge?" Wu Zhe said aloud.

Liang Yu shook his head toward them, but did not answer directly: "You can call him Forge Type II, whose parameters are much stronger than yours. As an emergency preparation platform, it can be used for specialized rapid repair, system restart, power injection, automatic cabin bridge linkage... Anyway, there are too many to say, and I don't know."

she laughed, "Sounds fierce, doesn't it? Under full conditions, even rock mecha with 0 energy can be filled with it."

Wu Zhe Lin Qi felt a shudder.

Liang Yu shrugged his shoulders and turned to the hatch of Chen Lu-C9: "All right! Don't think about it, I'm leaving, goodbye ~!"

The transport vehicle started, the magnetic suspension rail floating light swept over the ground undulating preparation line, and gradually drove into the gray platform end.
the FORGE preparation table finally reissued a soft mechanical running sound.

Lin Qi whispered: "Maybe it will be popular."

Wu Zhe looked at the closed box and replied: "But in front of it, we have to survive the next outage.
