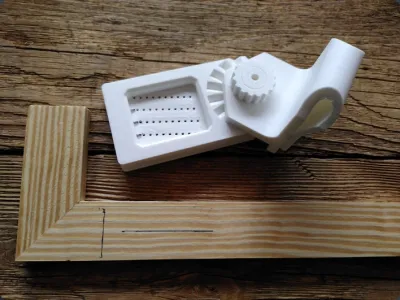

A multi-function woodworking tool (for left and right handed)

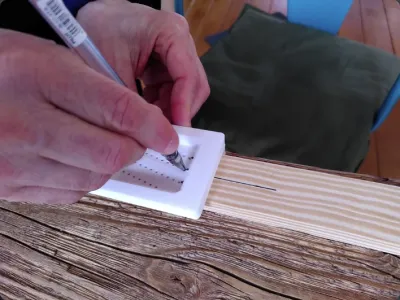

• scribing ruler

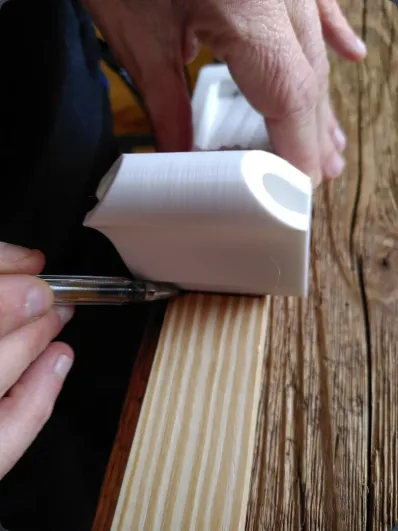

• 22.5, 45, 67.5 and 90 degree square

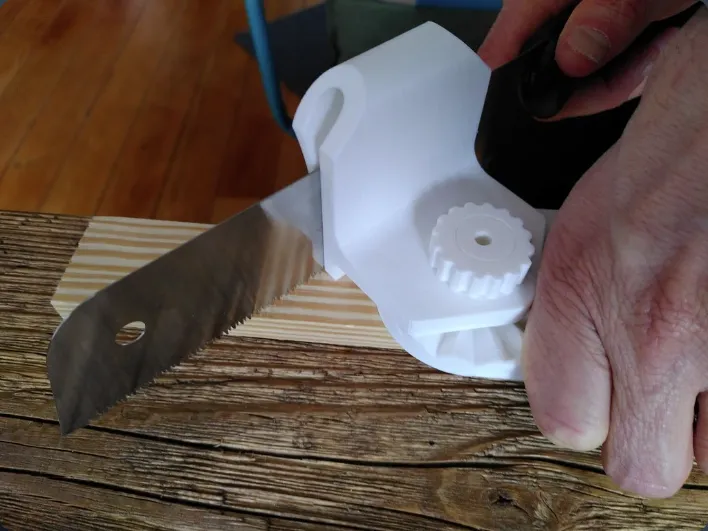

• saw guide for cutting at 22.5, 45, 67.5 and 90 degrees

The saw guide is particularly suitable for Japanese saws (kataba style for example).

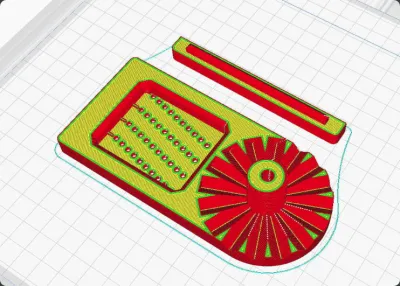

There are four parts to print

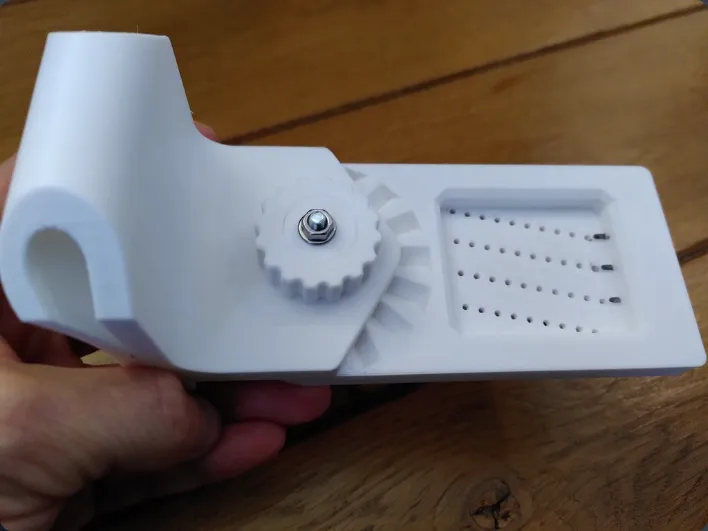

1 The main body with the ruler (support needed under the thread)
The thread can be reinforced with a M5 screw of at least 35 mm if necessary. You can also increase infill percent in the thread.

2 The ruler which can be glued under the body (position according to left/right hand) without support

3 The nut without support

4 The saw guide with a support at the hole.
There are two saw guides provided.
One for blades under 50 mm and one for blades under 70 mm. Choose according to your saw.
