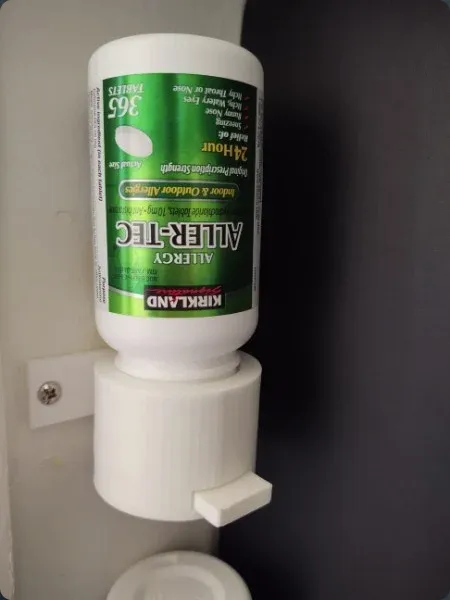

Dispense a single pill into your hand with the push of a button rather than unscrewing the lid each time. The three components are each individually printed and assembled using two small screws. The push button operates with a spring harvested from any standard writing pen. The pill bottle is pressure fitted onto the pill hopper. Screw threads were omitted to provide versatility between different bottles. However, I fully support anyone modifying the design to include a threaded orifice. This design works best with smaller oblong or oval shaped pills with a hard outer coating such as those used for allergy medications. I've found that round pills with a matted surface such as standard Ibuprofen don't slide around each other easily and tend to clog the bottom mechanism. If a pill doesn't dispense after two pushes, a simple tap on the side of the bottle allows compacted pills to loosen and drop to the bottom.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
prometheus89

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • Base_Plate_-_Push_Button_Pill_Dispenser.stl

    59.26 KB

    2025-07-01

  • Hopper_-_Push_Button_Pill_Dispenser.stl

    102.72 KB

    2025-07-01

  • Button_-_Push_Button_Pill_Dispenser.stl

    201.84 KB

    2025-07-01
