IKEA hinge jig
Print Profile(0)

  • Earn points by adding print configurations

0

0

6

1

Released 2025-07-25
Details
Files(2)
Makes & Comments (0)

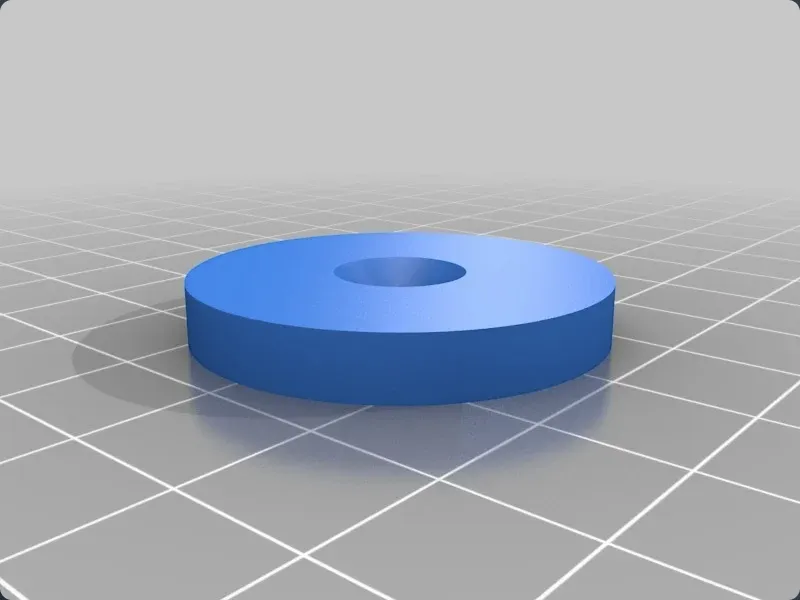

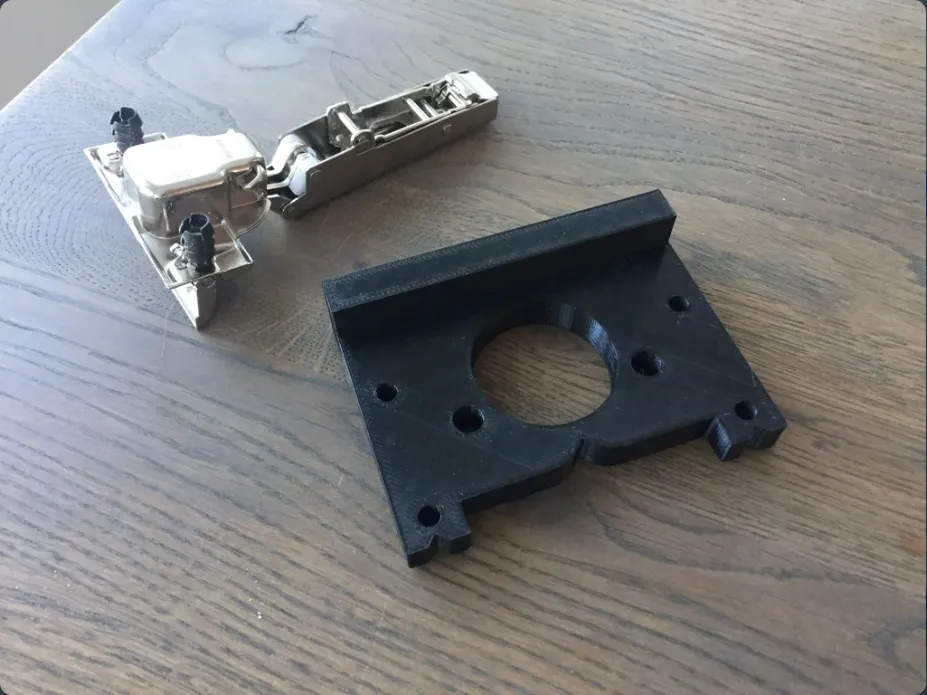

This is a drill jig for a IKEA hinge. The three holes in the middle is for the door part. The two outer holes on each side are for the frame part.The wedge is for alignment (draw a line on the frame/door and align it in the wedge). The center.stl will fit the big hole and let you mark the center.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
jorgenp
Reprint source:https://www.thingiverse.com/thing:2828243

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • Center.stl

    75.77 KB

    2025-06-30

  • IKEA_hinge_jig_v1.stl

    359.75 KB

    2025-06-30
