Created for device: OSRAM LEDguardian® ROAD FLARE Signal V16

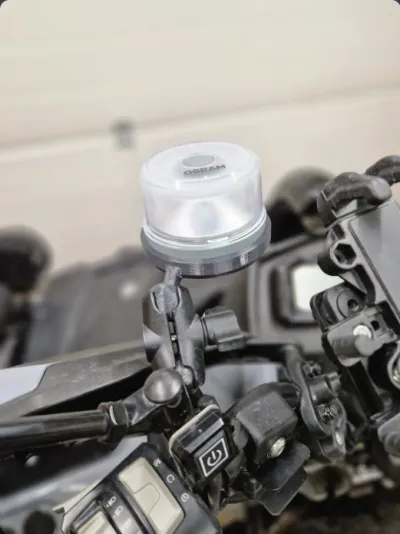

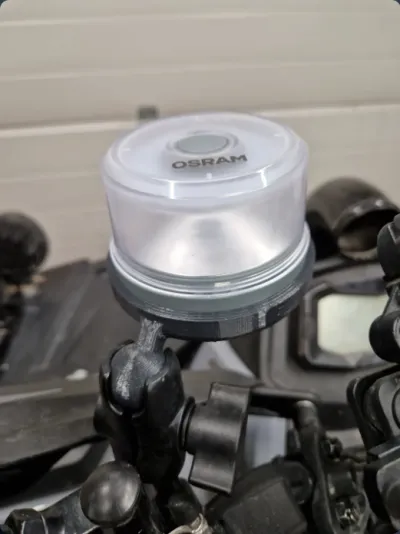

Magnes installed in the Osram device is not strong enough to be sure that it won't fall off during the ride - especially when mounted on ATV/SSV/UTV, a tractor, motorcycle or any other automobile.

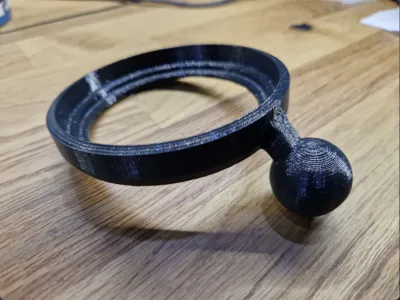

It works nice with RAM mounts and its replicas (ball size: 1 inch).

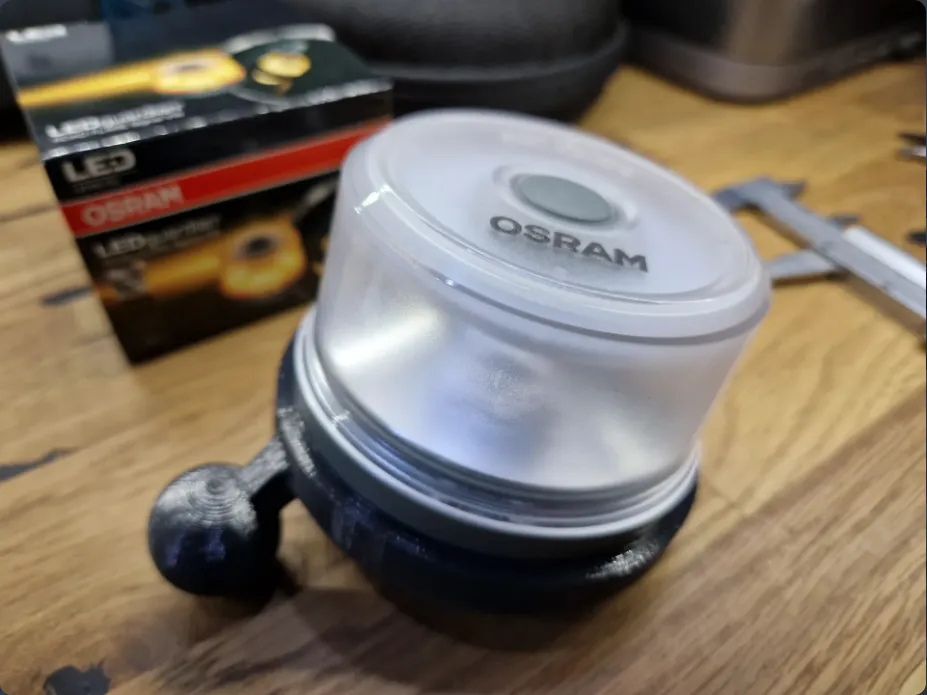

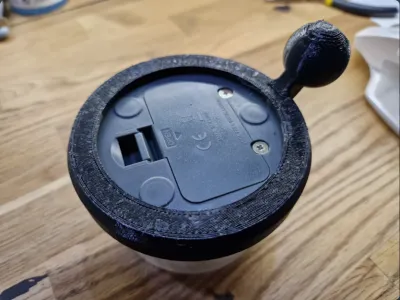

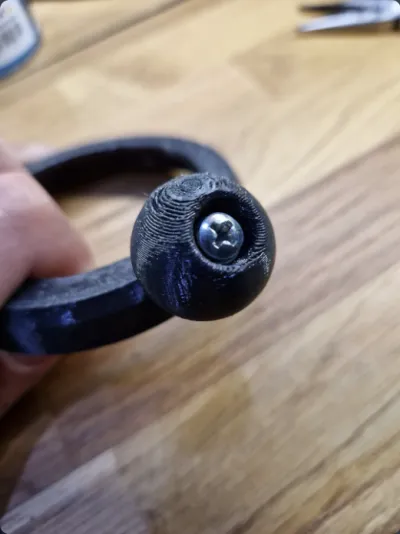

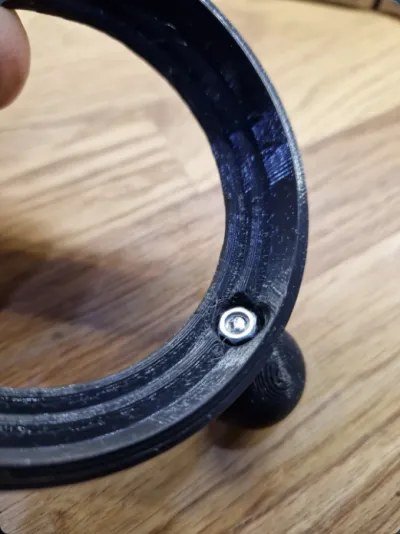

The mount was prepared to be enforced by a 30 mm bolt. Light needs to be glued on a silicone or any other adhesive to the holder - but thanks to the cut out on the bottom you'll still have access to the battery.

Supports: build plate only
Infill: about 30%
Material: PET-G or stronger
Vertical shells / perimeters: 3
Layer height: up to 0.33 mm

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
qdzr

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

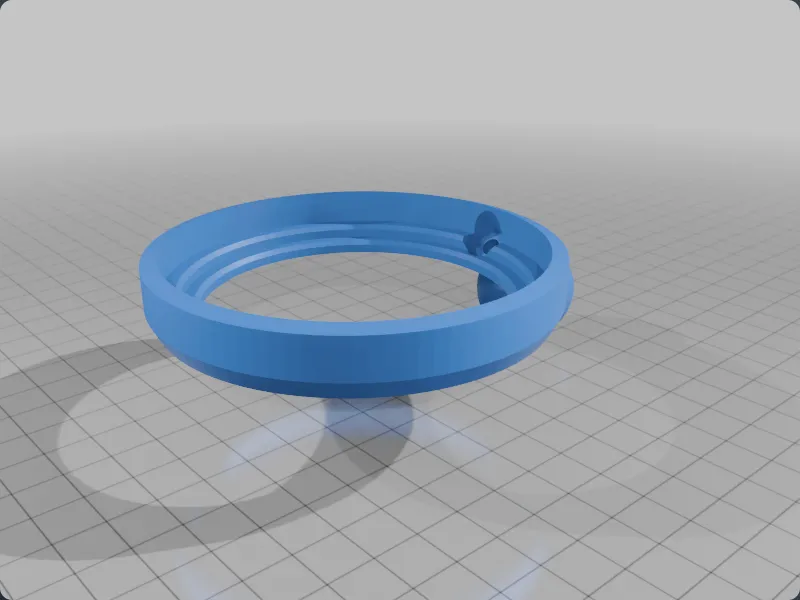

  • osram_beacon_holder_v1.stl

    301.25 KB
