● Function Description:

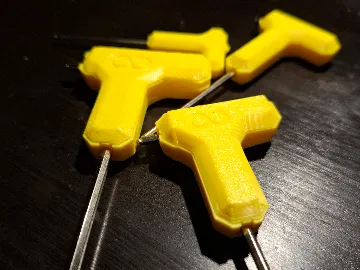

This is a snap-fit handle tool designed for commonly used hex (Allen) keys. Featuring a modular structure, it supports multiple hex key sizes and greatly improves grip comfort and handling efficiency.

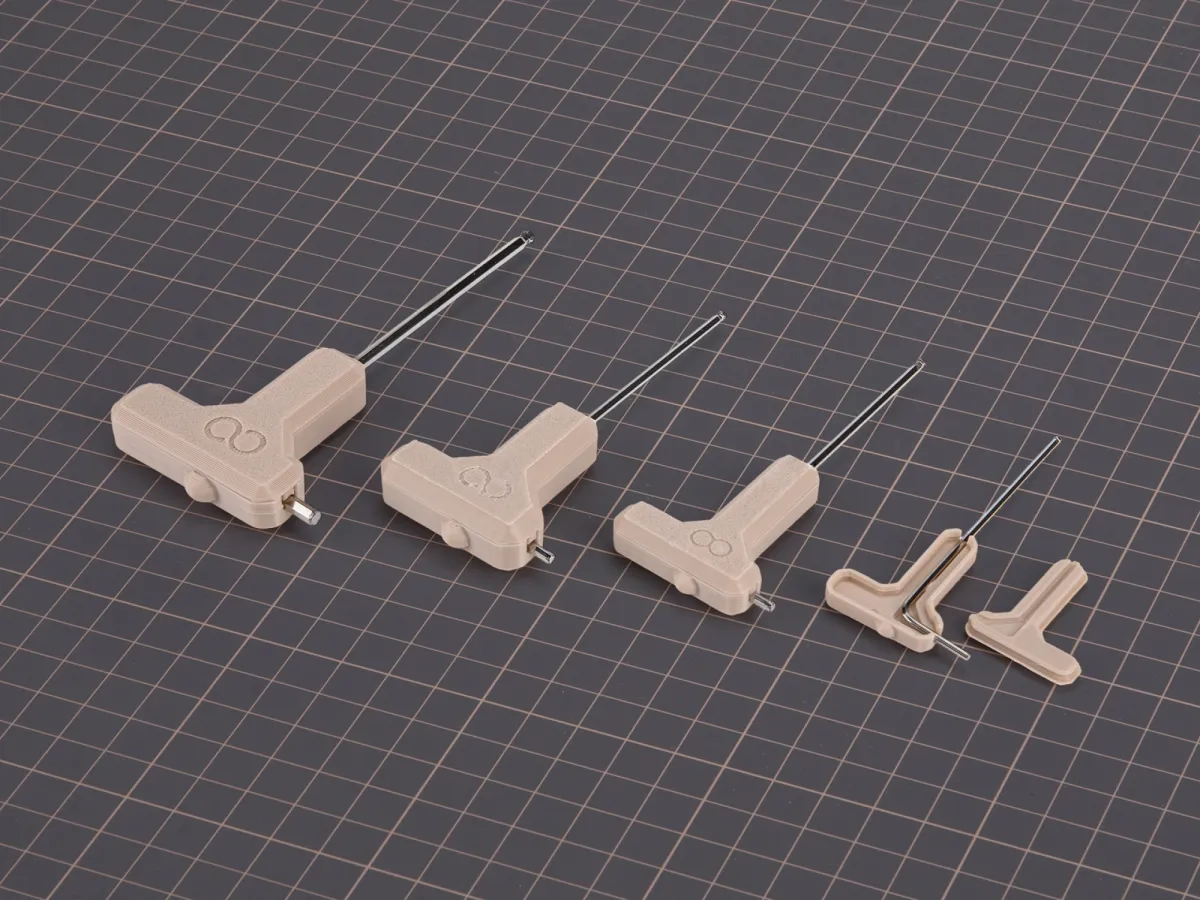

With a simple snap-fit mechanism, metal hex keys can be securely locked into the 3D printed handle without screws. It is compatible with hex keys ranging from 1.5mm to 4mm. Various handle sizes are available to suit different torque needs and ergonomic preferences — especially ideal for 3D printer assembly and maintenance.

● Printing Instructions:

Print Type: Single-piece print

Supports Required: None

Recommended Filament: PLA, PLA Plus, or PETG

Recommended Layer Height: 0.2mm

Print Tip: Use a higher infill percentage (>30%) for increased structural strength

● Installation:

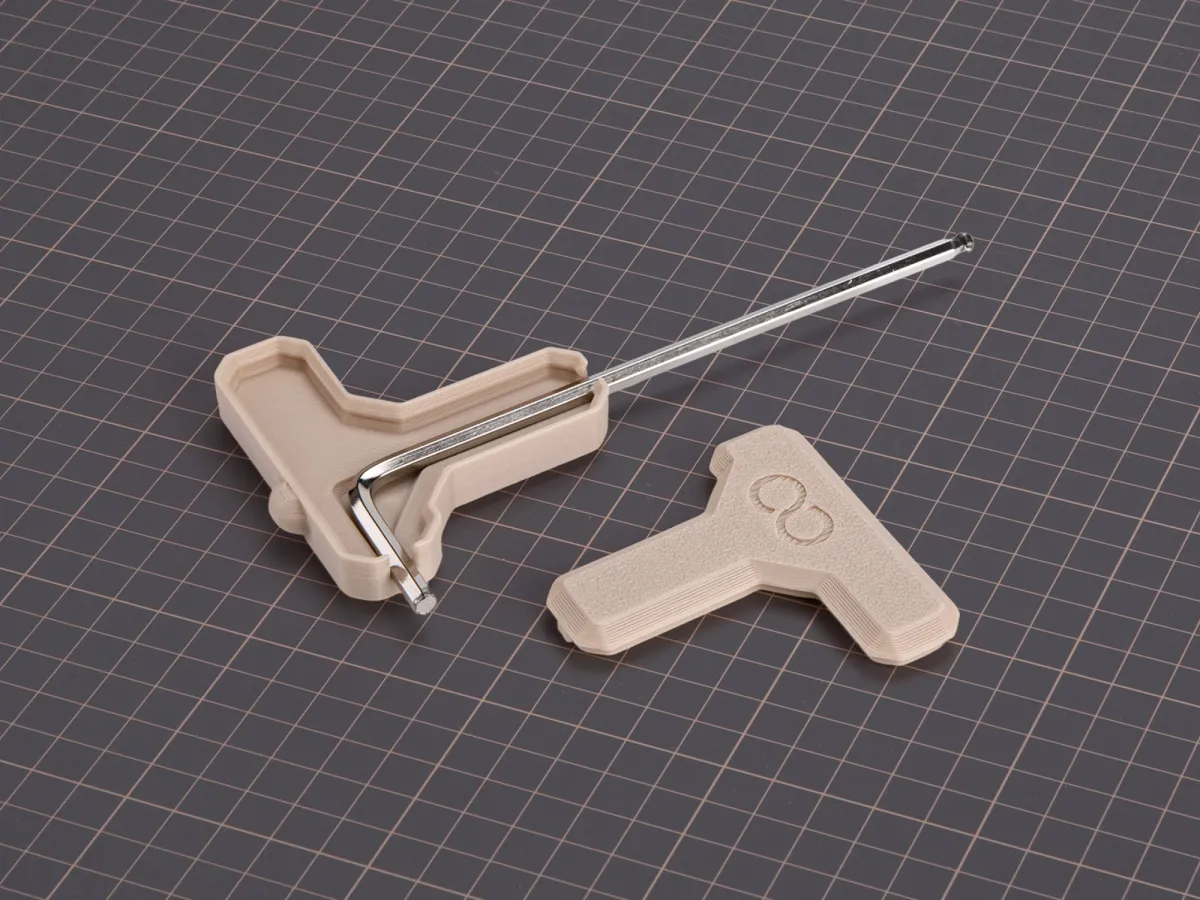

Insert the hex key into the designated hole, then press down lightly to snap it in place. To remove, gently push the locking tab — quick and tool-free.

● Usage Tips:

Choose handle sizes according to the tool size and intended usage scenario. Printing in different filament colors is recommended for easy identification and categorization.

● Application Scenarios:

3D printer assembly and maintenance

Household appliance repair

Precision equipment adjustments

DIY ergonomic handle enhancements
