BTT ADXL Mini Stealth Burner
Print Profile(1)
  • BTT ADXL - ABS

    1-disc

    ABS

    Designer

1

1

7

1

Released 2025-05-27
Details
Files(2)
Makes & Comments (0)

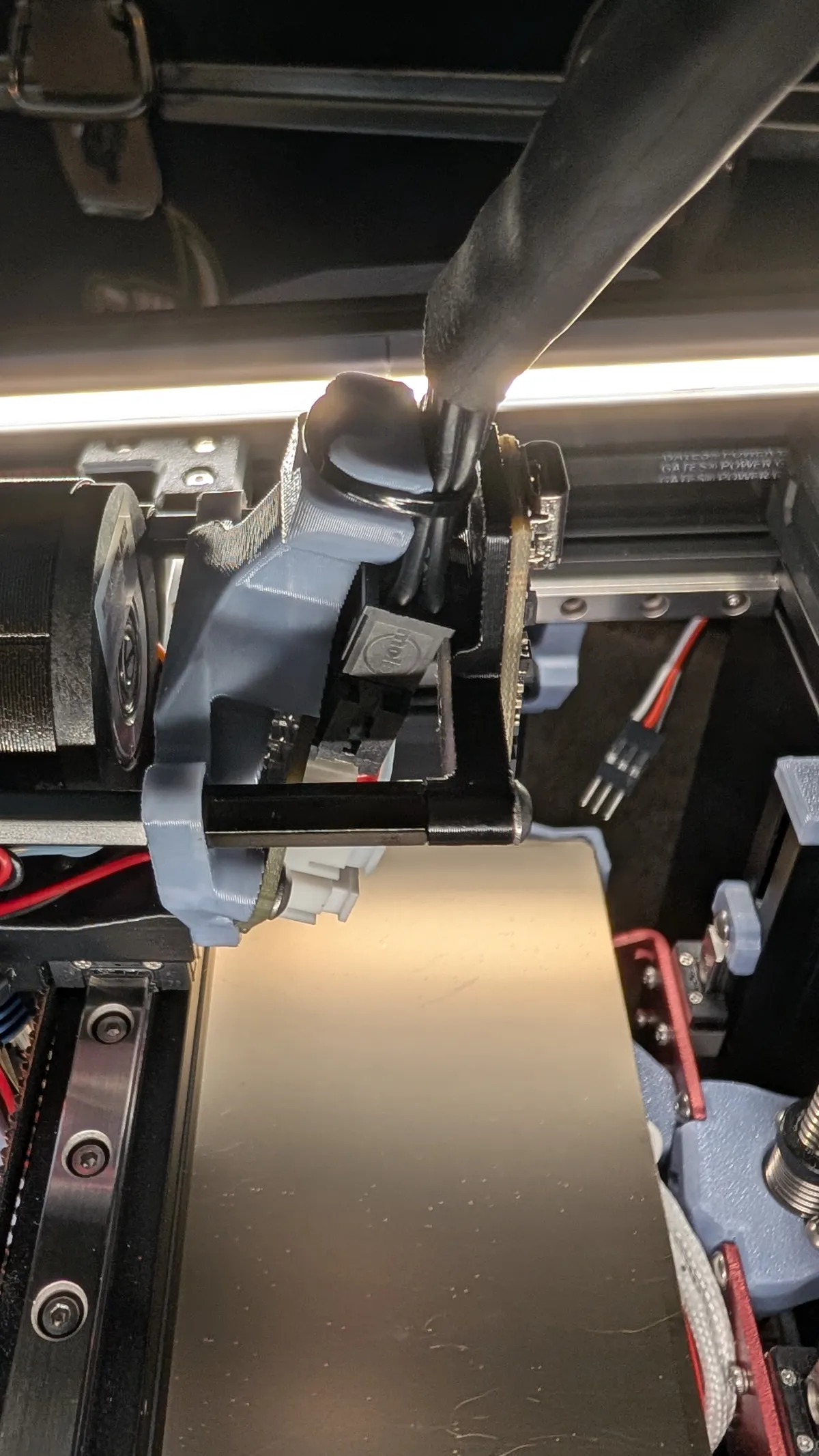

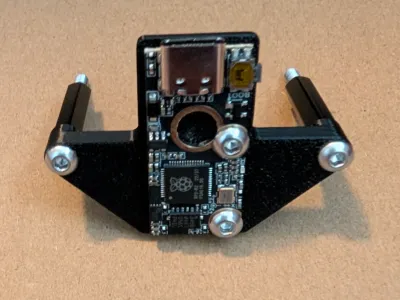

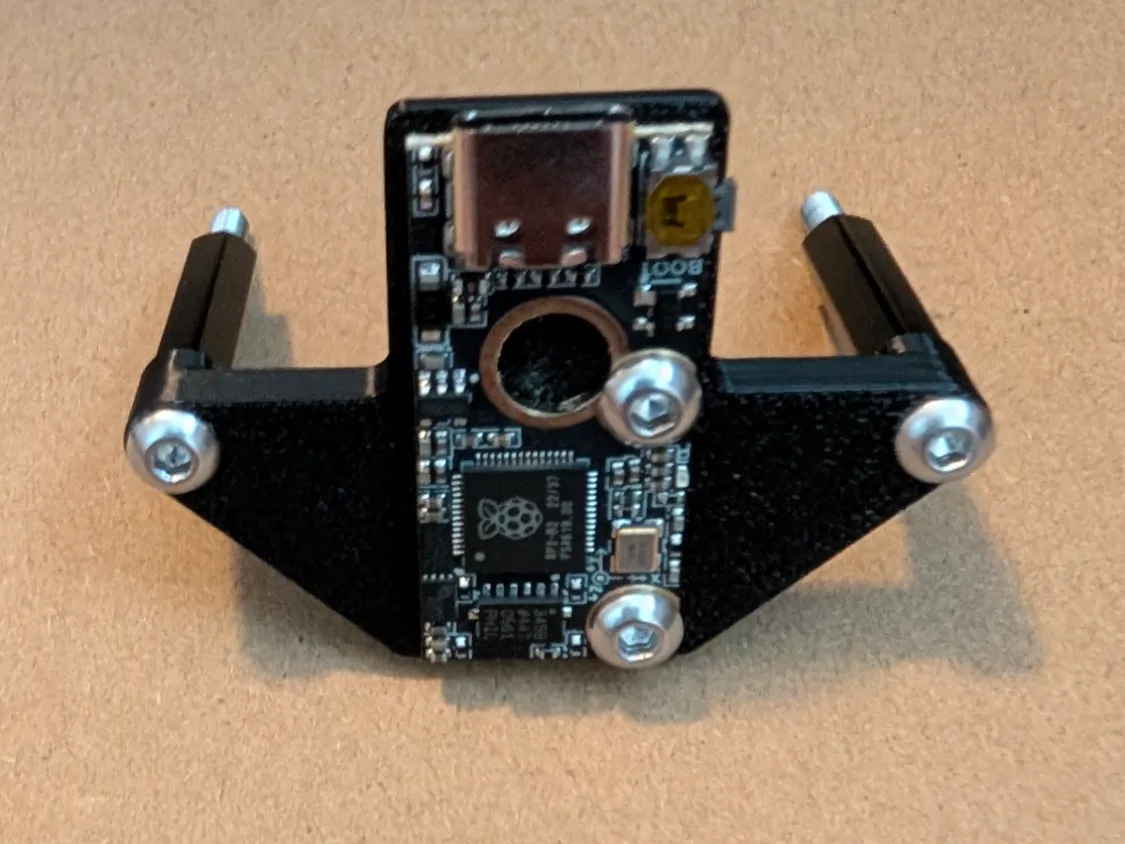

ADXL mount for the BTT ADXL and Voron mini stealth burner. Uses 2 20mm standoffs and some hardware that I had left over from the build and attaches to the back of the print head. Axis mapping: x, y,-z.



Tested and working with the strain relief found here: https://www.printables.com/model/620904-voron-v02-r1-umbilical-strain-relief-super-light.



If you don't have any extra standoffs you can print some here: https://www.nexprint.com/models/1927483106798526464



Required Hardware

  • 2x M3x5x4 Heat set inserts (Voron spec)
  • 2x 20mm Spacers
  • 2x M3x8mm Screws
  • 2x M3x35mm Screws

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    See Description
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
