Description

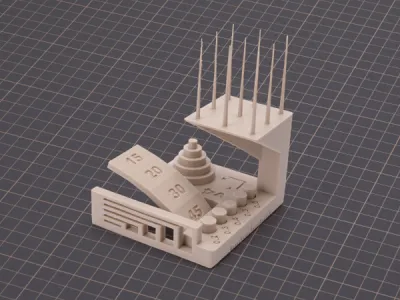

The model can test accuracy, overhangs, retraction and bridge effects, etc.

Print time: 2h8m

Total filament: 60.98 g

Applicable to all ELEGOO filaments.

Functions

• Retraction test. Thin columns on the right side of the model are used to test the strings.

• Accuracy test. Stacked cylinders are used to measure printing accuracy. The diameter of each cylinder has a specific value. Measure the dimensions of printed model to check for consistency with the model file.

• Overhang. The overhang in the middle part is used to test the printer's ability to deal with overhang, with the angles of 15°, 20°, 30° and 45°.

• Bridge. The bridge on the far left side of the model test the printing effects of filaments extruded in the air.

• Tolerance test: Cylindrical holes on the front side of the model test the printer's ability to handle gaps of different sizes. From left to right, the difference between the hole and the diameter of the cylinder is 0.2 mm, 0.3 mm, 0.4 mm and 0.5 mm.
