Arduino Mega 2560 Snug Case
Print Profile(0)
28
8
Released 2025-07-07

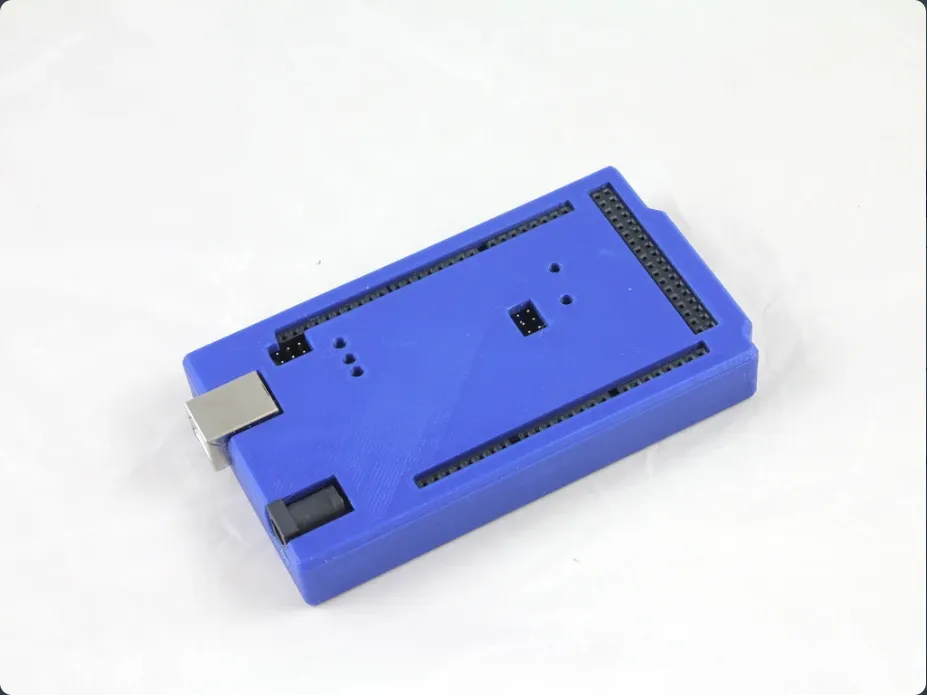

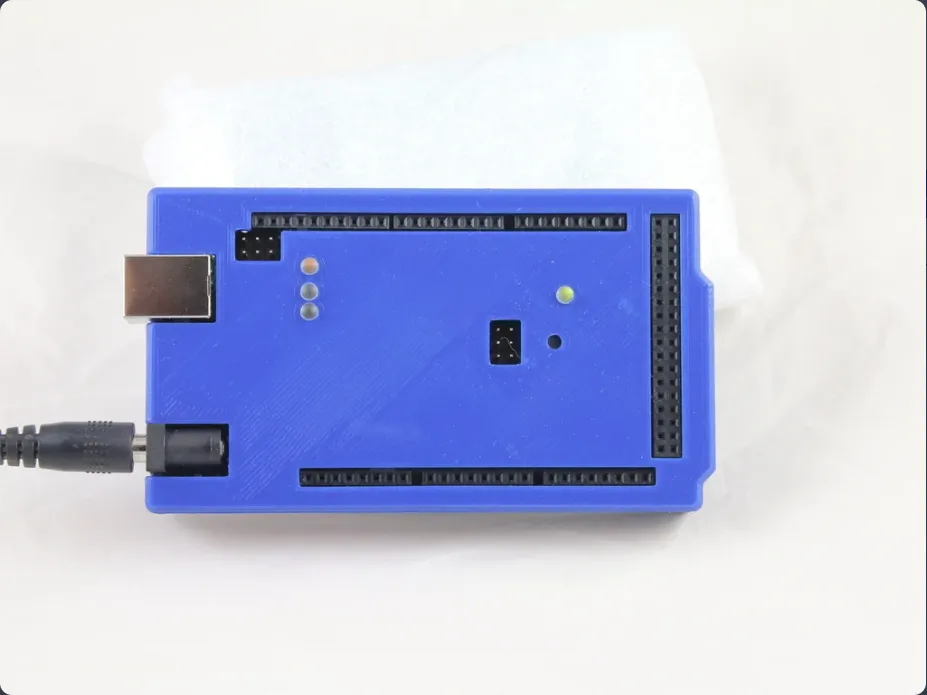

A snug fitting case for the Arduino Mega 2560 with screw board mounts and a snap top. Shields may be installed over the top of the case. There are four holes on the top to view the four LEDs on the Arduino board. These holes can accommodate Bivar PLP2-250 light pipes for a more polished look.
The screws for the Arduino board are #2 x 1/4" thread rolling screws.
This case was derived from my Arduino Uno Snug Case.
For the Raspberry Pi, see my Raspberry Pi Snug Case.
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
Esquilo
Reprint source:https://www.thingiverse.com/thing:1145811
This model is licensed under the following terms:
Credit must be given to the creator
Remixes must be shared under the same license
Models(2)
arduino_mega_bottom.stl
356.53 KB
2025-07-07
- arduino_mega_top.stl
230.84 KB
2025-07-07
