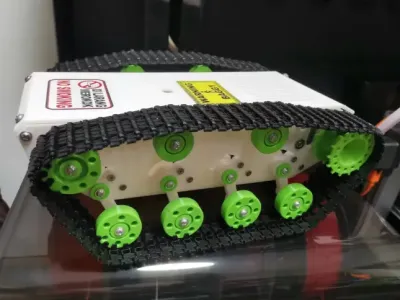

You will need two 370 geared DC motors with a shaft diameter of 7 mm and a speed that you can choose. The battery voltage should be between 7.4 and 12 V. For the shock-absorbing component, you can replace it with tension springs for better elasticity. You must also obtain the tank track plates shown in the diagram—make sure to buy the exact type depicted in the photo, as other versions may not be compatible. Additional required components are listed in the materials checklist. This is an original design; feel free to follow the Bilibili UP master “Meng Ye Gu Shou” for more information on track designs and other related content.













Bill of materials
- NameQuantityNotes
- 1螺丝20详情看说明文件
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(1)
双370减速电机动力履带底盘移动机构.3mfDesigner887.14 KB
