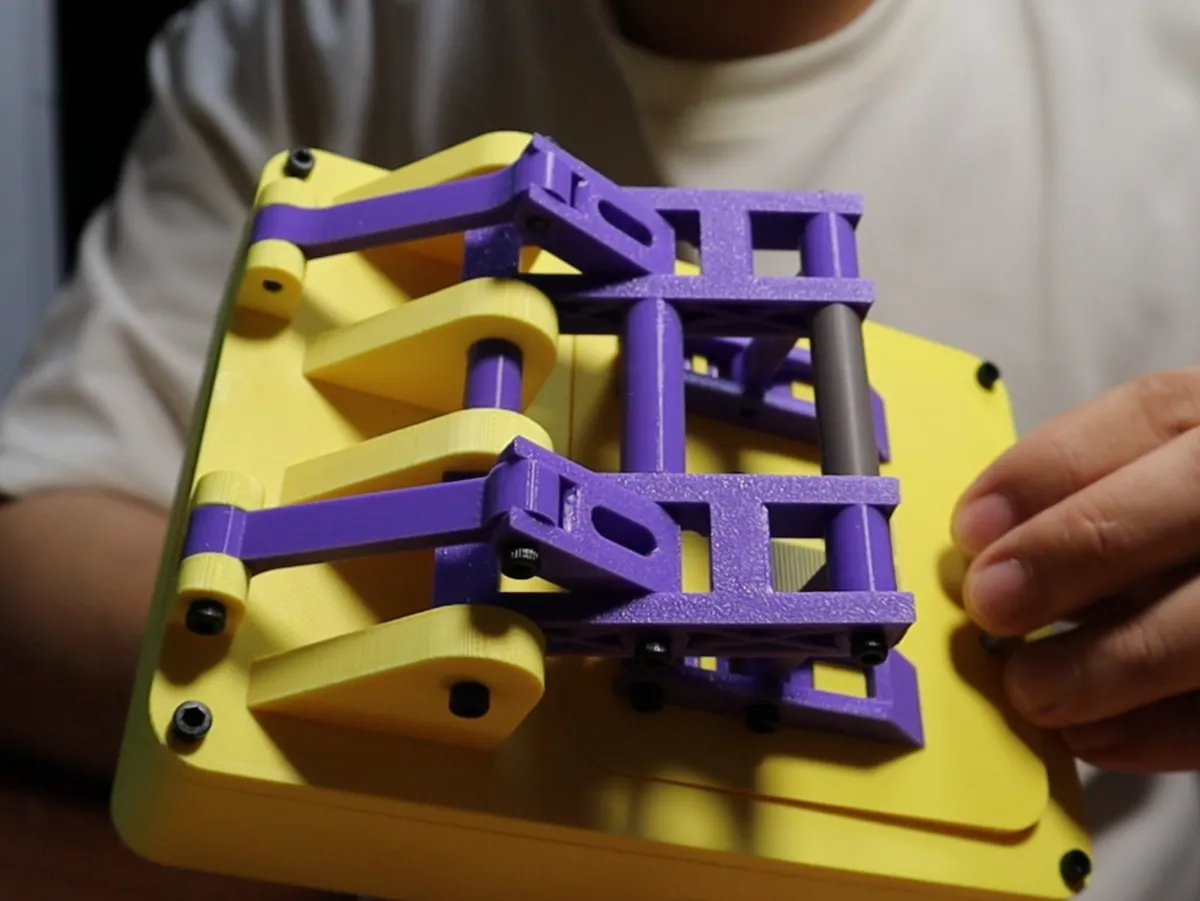

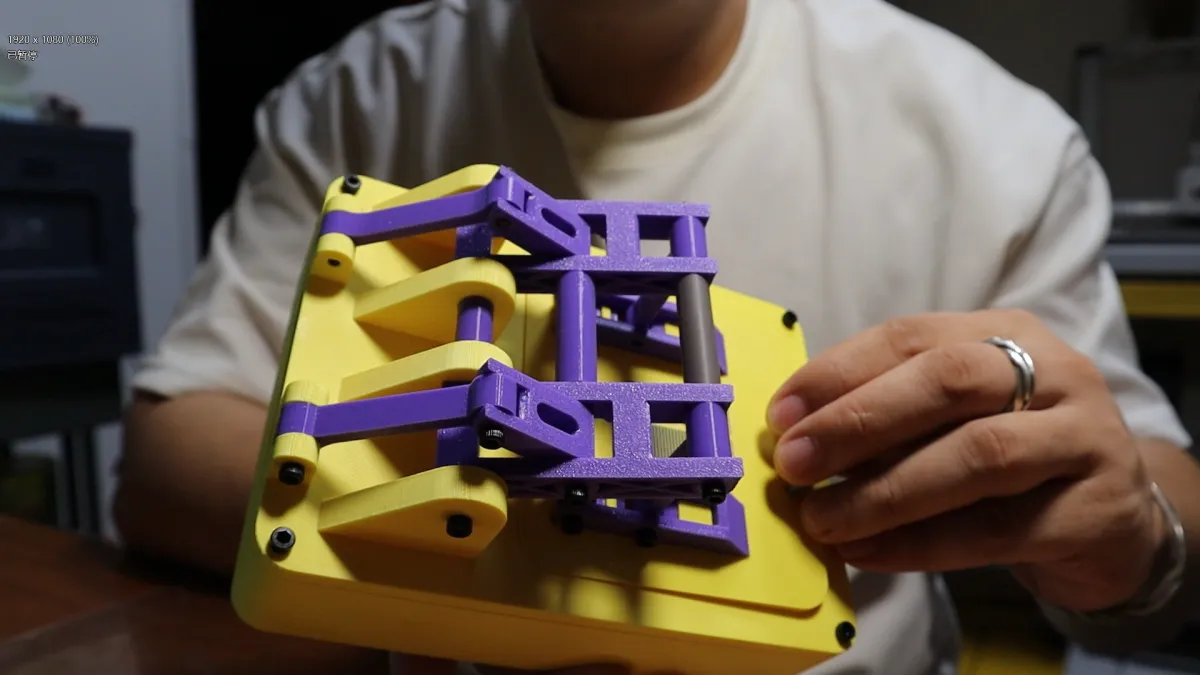

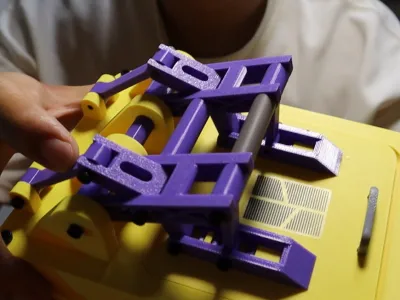

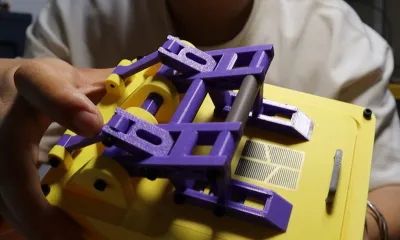

3D-printed mechanical linkage hinge opening-and-closing door mechanism model, originally designed by Meng Ye Gu Shou.
Print Profile(1)
  • 0.2 mm layer height, 3‑layer walls, 15% infill density

    3-disc

    PETG

    Designer

0

1

11

0

Released 2026-05-01
Details
Files(1)
Makes & Comments (0)

3D-printed mechanical linkage hinge opening-and-closing door mechanism model, original design by Meng Ye Gu Shou

Some M3×20–30 screws are required for fastening; if no screws are available, you can thread PLA filament through the holes and briefly heat-seal the ends on both sides.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3*15螺丝
    20
