Toilet Plunger Bottle Opener | Product Introduction

Product Overview

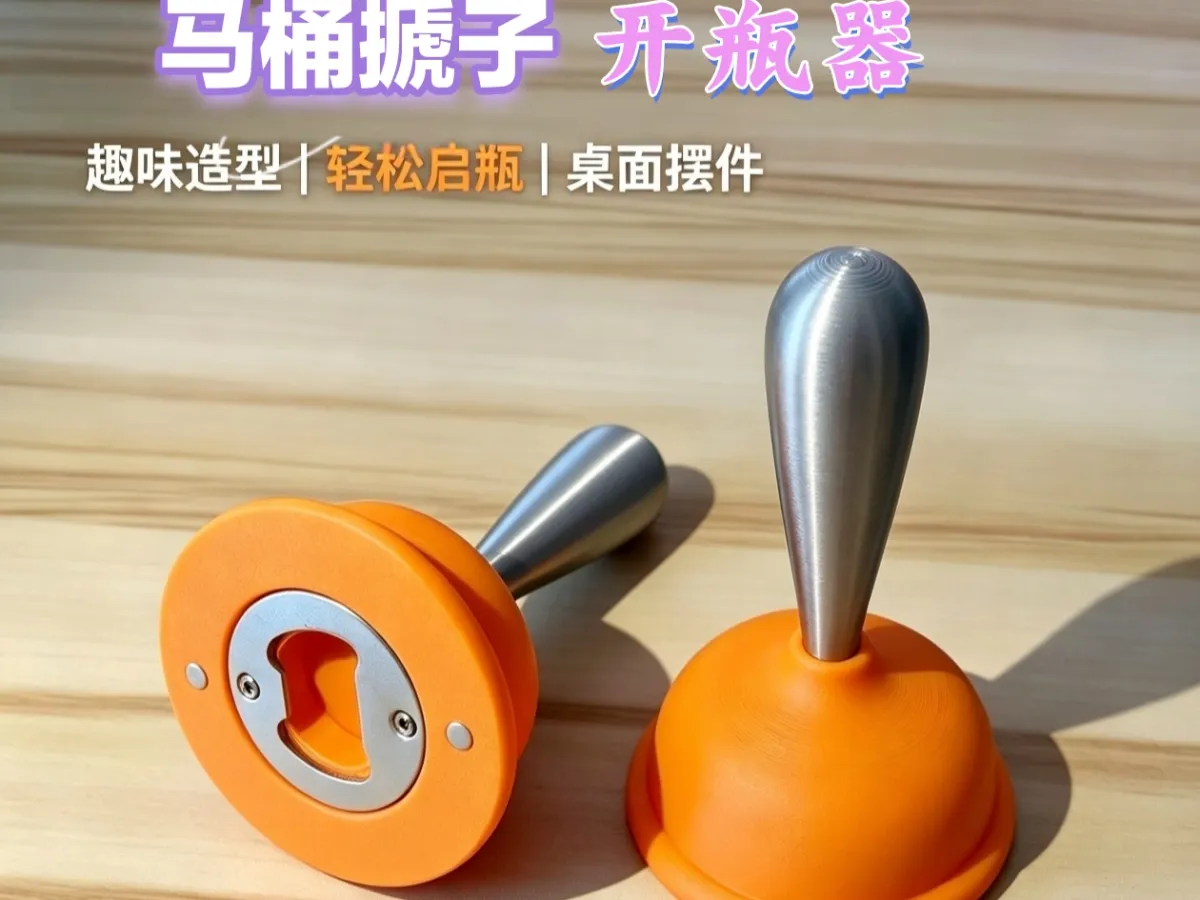

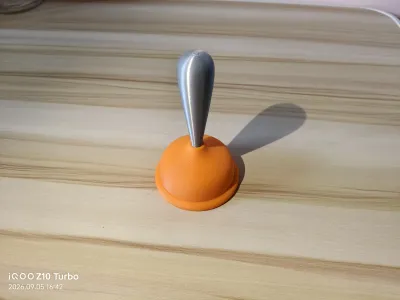

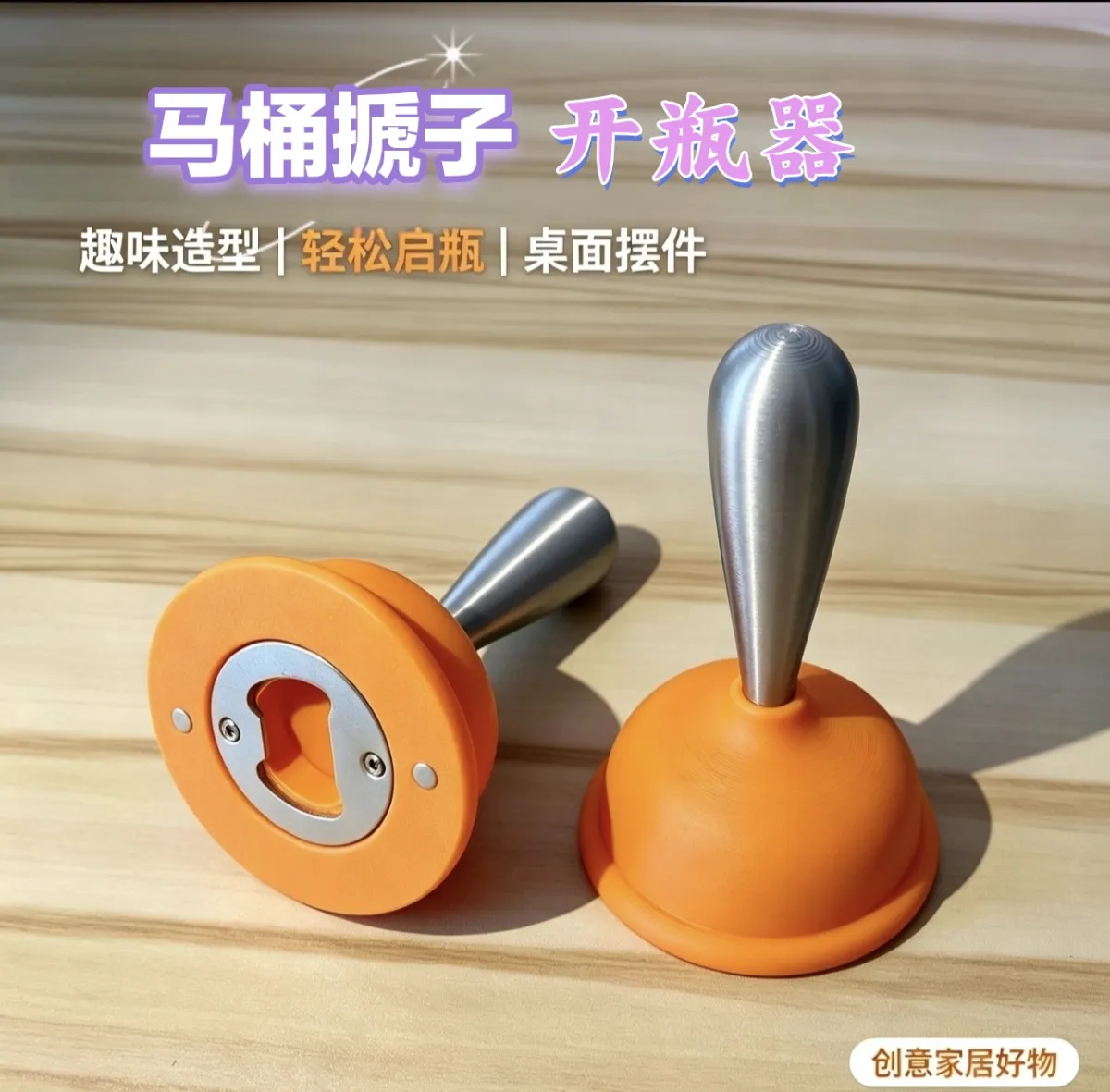

A fun, novelty bottle opener that replicates the shape of a toilet plunger. It serves as both a practical beer opener and a playful, quirky desk ornament or refrigerator magnet. By combining an amusing design with a useful tool, this 3D‑printed creation makes for a delightful, homemade gadget perfect for parties or casual desk play.

✨ Inspiration

Inspired by the everyday toilet plunger, this design merges the plunger’s rounded suction cup with the functionality of a beer bottle opener. What appears to be a tool for clearing clogs transforms into a bottle opener, leveraging the contrast between form and function to create humor. The result is a three‑in‑one item—both a decorative piece and a handy tool—for those who enjoy thinking outside the box.

🖨 3D Printing Requirements

1. Recommended Materials: PETG is preferred, as it offers superior toughness in stress‑bearing areas and resists chipping; PLA can also be used, but repeated attempts to pry open bottle caps may lead to breakage.
2. Wall Thickness: The main body should have walls at least 2.8–3 mm thick.
3. Infill: Aim for 25%–40%; increase infill in the area where force is applied during opening.
4. Supports: Minimal supports are needed at the junction of the handle and base; no extensive support is required under the rounded base.
5. Layer Height: 0.2 mm, balancing aesthetics with structural integrity.

Note: The plastic component serves only as an outer shell; the actual force of opening is borne by a metal bottle‑opening blade. Do not attempt to use the plastic cap directly as the opening mechanism.

🔧 Assembly Instructions

1. Prepare the components: a standard metal beer bottle opener, two M2 countersunk self‑tapping screws, and optionally, five 3×3 mm strong magnets.

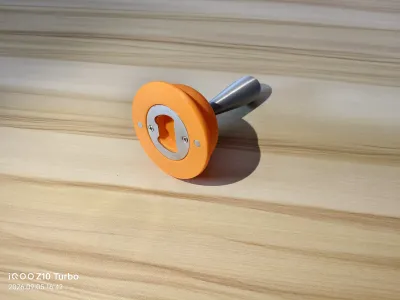

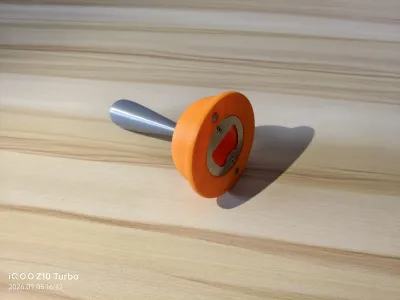

2. Insert the metal opener into the pre‑drilled mounting slot on the orange printed part, aligning the screw holes.
3. Secure the metal piece with M3 screws, taking care not to overtighten to avoid cracking the printed screw holes.
4. Press the metal handle into the central hole of the printed base until it locks into place.

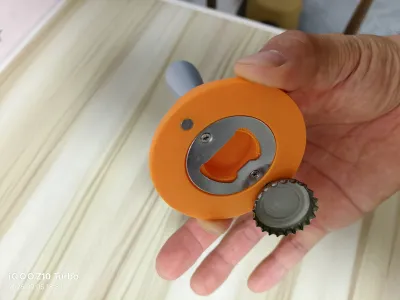

5. (Optional) Embed small round magnets into the designated recesses and secure them with adhesive; once activated, they can magnetically hold the bottle cap.

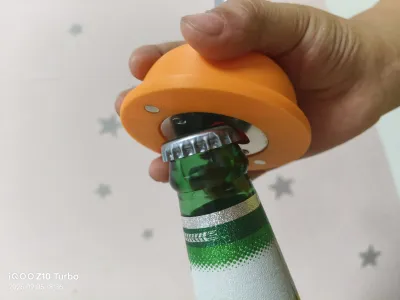

6. After assembly, test the device: snap the bottle cap onto the metal opener’s latch and press downward to open the beer.

This inventive bottle opener draws inspiration from the familiar shape of a toilet plunger, using the interplay of form and function to create a tool that’s both entertaining and practical. The outer shell is 3D‑printed, while the core component responsible for bearing the opening force is made of metal, thereby avoiding potential fractures caused by direct stress on plastic. With its low printing threshold and straightforward assembly, this piece serves as both a daily-use opener and a whimsical desk accessory.
