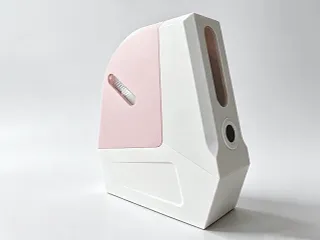

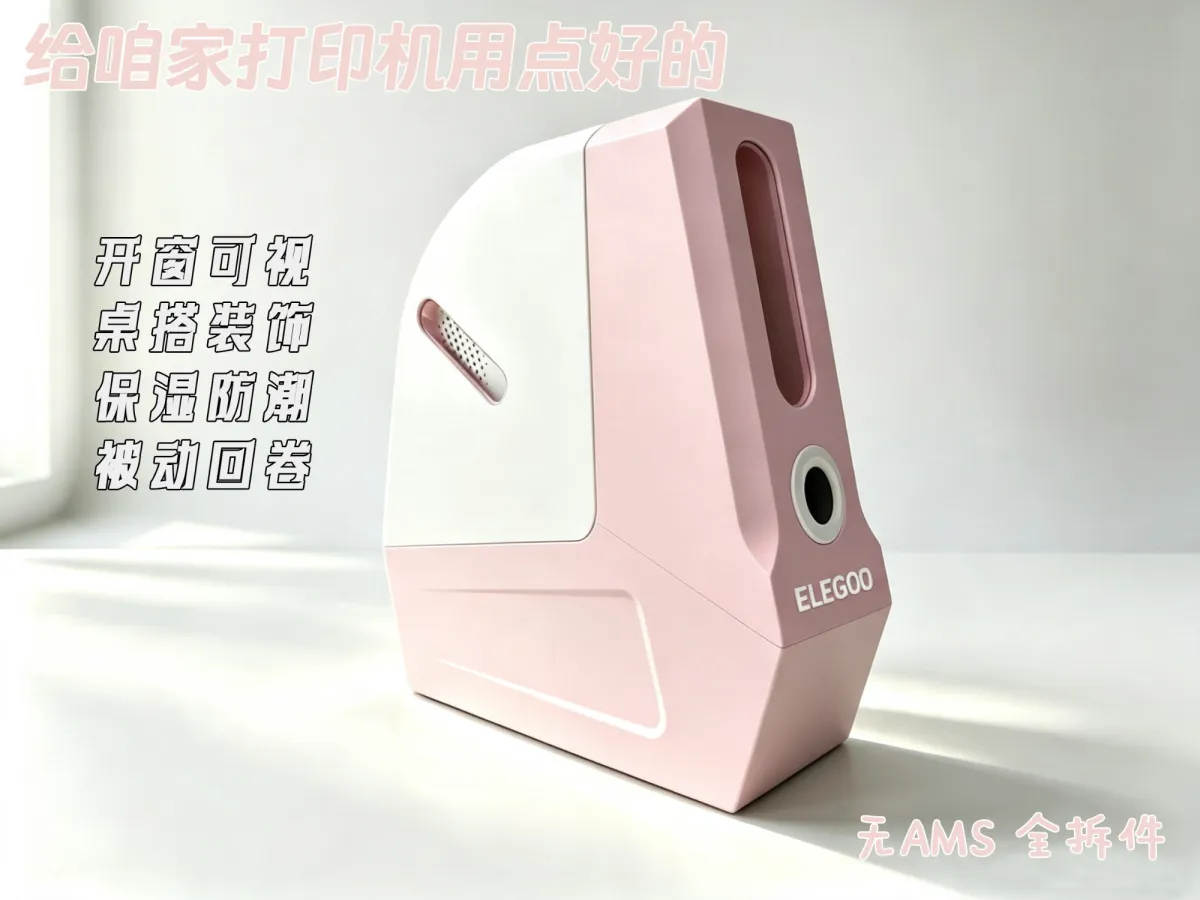

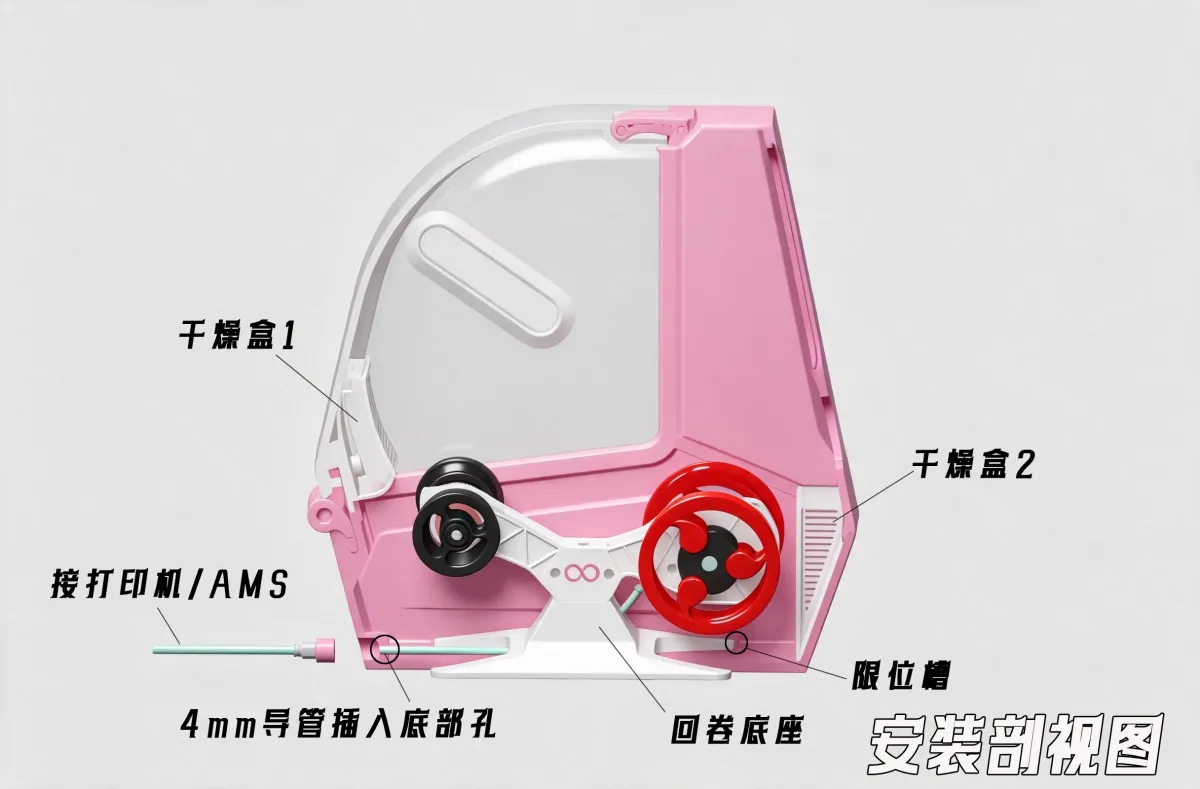

This stylish desktop moisture-proof material storage box is specially designed for entry-level, lightweight 3D printers, effectively addressing common issues such as filament absorption of moisture, clumping, print interruptions, and surface defects. The device features a practical passive rewind mechanism that ensures smooth and hassle-free filament loading and unloading, preventing tangled filaments and significantly enhancing user convenience. It also comes equipped with two large-capacity molecular sieve cartridges, offering exceptional moisture-absorbing performance to continuously capture humidity inside the container, maintaining a dry storage environment over time and safeguarding all types of 3D printing filaments. With its sleek, minimalist design and refined appearance, this unit seamlessly blends into various studio settings and desktop spaces. Balancing robust functionality with thoughtful ergonomics, it delivers maximum practicality—making it an essential accessory for 3D printing enthusiasts and professional creators alike. Note that the passive rewind system requires somewhat complex assembly; refer to relevant tutorials on Bilibili, but be sure to procure all necessary hardware components according to the installation instructions provided in this model.

ItemQuantityNotes
608ZZ stainless steel bearings4for the rewind base
688ZZ stainless steel bearings1for the rewind base
one-way needle roller bearing1HF081412
8X65mm cylindrical pins2for the rewind base and the moisture-proof box hinges
M3X12 stainless steel countersunk screws23for the rewind base
M3X30 stainless steel countersunk screws1for the rewind base
0.5X5X15 compression springs1for the rewind base
widened silicone cable ties≥2quantity depends on width
silicone rings with wire diameters of 3–4 and outer diameters of 24mm2for the rewind base
25X90X1.5mm acrylic panels2for the moisture-proof box’s side viewing windows
40X124X1.5mm acrylic panel1for the moisture-proof box’s front viewing window
round temperature and humidity meter1with a 40–41mm opening on the front of the moisture-proof box
704 silicone rubber/T9000 adhesive1for bonding, sealing, and reinforcement

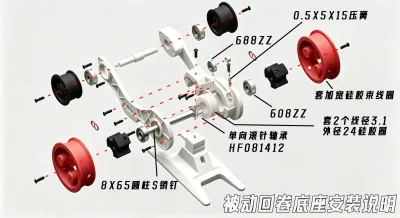

passive rewind base reference video (Bilibili) https://www.bilibili.com/video/BV1XzVmzME1D/?spm_id_from=333.788.recommend_more_video.5

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    608ZZ不锈钢轴承
    4
    用于回卷底座
  • 2
    688ZZ不锈钢轴承
    1
    用于回卷底座
  • 3
    单向滚针轴承
    1
    HF081412,用于回卷底座
  • 4
    8X65mm圆柱销钉
    2
    回卷底座、防潮箱合页各需一根
  • 5
    M3X12不锈钢沉头螺丝
    23
    可以多备一些,用于回卷底座
  • 6
    M3X30不锈钢沉头螺丝
    1
    用于回卷底座
  • 7
    0.5X5X15压簧
    1
    用于回卷底座
  • 8
    加宽硅胶束线圈
    2
    根据采购的宽度确定数量,需覆盖大滚轮
  • 9
    线径3~4外径24mm硅胶圈
    2
    用于回卷底座
  • 10
    25X90X1.5mm亚克力板
    2
    防潮箱两侧可视窗
  • 11
    40X124X1.5mm亚克力板
    1
    防潮箱正面可视窗
  • 12
    圆形温湿度计
    1
    开孔40~41mm,防潮箱正面
  • 13
    704硅橡胶/T9000胶水
    1
    粘合、密封、加固

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

No derivative works or remixes of this model allowed
