Waste Utilization
Power bank case
Power bank
Fast-charging power bank
DIY power bank
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer
3
0

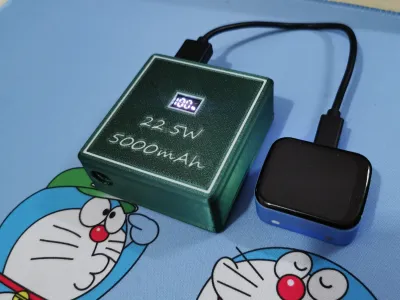

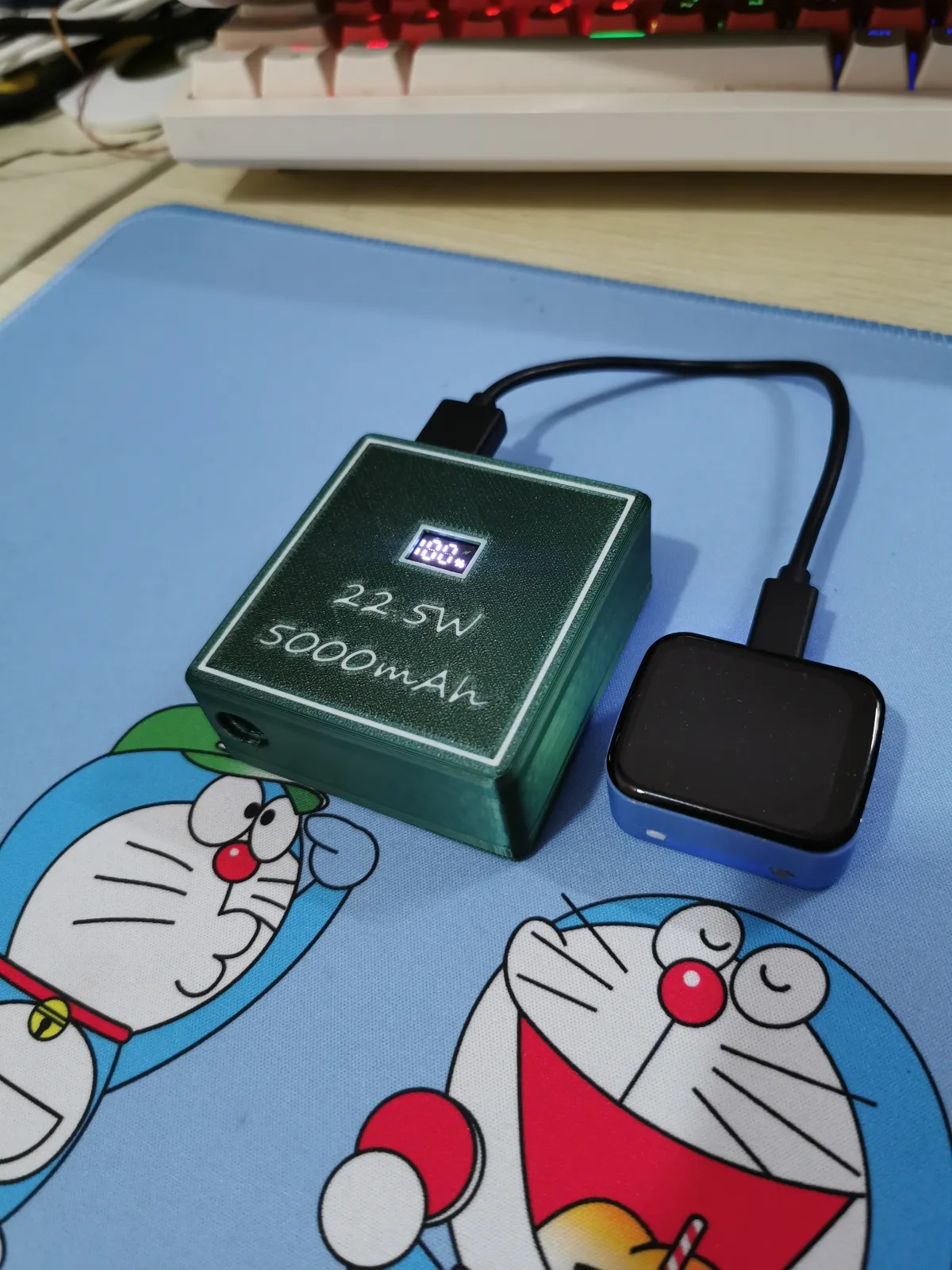

Applicable to a power bank model currently sold on某夕夕 and 某宝, featuring an SW6208 controller motherboard (details provided in the example image)
Suitable for battery cells with dimensions up to 63×58×10 mm
Display window with digital readout, A+C opening, integrated control buttons, and unified design
The motherboard requires four M3×5 mm screws for assembly
Insulation between battery cells must be provided using qingke paper
5.31
Corrected A+C opening misalignment and removed unnecessary DC female connector
Bill of materials
- NameQuantityNotes
- 1SW6208主板1
- 2M3*5螺丝4
- 3软包电芯63*58*10mm1注意尺寸大小
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(1)
- SW6208充电宝外壳 修复开孔偏移问题 移除DC母座.3mfDesigner
454.75 KB
2026-05-31
