Mechanical

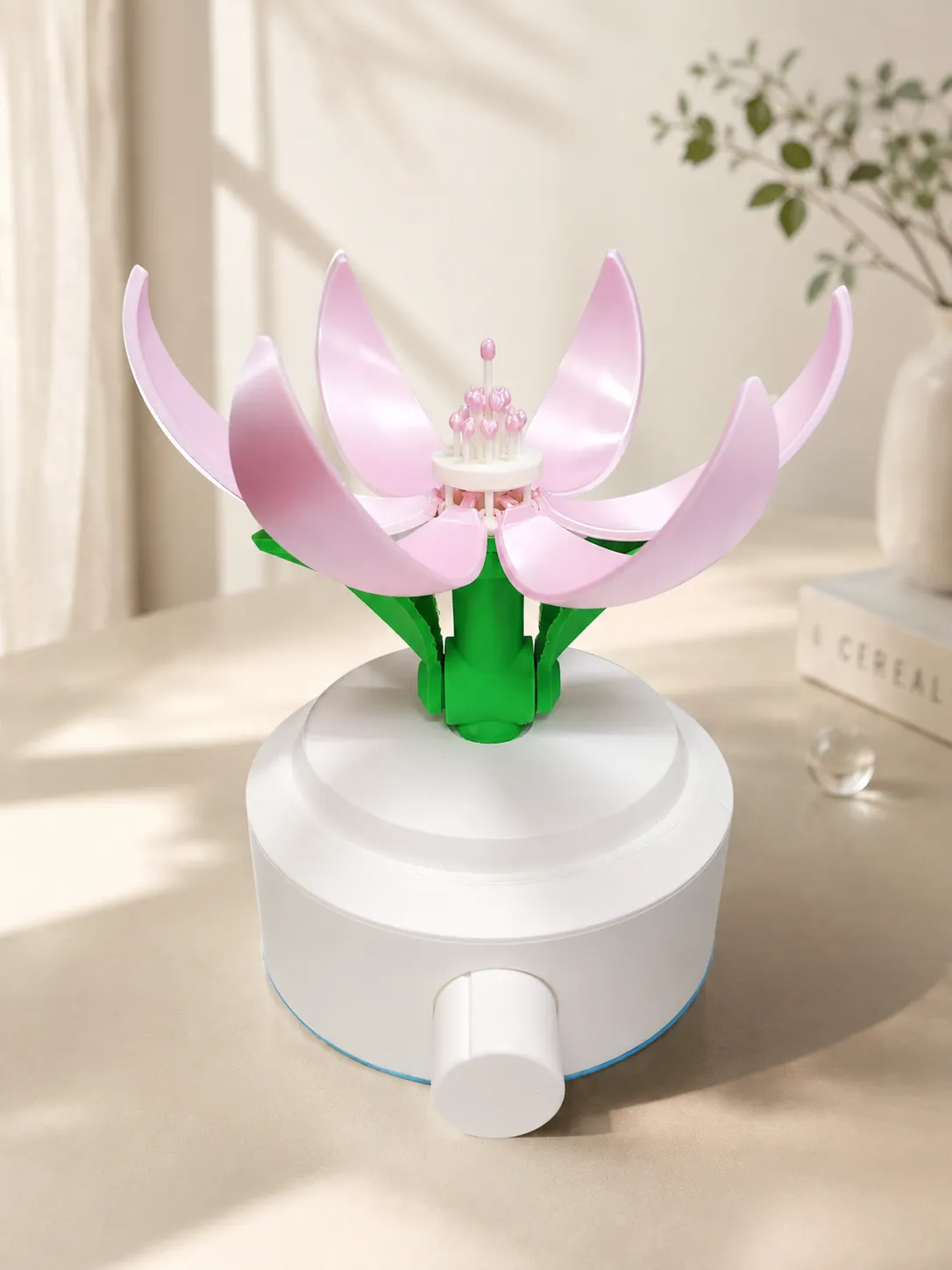

A flower that can be opened
Print Profile(1)
- 0.2 mm layer height, 3‑layer walls, 15% infill density
9-disc
PLA
Designer5(1)
78
14
Released 2026-05-23

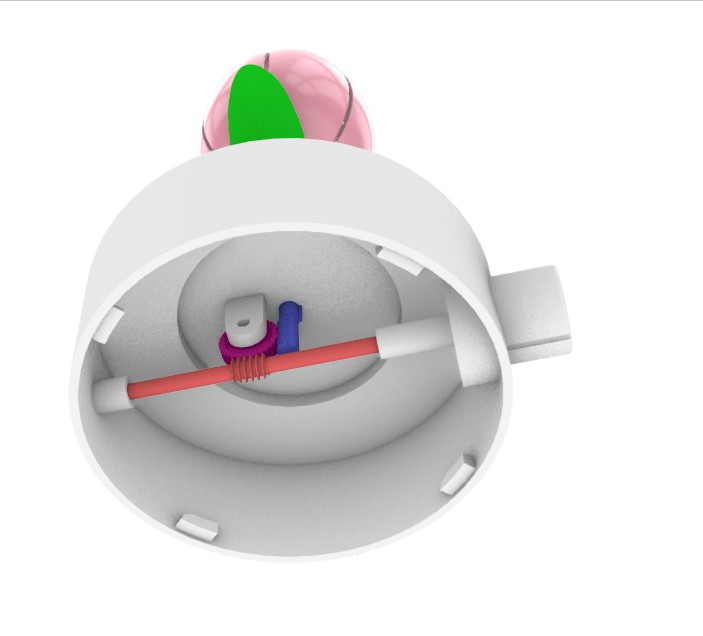

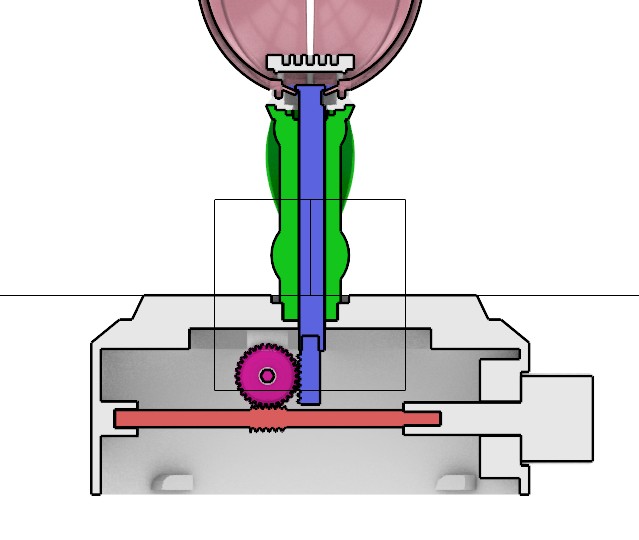

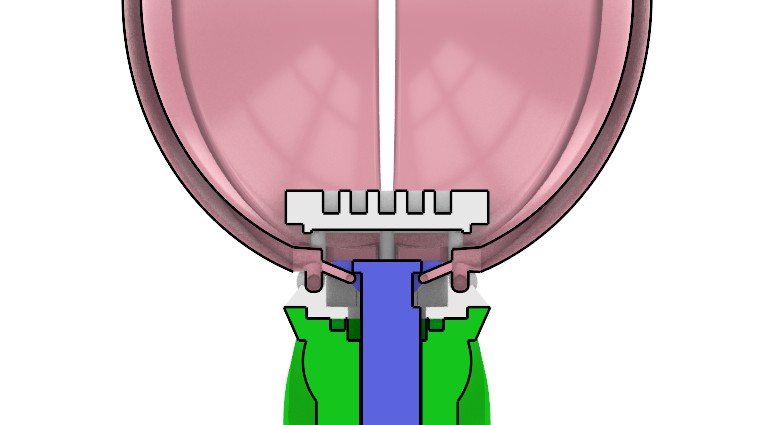

Below is the internal structure diagram. A worm gear and worm screw convert the rotation of the knob into vertical movement of the internal connecting rod, thereby driving the petals to rotate and open.
It is recommended to print using a high-strength material, as the connecting rod and the base of the petals experience significant localized stress.

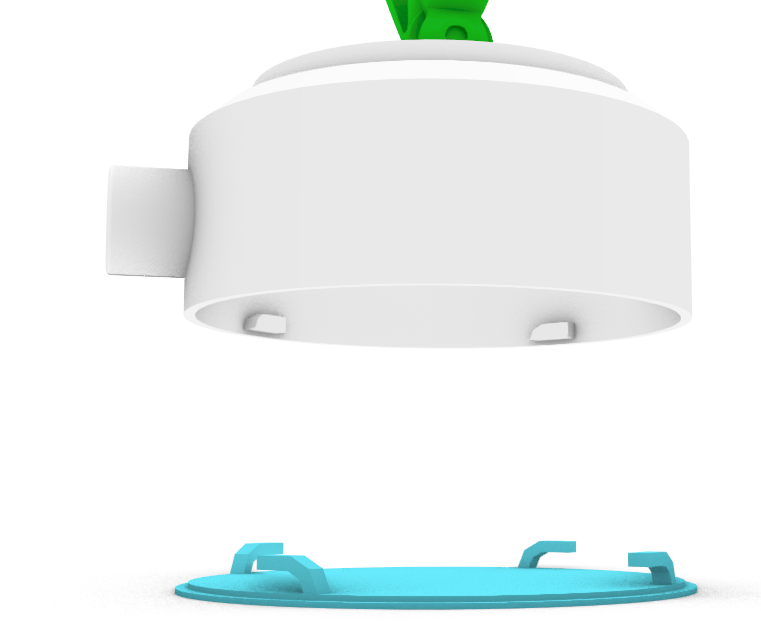

The bottom cover features a rotary snap-fit design; simply align it and twist to secure.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
No derivative works or remixes of this model allowed
