NX 350F Supercapacitor 6-Array Bracket, Upper and Lower Housings
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    2-disc

    PETG/PLA

    Designer

0

0

12

0

Released 2026-04-16
Details
Files(1)
Makes & Comments (0)

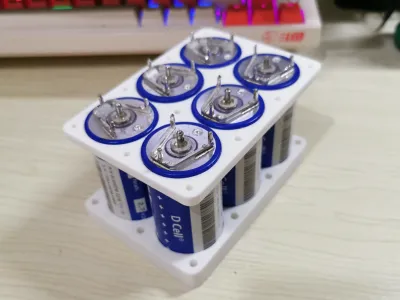

        Bracket and housing designed based on a 2.7V 350F Maxwell supercapacitor

        Can be used to build an auxiliary ignition starter for vehicles, or as an energy-storage spot welder



        0. The capacitor mounting hole diameter is 33.4 mm to accommodate a wider range of models

        1. The upper and lower housings are designed separately: base, bracket, and top cover—each component is independent and can be disassembled for individual use

        2. Two XT60 connector mounting positions have been added*2

        2. The series configuration is customizable—either 6 in series or 3S2P, etc.

        3. After full assembly, the overall dimensions are 110 × 75 × 75 mm

        4. M3×73 screws are used for assembly; the base requires M3×4.2 heat-set nuts to achieve higher structural strength

        4. Please observe electrical safety precautions

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3*73螺丝+M3*4.2热熔螺母
    12
  • 2
    Maxwell 350F
    6

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
