• Xiaomi

  • Camera Mount

  • Support structure

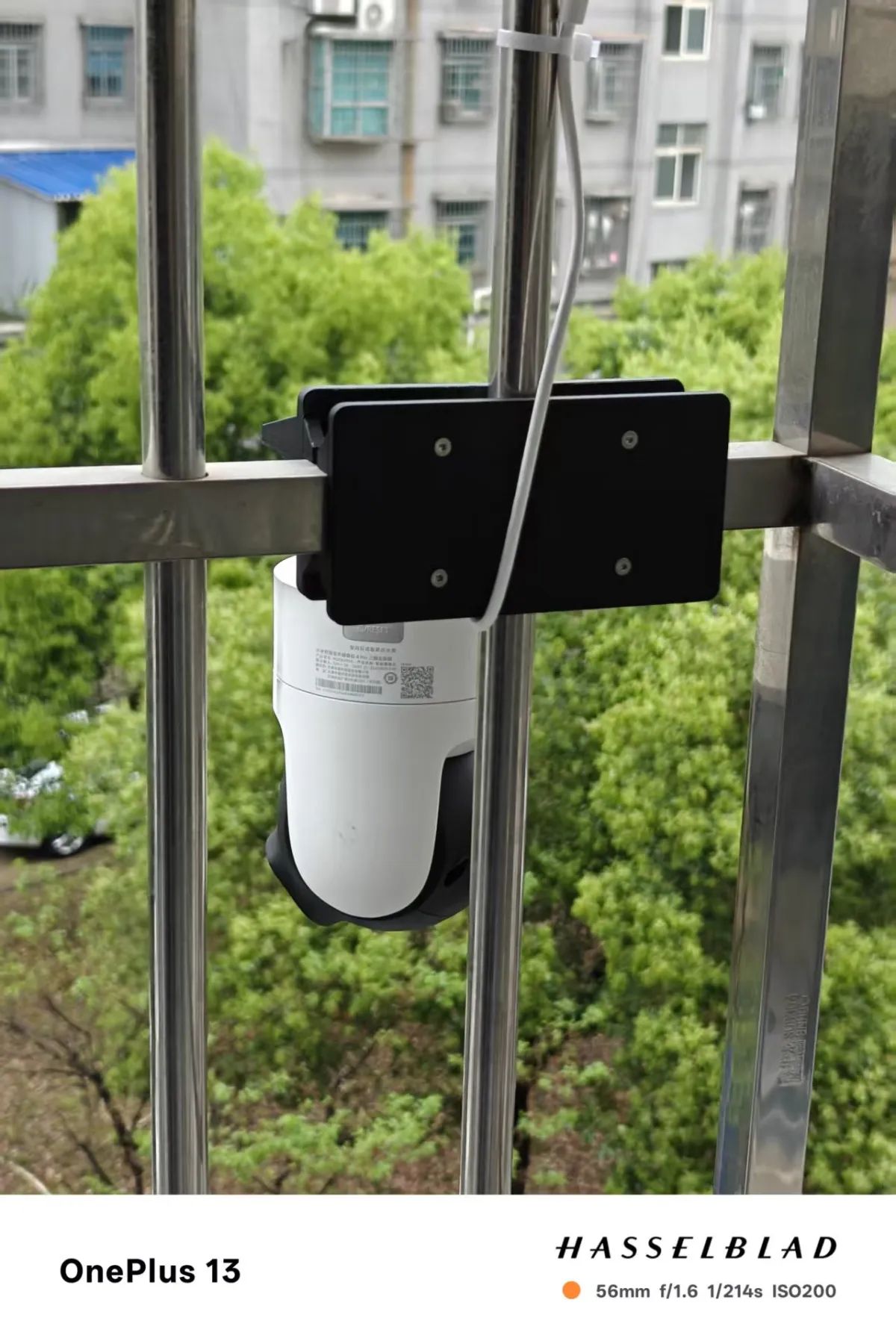

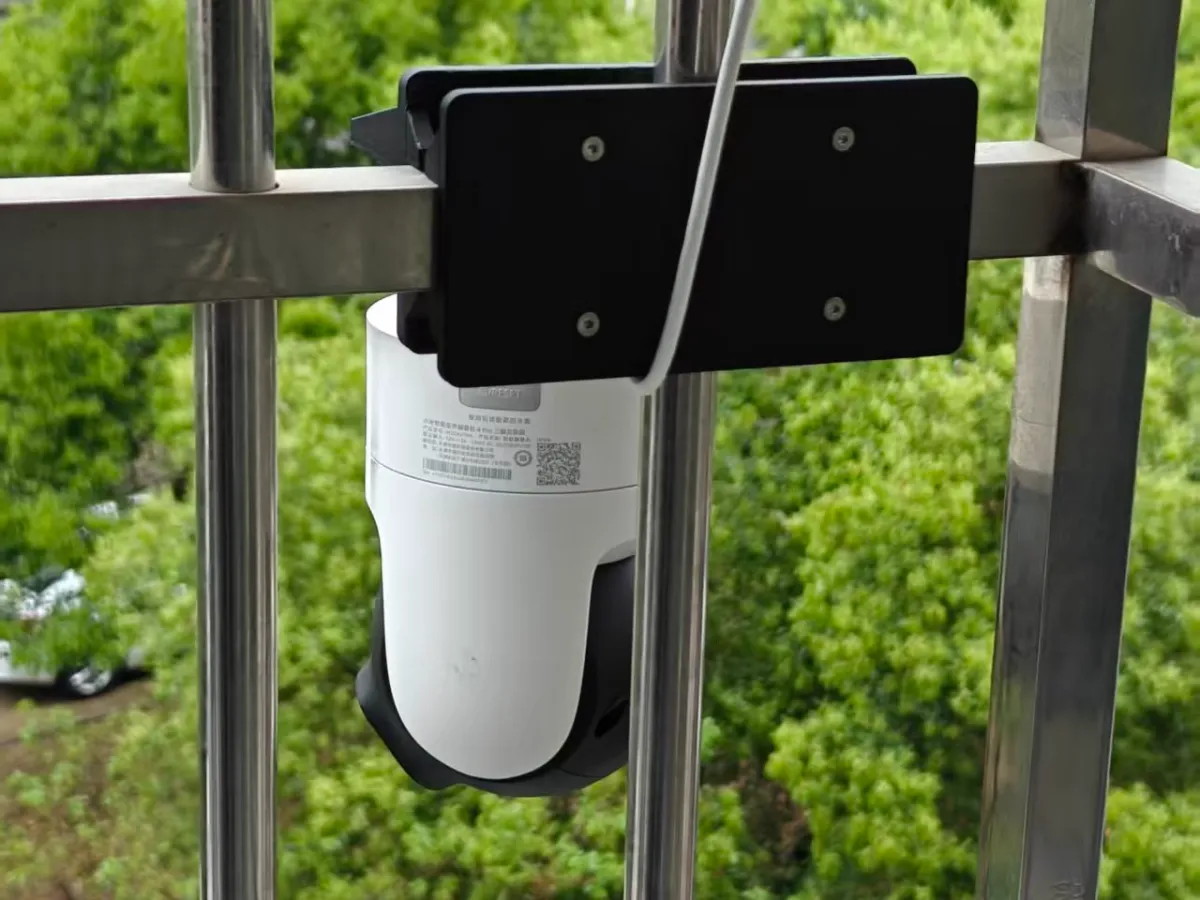

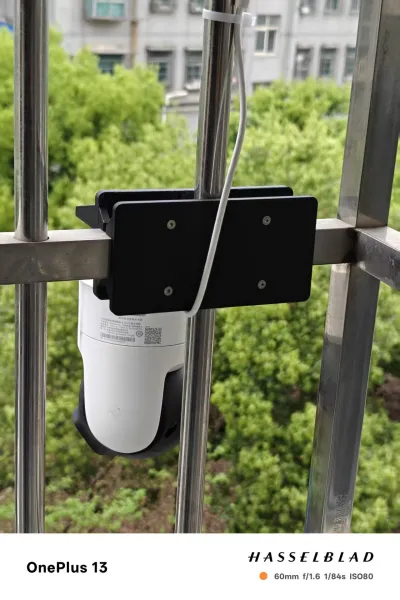

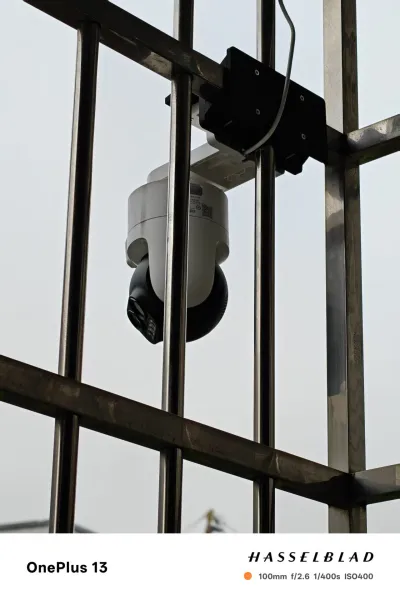

Designed for installation with anti-theft window grilles, featuring 25 mm square beams and 20 mm round beams spaced at 95 mm intervals. The Xiaomi camera model is the 4Pro triple-camera zoom edition, which comes with pre-drilled mounting screw holes; for other models, the base dimensions should be used to determine compatibility. As far as I recall, outdoor cameras generally use a universal mounting base.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3*20不锈钢螺丝
    6
    摄像头固定螺丝
  • 2
    M3*30不锈钢螺帽
    10
    支架固定4颗,摄像头固定6颗
  • 3
    M3*30不锈钢螺丝
    4
    支架固定螺丝

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • model file image
    小米监控支架.3mfDesigner

    149.58 KB

    2026-04-06

  • model file image
    小米监控支架-打印参数.3mfDesigner

    150.68 KB

    2026-04-06
