Please refer to the instructional video:

[Decorative power button, click to release the lock] https://www.bilibili.com/video/BV1KKD5BVEgE/?share_source=copy_web&vd_source=34478668b1d65a115b73340770d5ea8f



  • The screws are purely decorative; use whatever you have on hand.

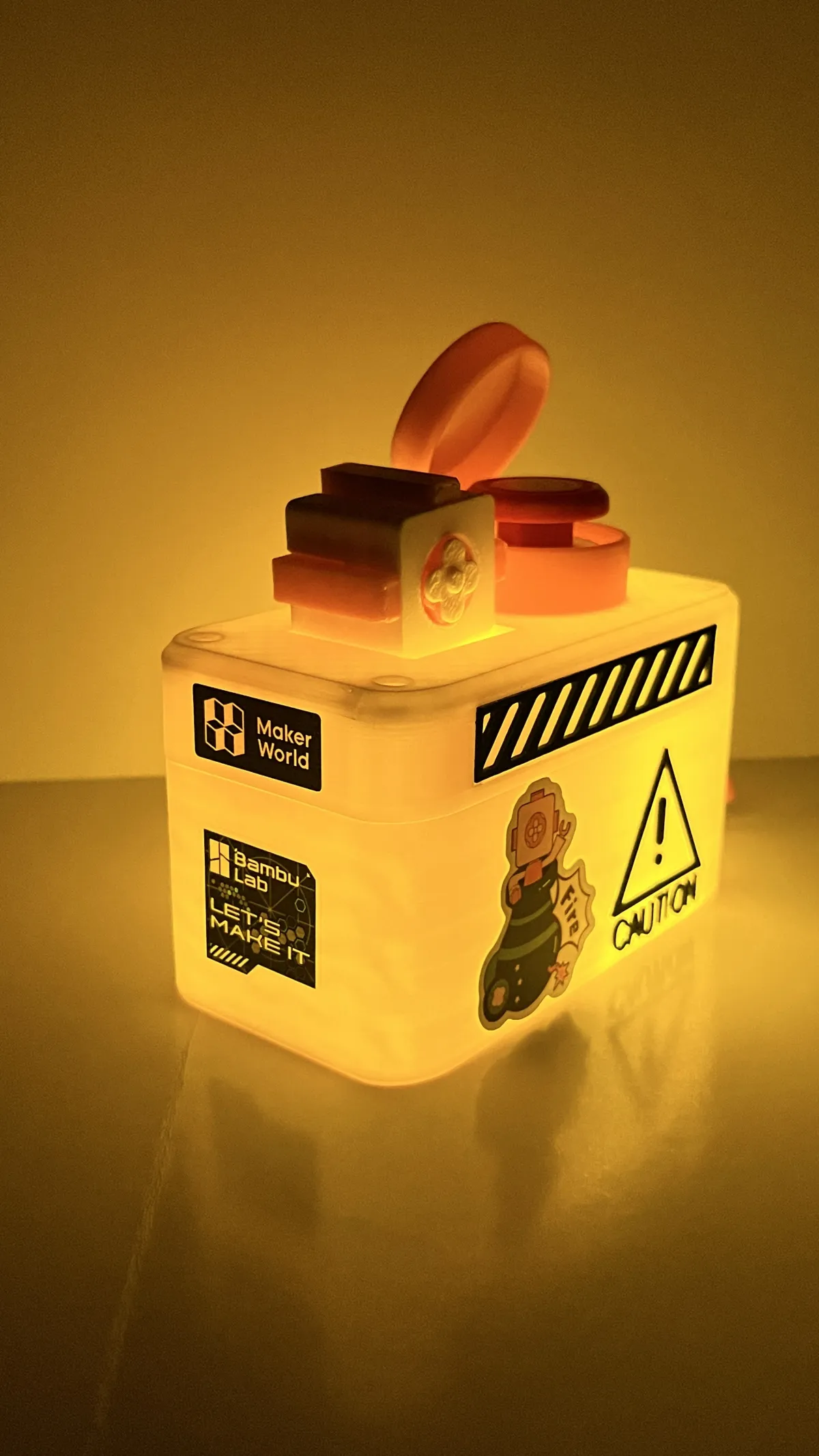

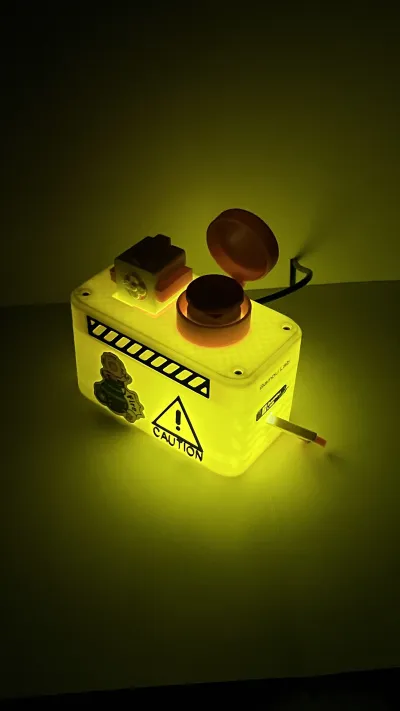

  • The small light is a push-button lamp with three brightness settings.



  • There’s a hole on the back for the power cord of the power button, with half of the hole on the top cover and half on the bottom cover—this makes it very convenient, as you don’t need to remove the power cord from the main unit to thread it through!



  • The hinge on the back can be made using filament material; simply heat both ends with a lighter to prevent them from scratching your hands.

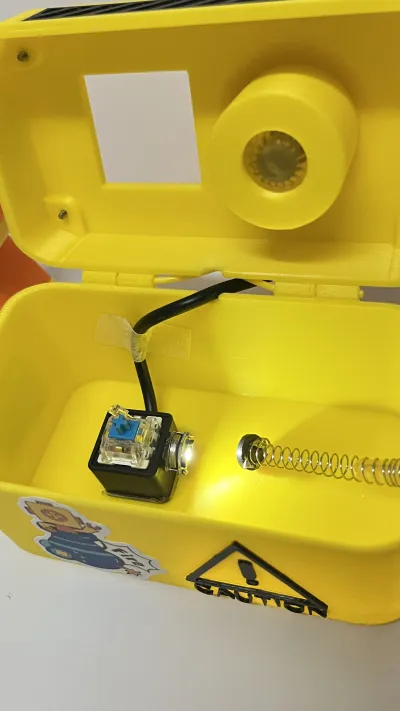

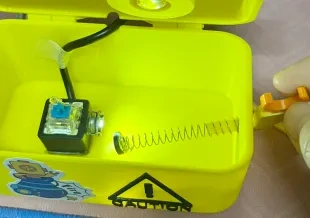

  • The power cord for the power button is taped to the inner wall of the box with masking tape, so even after removal there will be no adhesive residue.



  • The bottom of the power button is secured with nano-tape; it adheres extremely well and remains sticky even when repositioned or removed, leaving no trace of glue upon removal.



  • The magnetic control light is attached to the side of the lower half of the power button, also using nano-tape.

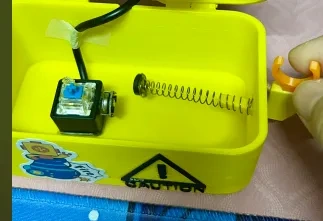

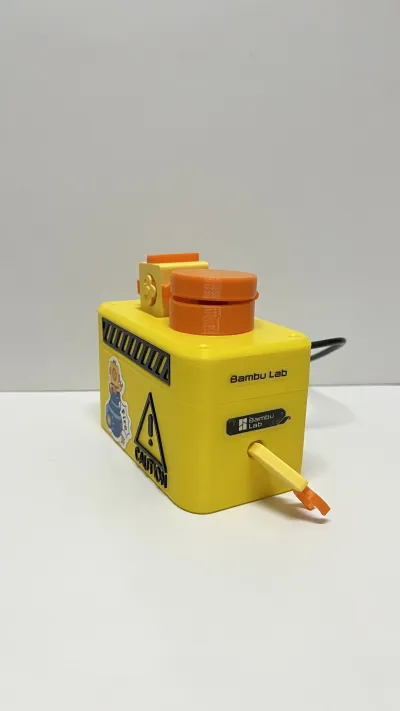

  • The magnet is affixed to the long spring (6×50 mm) with nano-tape, and the other end is looped around the arm.







    By gently shaking the spring, bringing the magnet within about 1 cm of the surface of the magnetic control light, you can easily turn the light on and off, make it flash, or keep it steadily illuminated.

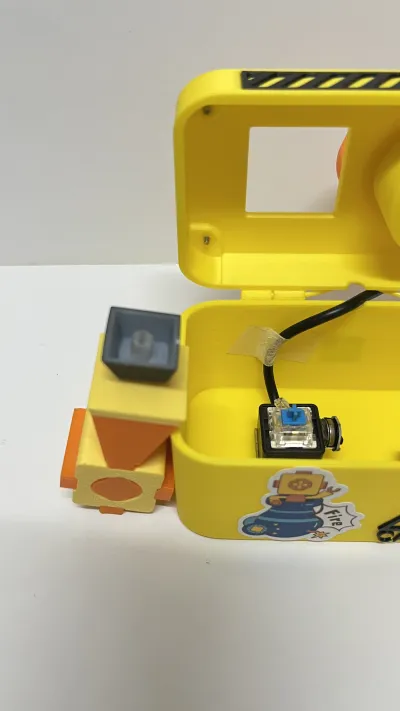

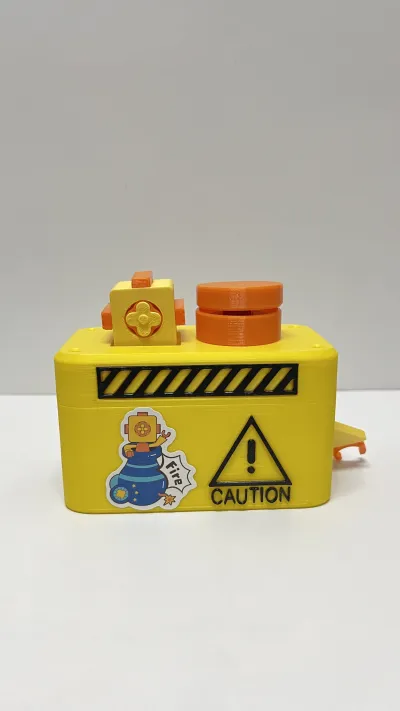

The keycap of the power button is glued to the bottom of the square flower using nano-adhesive; the square flower is inserted through the square opening at the top of the box and aligned with the cross-shaped latch, allowing one-touch power on/off.

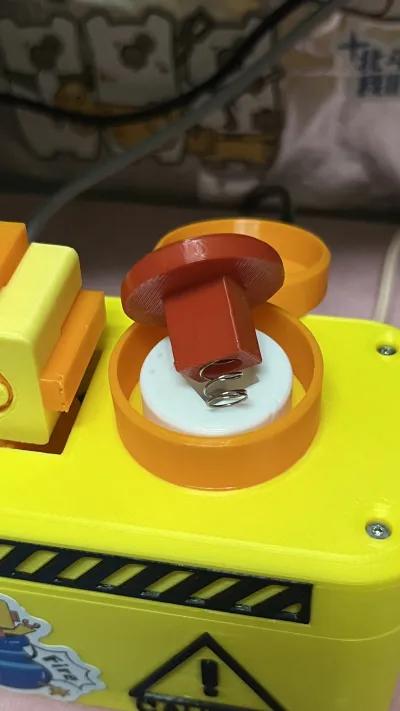

The push-button lamp has a diameter of 25.5 mm, and a 6×10 mm spring is placed inside the red button to enhance its elasticity.

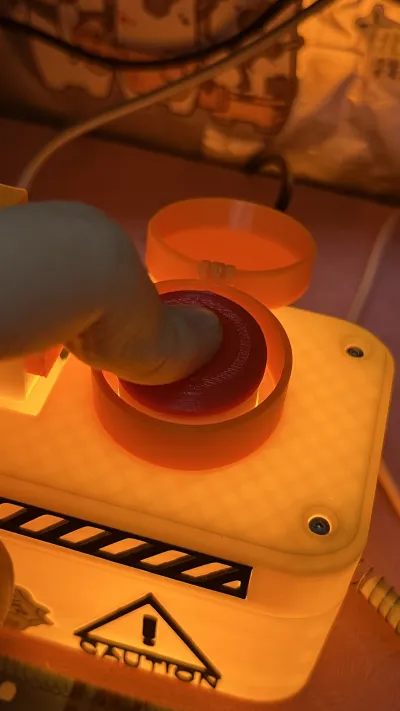

A fixed guard is used here to enclose the small light, enabling unlimited pressing, releasing, and playful clicking.
