Support Test – Top Z Distance
Print Profile(1)
- 0.2 mm layer height, 2‑wall walls, 15% infill density
5-disc
PLA
Designer
42
12
Released 2026-04-02
These tests were conducted to evaluate support-related parameters; in the print settings, only the top Z offset was adjusted, while all other parameters remained unchanged.

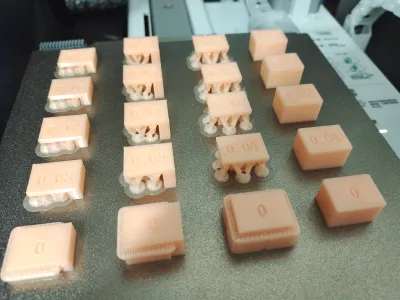

Four objects of different shapes were provided for support testing—each is a relatively common geometry encountered during my printing process.
The four shapes are as follows:
High Platform
T-Platform
Loop Platform
Low Platform
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
