- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
9
1

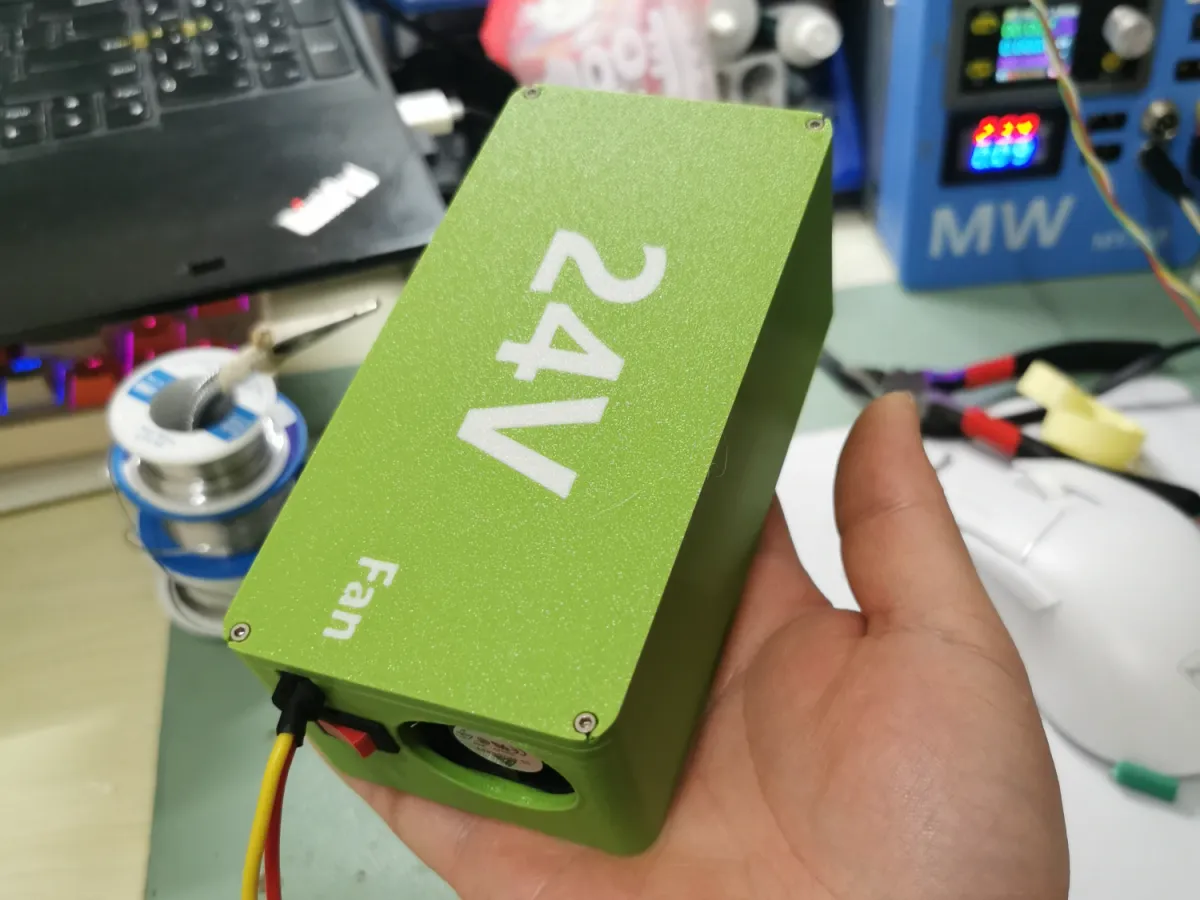

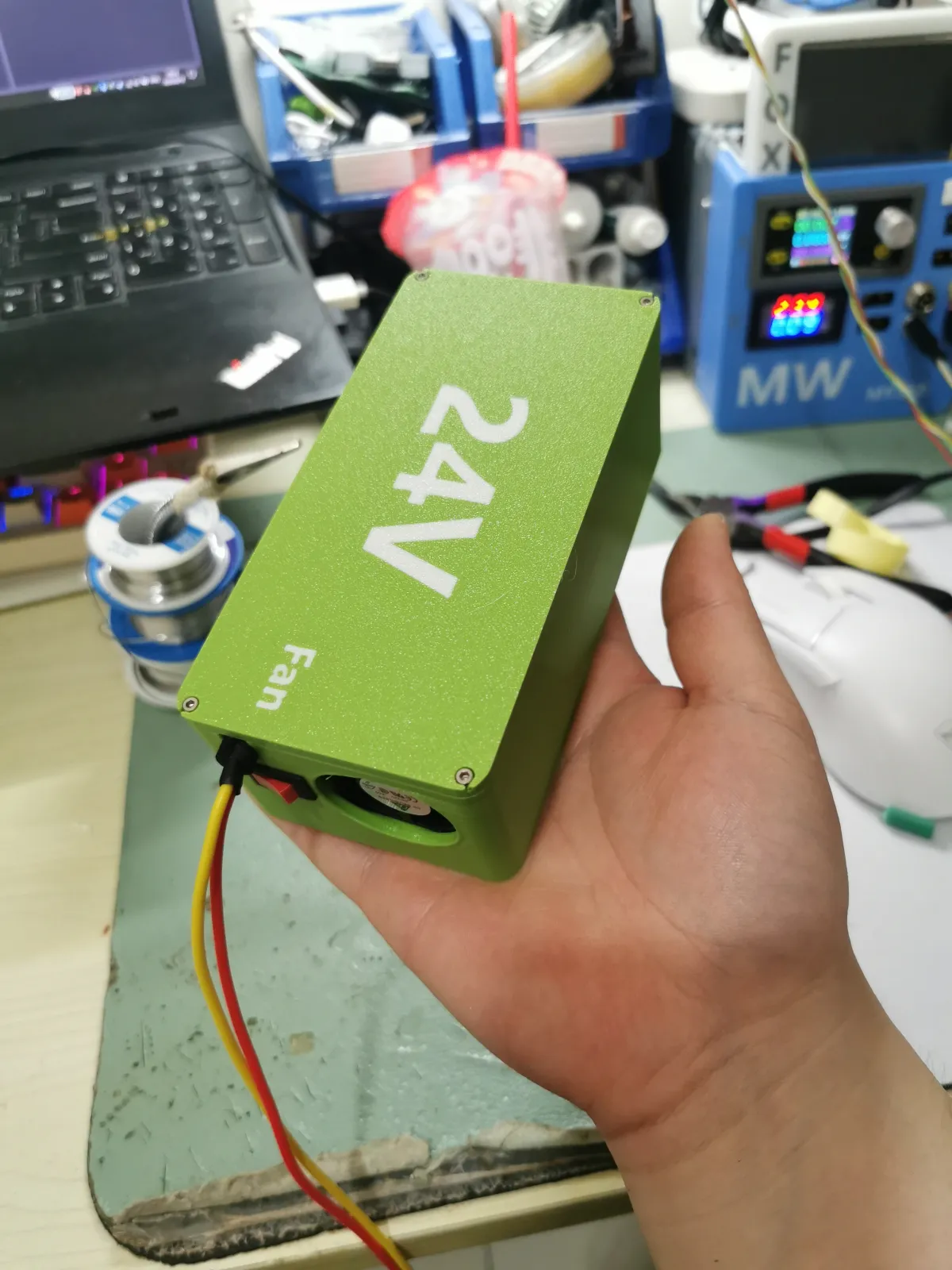

AC–DC Power Supply Enclosure
The screw holes are M2; if you plan to use hot‑melt printing, please manually adjust the hole compensation settings.
Designed for power supplies with overall dimensions of 100 x 60 x 40 mm

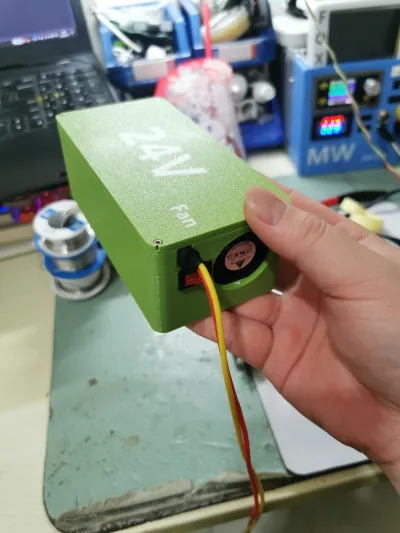

The fan size is 3010 or 3020
Equipped with a 14 x 9 mm ship‑style switch for active cooling fan control

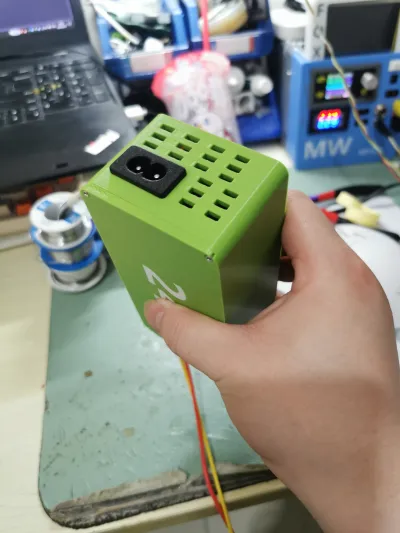

The AC female connector features a standard 8‑shape port with dimensions of 25 x 13 mm
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
