Jialichuang Open-Source Spot Welding Machine Controller
Energy‑Storage Spot Welder
Energy Storage Spot Welder Controller Housing
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
10
0
Applicable to JLCPCB Open Source Plaza

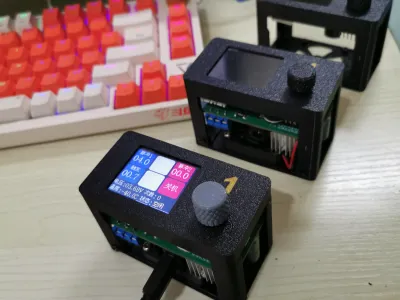

Color-Screen Spot Welder—Project (as shown in the figure)
The assembly features chamfered snap-fit connectors paired with four screws for secure locking; note that the screen must be elevated by 4 mm using foam tape or similar material
In addition, the outer shell completely encloses the controller and the equalization charging module in a two-layer structure
The side is hollowed out to facilitate heat dissipation and cable routing, and the rear end is pre-equipped with mounting holes for a 4020 fan to enable active cooling during equalization charging
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
