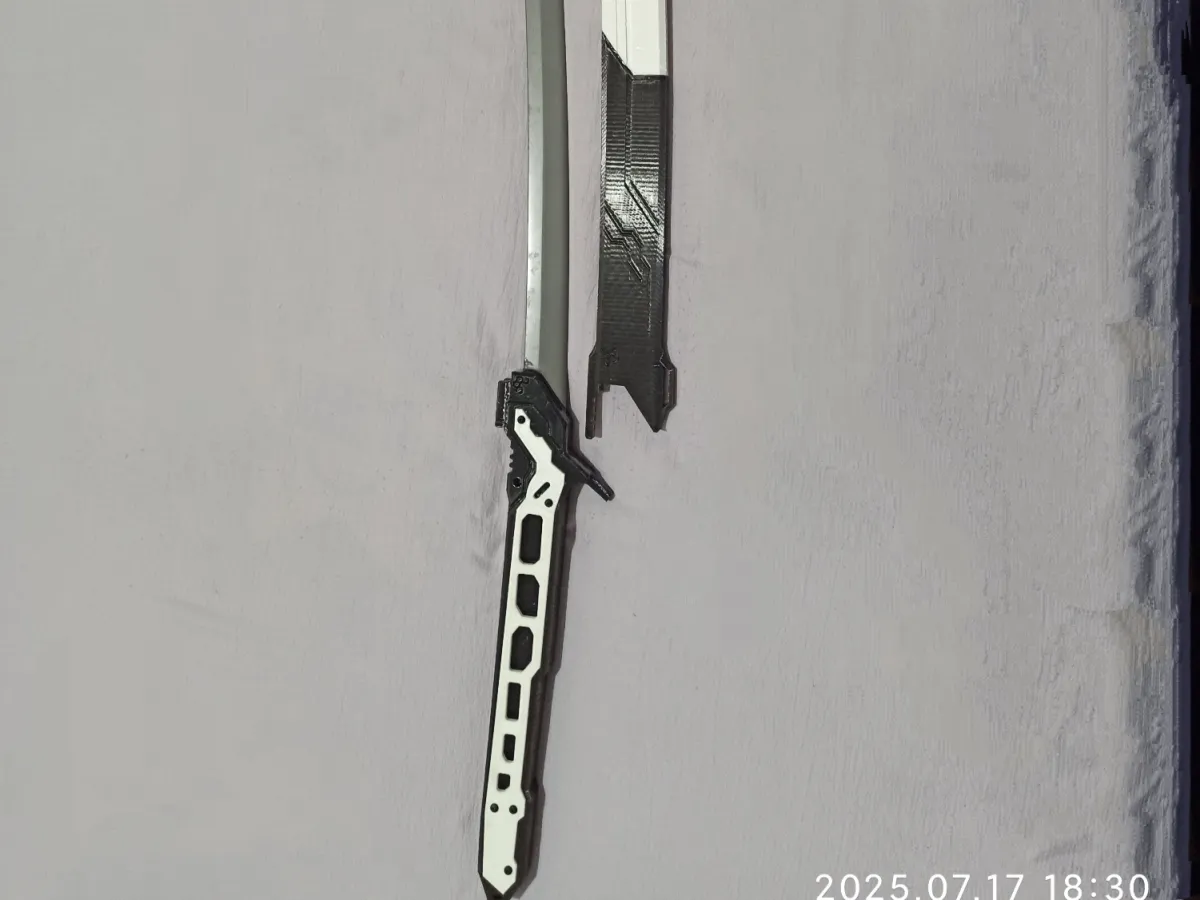

Model created based on the weapons featured in Cyberpunk 2077

A model inspired by the weaponry in Cyberpunk 2077

The original handle lacked a magnetic attachment point—this has now been updated and added.

The original handle did not include a magnetic attraction feature; this has now been incorporated into the design.

Screw M3×40 into the two locations shown in the diagram below to reinforce the print and prevent breakage under heavy use.

Insert M3×40 screws into the two designated points in the illustration to ensure the printed component remains robust and less prone to fracture over time.

As illustrated, both the scabbard and the handle feature eight circular recesses. I plan to embed 5×1 mm thick cylindrical magnets into these grooves to maintain a secure fit and prevent loosening after repeated use.

The base of the handle is secured with an M4×12 locknut.

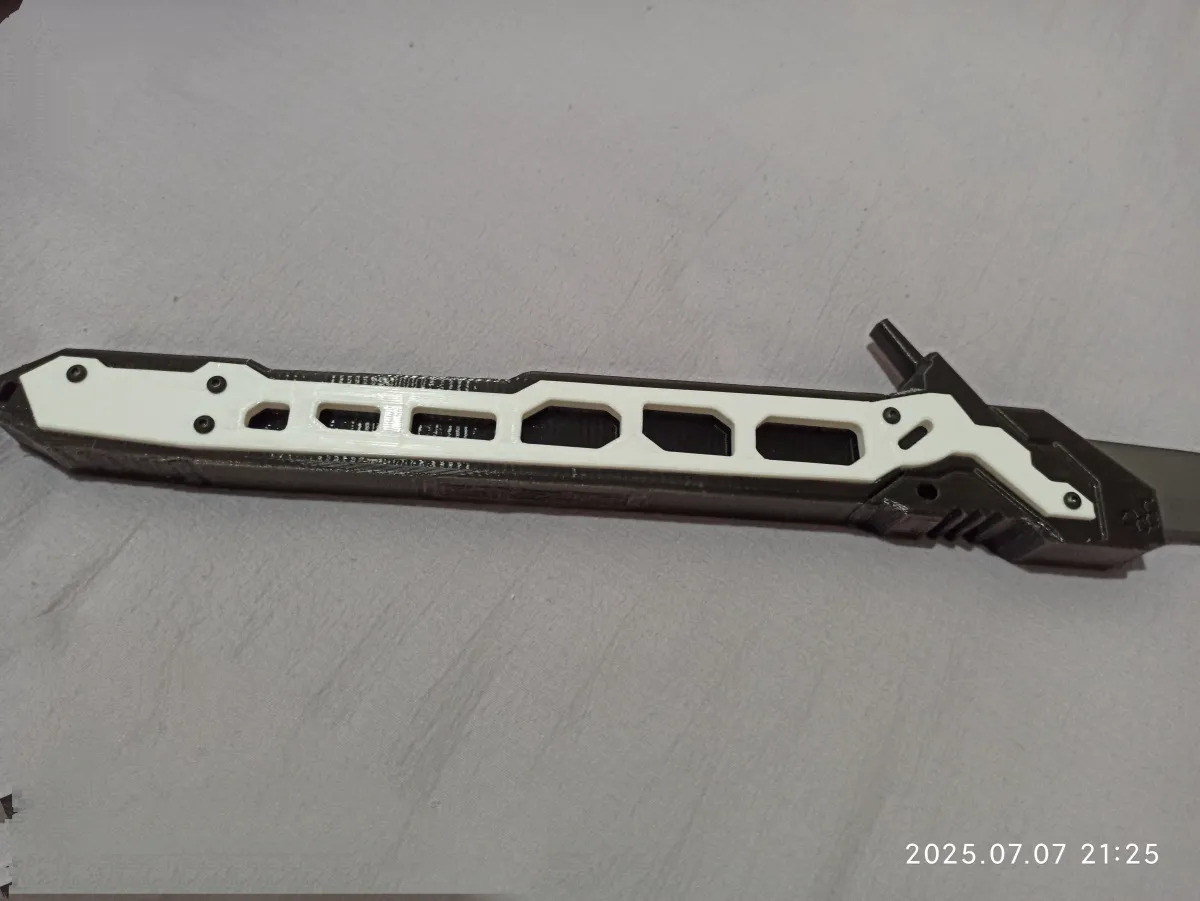

The decorative plate is fastened using M3×10 round-head screws.

To firmly attach the metal blade, I employed AB clear resin adhesive: first, the metal blade’s handle was heated and carefully tapped into place within the handle; once properly shaped, the blade was carefully removed, coated with adhesive, reinserted, and then fully sealed with additional resin.

As shown in the figure, the scabbard and handle each feature eight circular grooves. I intend to embed 5×1 mm thick circular magnets into these recesses to ensure a snug fit and minimize the risk of loosening after multiple uses.

The handle’s base utilizes an M4×12 locknut for secure attachment.

The decorative plate is fixed with M3×10 round-head screws.

AB clear resin adhesive is also used to securely bond the metal blade: the blade’s handle is heated and gently pressed into the handle cavity; after shaping, the blade is carefully extracted, coated with adhesive, reinserted, and finally sealed with additional resin.
