Printable G‑scale track models with a gauge of 45 mm, perfectly compatible with the entire TobiZhu printer lineup.
The following files are currently available:

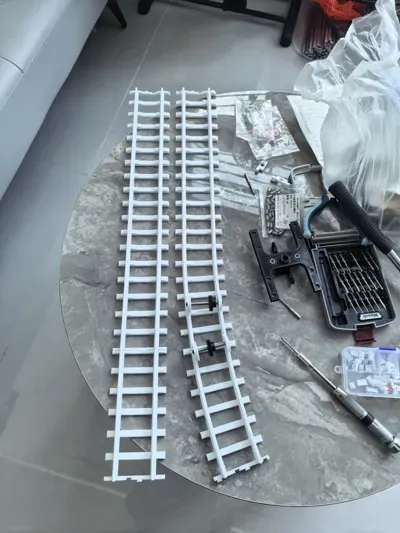

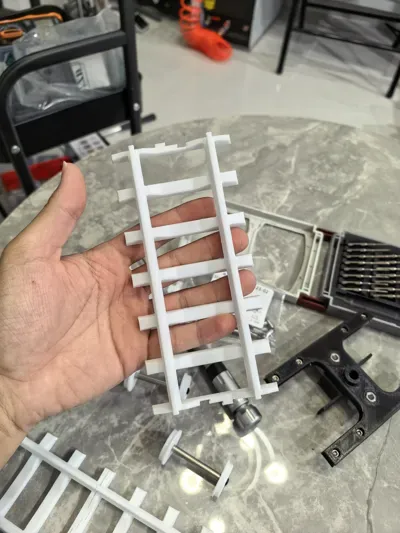

Straight tracks in 80 mm, 160 mm, and 320 mm lengths (the 320 mm model is optimized for larger machines; 3MF files have not yet been included).

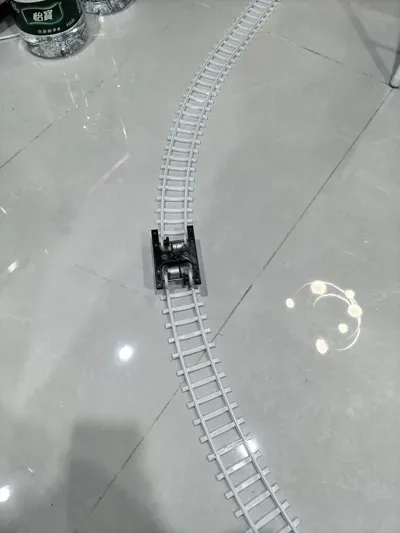

Curved tracks in 500 mm at 9°, 18°, and 36° angles
Curved tracks in 1000 mm at 4.5°, 9°, and 18° angles (the 18° model is tailored for larger machines; 3MF files have not yet been included).

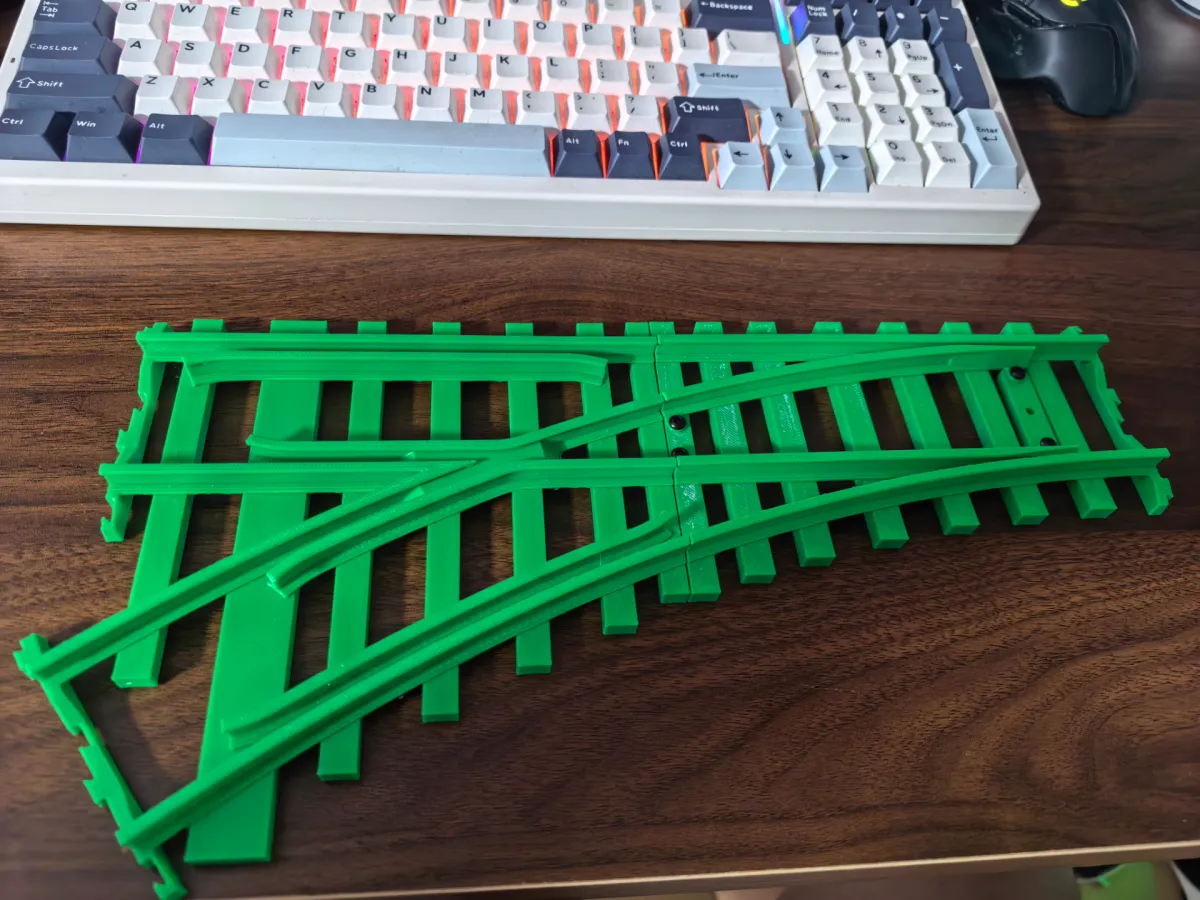

Straight turnouts in 500 mm, available as right-hand and left-hand switches.
None of the models require supports—except for the turnouts, which need to be assembled using M3 screws and nuts for installation and interlocking. All straight and curved track segments are ready‑to‑print without additional assembly.
More track configurations are continuously being updated, and the point machines required for turnouts are currently under development. Matching vehicles are also being crafted one by one. Stay tuned for updates and feel free to request new content!
All models come with original CAD files, allowing you to freely modify and customize your tracks to suit your exact needs.
Bill of materials
- NameQuantityNotes
- 1M3螺母2
- 2M3*6圆头螺丝2
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(15)
500mm18度.STEPDesigner300.85 KB
2026-02-06
直线160mm.STEPDesigner262.16 KB
2026-02-06
500mm9度.STEPDesigner311.32 KB
2026-02-06
1000mm4.5度.STEPDesigner311.41 KB
2026-02-06
直线320mm.STEPDesigner273.14 KB
2026-02-06
直线80mm.STEPDesigner242.41 KB
2026-02-06
1000mm9度.STEPDesigner317.90 KB
2026-02-06
1000mm18度.STEPDesigner305.83 KB
2026-02-06
500mm左开道岔3.STEPDesigner285.59 KB
2026-02-06
500mm36度.STEPDesigner305.83 KB
2026-02-06
500mm左开道岔1.STEPDesigner1.45 MB
2026-02-06
500mm左开道岔2.STEPDesigner476.14 KB
2026-02-06
500mm右开道岔3.STEPDesigner287.73 KB
2026-02-06
500mm右开道岔1.STEPDesigner1.47 MB
2026-02-06
500mm右开道岔2.STEPDesigner492.37 KB
2026-02-06
View all(15)
