Air exhaust port
- 0.2 mm layer height, 2-wall walls, 10% infill density
2-disc
PETG
Designer
37
5
Description

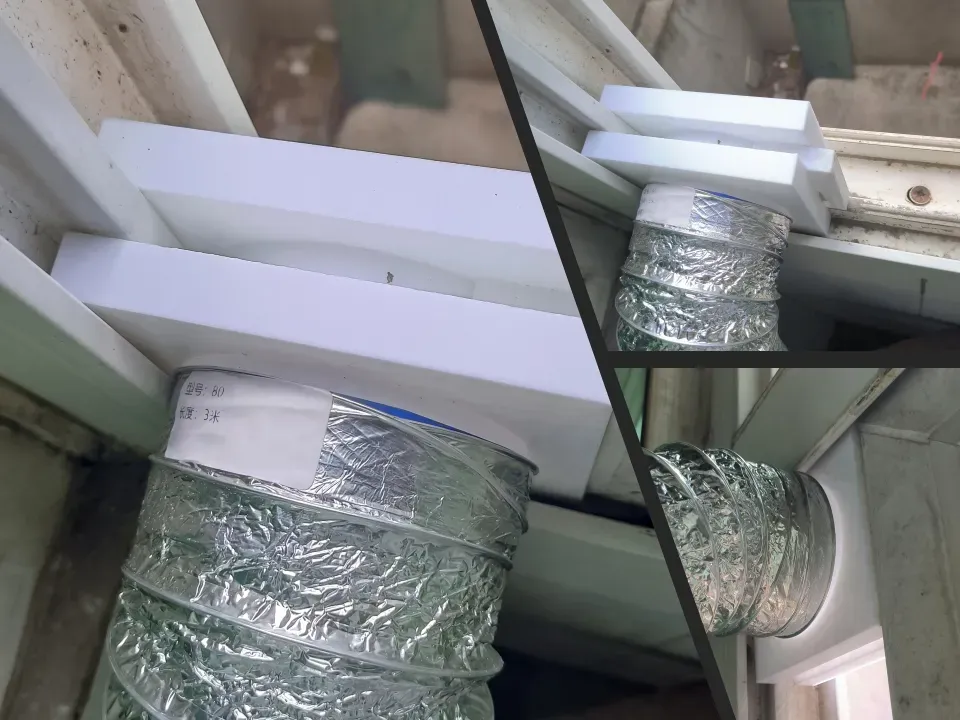

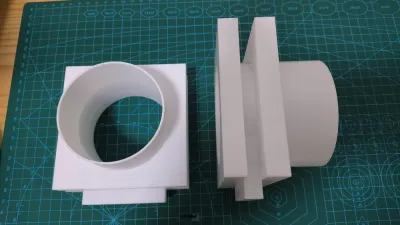

A 3D-printed ventilation duct outlet specifically designed for sliding window tracks, enabling efficient exhaust without the need to cut any openings. Once installed, you can easily seal the space below with a plastic sheet or film to prevent backflow of air.
Notes:
- The model was created using OrcaSlicer.
- The model includes two versions: the first is a single-part version, which is sufficient if you have no additional requirements; the second version requires embedding a 3M magnetic strip and has insufficient structural strength, so we do not recommend printing it. (You might consider modifying the model to add a slot for better attachment instead.)
- The model is optimized for 80-mm aluminum foil tubing. If your tubing is a different size, measure the dimensions with a vernier caliper, adjust the outlet size accordingly, and then reprint the part.
- We recommend using PETG for printing.
- You can enable High-Speed Mode to increase print speed.
