Design Philosophy

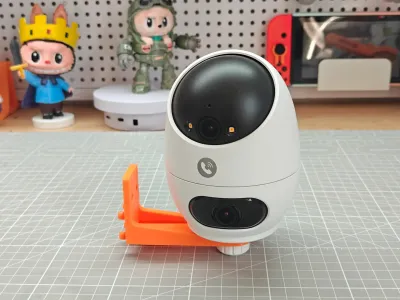

This design addresses the common mounting requirements for modern home security cameras. Featuring a modular architecture, it is compatible with a wide range of cameras—including Xiaomi Mijia and Ezviz models—allowing users to easily switch between different brands without needing to purchase new mounts.

Applications

Primarily intended for residential and commercial settings, this camera mount serves as a versatile installation solution, enabling users to securely position cameras in locations where enhanced security is required.

Printing Recommendations

For optimal performance and durability, we recommend using high‑strength filaments such as ABS or PETG to ensure the mount remains stable and long‑lasting under various conditions.

Assembly Instructions

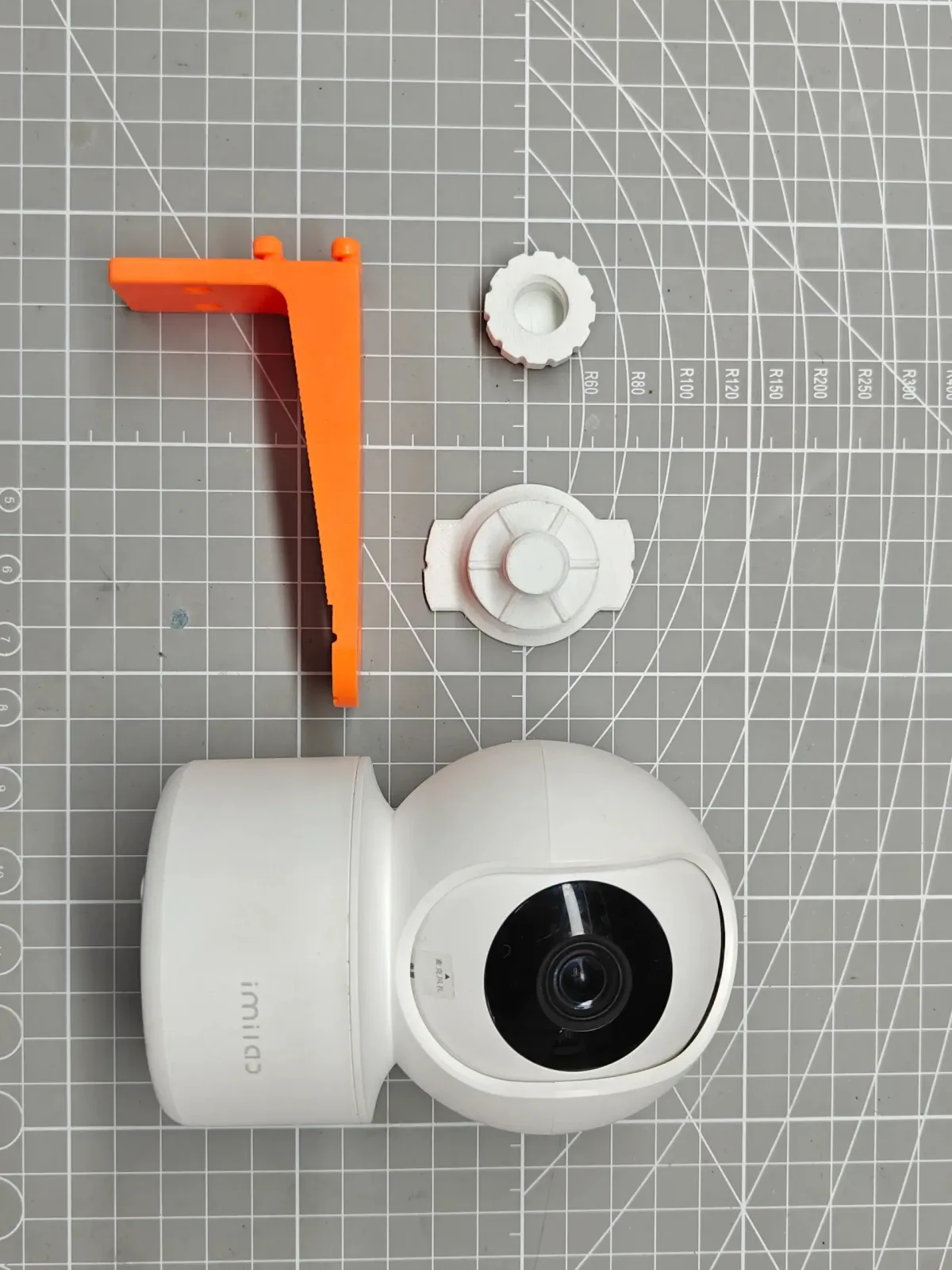

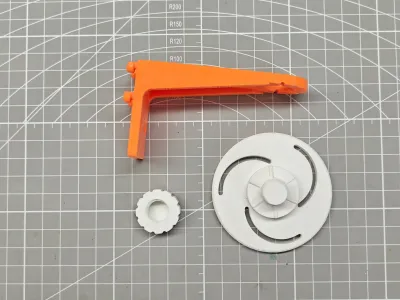

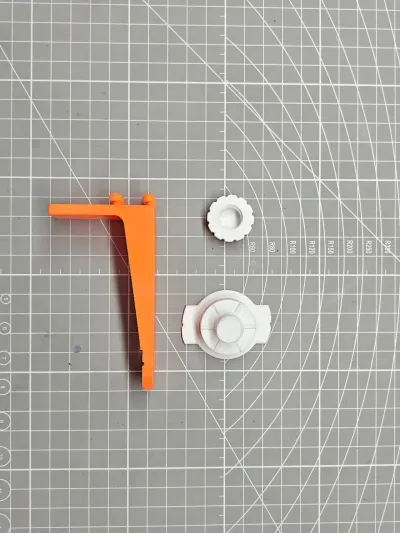

All necessary fasteners are integrated into the design; simply follow the provided diagrams for straightforward assembly. The model includes three connector sections and three base sections. When using universal connectors, first attach the original camera mount’s proprietary connectors to the universal adapter via screws, then secure the adapter to the base.

Connectors: Universal Connector, Xiaomi Xiaobai Dual‑Port Connector, Ezviz Triple‑Port Connector

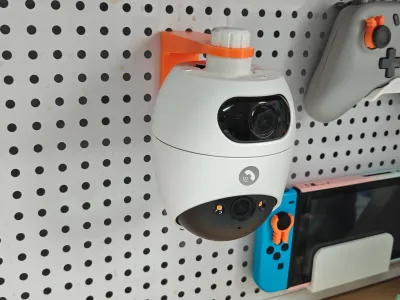

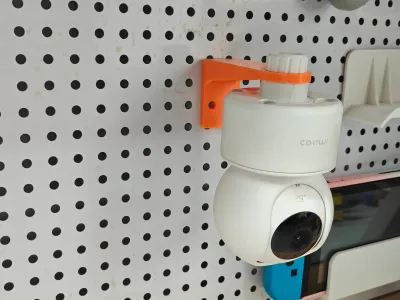

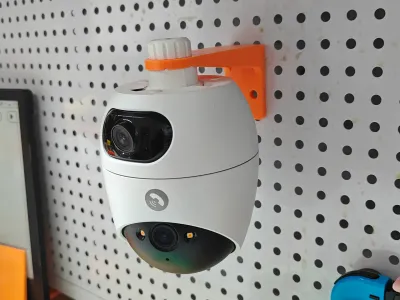

Bases: Metal Perforated Board Base (16 × 16 × 2 × 6 mm), Screw‑Fixed Base, Double‑Sided Adhesive/Glue‑Fixed Base

When printing, users can select and print only the components they need to create their desired configuration.
