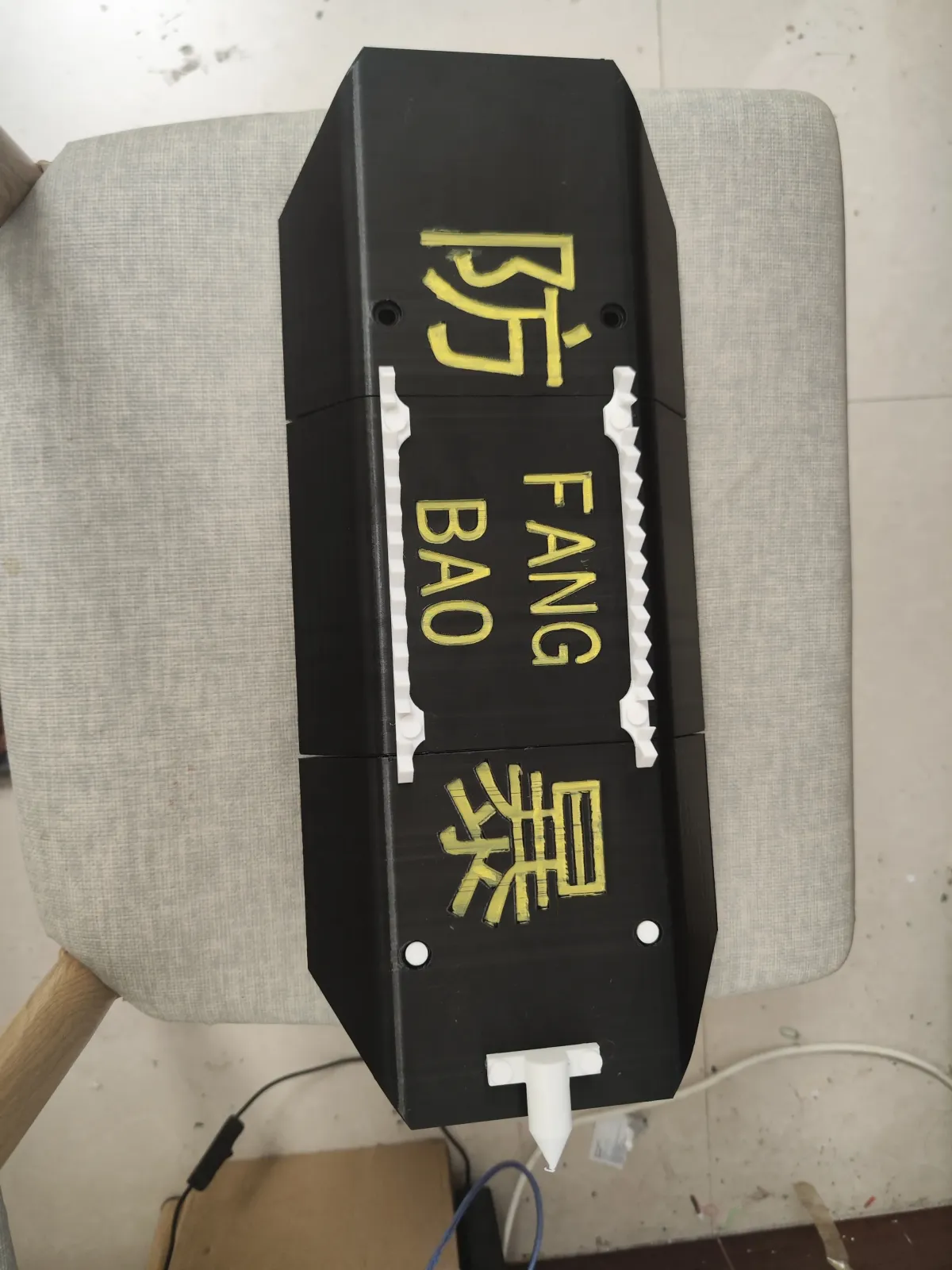

Easily color the recessed font using acrylic pens



No metal hardware is required—everything can be printed. In the second print file, there are parts that substitute for screws; these require glue and fit quite tightly. If they’re too tight to insert, you can reduce the model’s scale to 95% before printing. (If metal hardware is available, printing these parts isn’t necessary.)



Metal hardware can also be used: ten 6×18 mm screws paired with nuts.







A stainless steel round rod, 5×290 mm (relatively tight) or 4×290 mm (used with glue), is inserted through the center. Using a longer rod may cause it to protrude as a sharp spike at the attack head. With this stainless steel rod reinforcement, it might indeed help deter violence.



The attack head can be replaced with a strobe light; the mounting holes consist of two 6 mm circular apertures spaced 32 mm apart along the central axis.

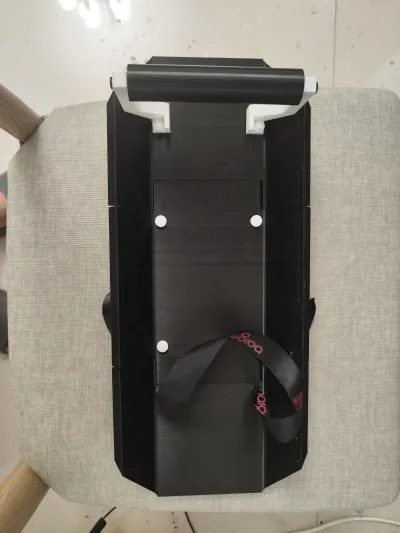

Be sure to distinguish between left- and right-handed shields, otherwise the text will appear reversed. One end features a handle for attaching the attack head, while the other end has a hole for threading a cord.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    直径5毫米或4毫米不锈钢或者他材质圆棒
    4
    长度290毫米,如果使用长些的棒条将会在攻击头部位凸出来尖刺

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(2)

  • model file image
    左手持盾.3mfDesigner

    723.18 KB

    2026-06-14

  • model file image
    右手持盾.3mfDesigner

    721.17 KB

    2026-06-14
