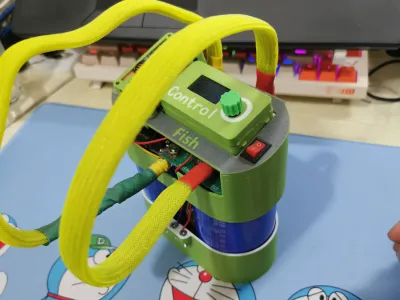

A spot welder housing designed using a 1500F*2 series-connected supercapacitor configuration
Since materials vary from person to person, this model primarily provides a convenient framework. If you have additional requirements, please customize it accordingly.
It consists of two separate parts:
The upper cover can accommodate the controller, constant-voltage/constant-current charging module switch, discharge-balancing module, DC charging female connector, and more.
The lower section serves as a base that can hold a 10 mm-diameter spot-welding pen, with three pre-drilled M3 screw holes for voltage‑balancing measurements.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(2)
- 1500F 2S上盖.3mfDesigner
139.77 KB
2026-06-09
- 1500F 2S底座.3mfDesigner
77.07 KB
2026-06-09
