Extra-large water tank, tank with overhead tracks, KV2 tracked chassis model, track plates
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    5-disc

    PLA

    Designer

    5(3)

5

3

105

22

Released 2026-05-08
Details
Files(1)
Makes & Comments (0)

Original design by Meng Ye Guo Shou

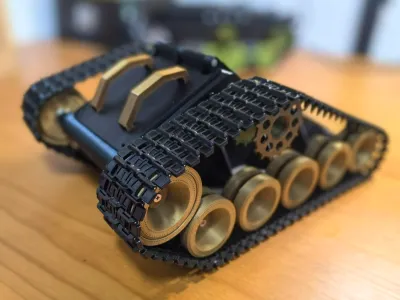

Extra-large over-the-top tracked tank chassis model



Requires two KV2 military-model track plates, two 370 DC gear motors with a shaft diameter of 7 mm, several M3×10 screws for securing the housing and motors, several M3×15 screws for mounting the road wheels, and several 689ZZ bearings



The top cover is attached by inserting filament into slots; if you need the track plates, please contact me



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    370减速电机
    2
    轴径7mm，7字型
  • 2
    M3*10螺丝
    20
  • 3
    689zz轴承
    20
  • 4
    M3*15螺丝
    20
