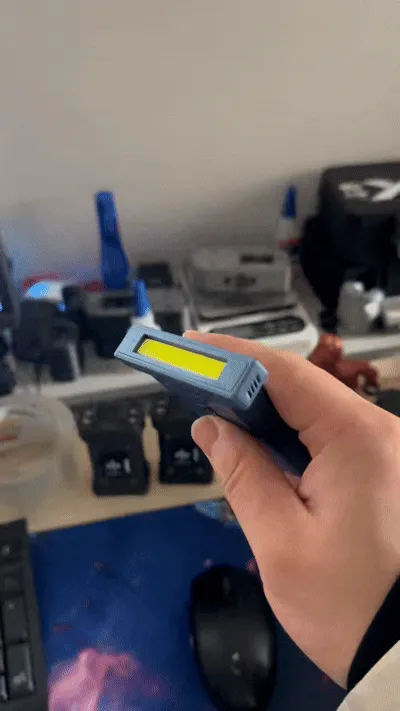

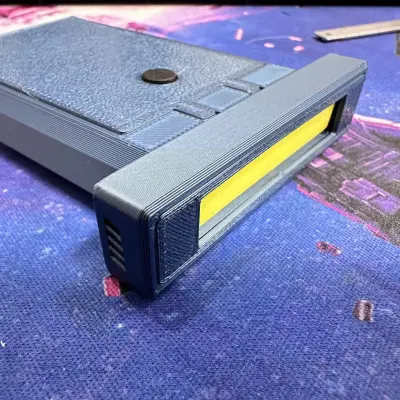

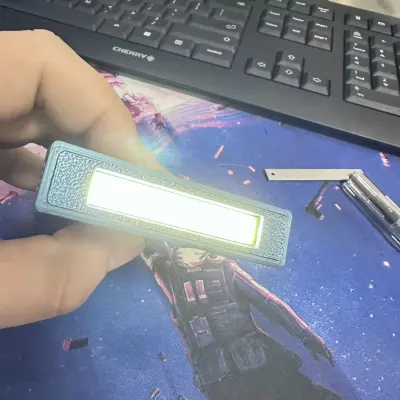

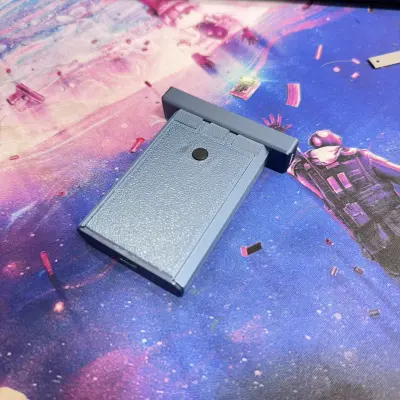

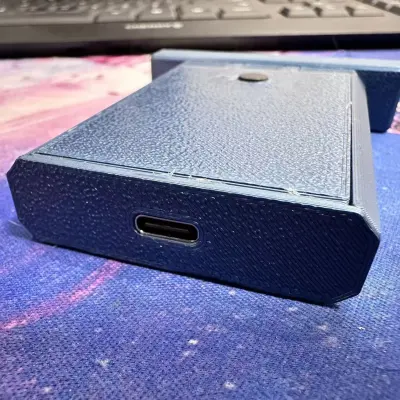

Mini flashlight

The following accessories are required:
Model 421243 – 3.7V lithium battery (other models with smaller dimensions can also be used as substitutes)

TYPE-C charging protection board https://mobile.yangkeduo.com/goods2.html?ps=PvTT37AD2Z
60×8 LED light board        https://mobile.yangkeduo.com/goods.html?ps=kEu5Kyy3ni

12×12×5 tactile switch        https://e.tb.cn/h.ik7sp6a58h87C9Y?tk=23DB5WVpJeV

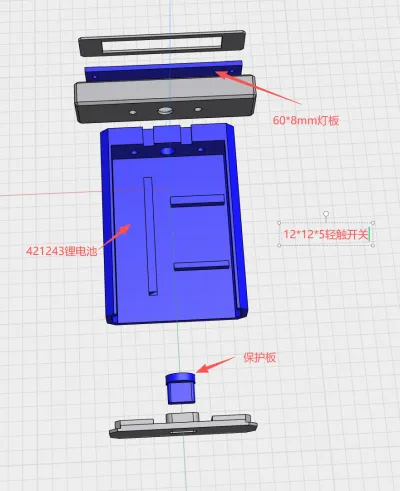

The installation locations are shown in the diagram.

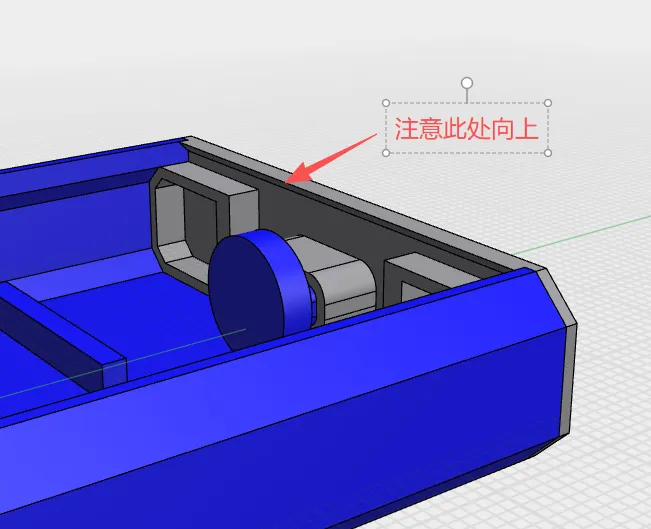

After connecting the positive and negative terminals of the light board, route the wiring from the side to the circular hole at the back of the board. Use two M3×20 screws on the edge, then simply cover it with the cap.

The wiring sequence is as follows: connect the battery’s negative terminal to both the protection board’s negative terminal and the light board’s negative terminal.

Connect the battery’s positive terminal to switch pin 1 and the protection board’s positive terminal; connect switch pin 2 to the light board’s positive terminal.
