A comprehensive selection of hooks designed specifically for perforated panels with 25 mm hole spacing and 6 mm hole diameter, offering a wide variety of styles and sizes.
Below is a detailed introduction:
A: Only occupies a single hole position; compact and space-saving, but less stable and with limited load-bearing capacity.

BD: Similar structure, occupying two adjacent hole positions; the hook face is flat, with one straight edge and one angled edge on the outer perimeter.


C: Occupies two adjacent hole positions; the hook face is semi-circular.

E: Occupies two adjacent hole positions, with the lower hole extending outward to form a supporting triangle, providing stronger load-bearing capacity. The hook face is flat, and the outer edge of the hook is angled.

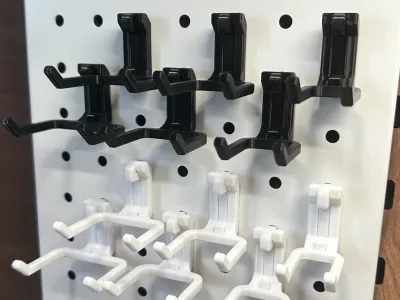

F: Equivalent to a double-row angled hook, suitable for hanging scissors and hammers. The front-to-back distance between the rods is approximately 2.5 cm.

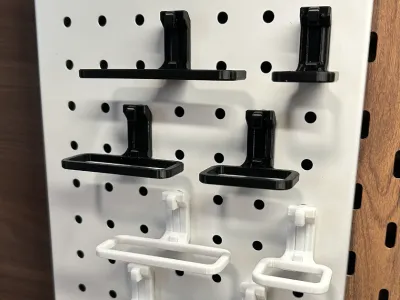

G: A flat, rounded-corner rectangle.

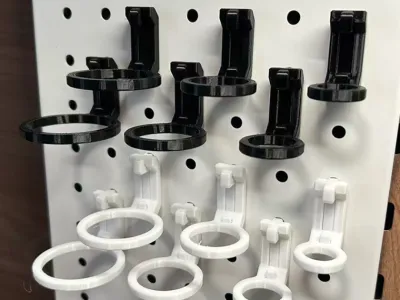

H: A flat, circular shape.

J Hook: A thicker, reinforced version of B, designed as a heavy-duty hook. It occupies both the upper and lower holes completely.

K Hook: A thicker, reinforced version of E, also a heavy-duty hook. It occupies both the upper and lower holes completely.

L Hook: A thicker, reinforced version of C, also a heavy-duty hook. It occupies both the upper and lower holes completely.

Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(11)
J型挂钩汇总.3mfDesigner68.58 KB
2026-03-24
H型挂钩汇总.3mfDesigner177.07 KB
2026-03-24
B型挂钩汇总.3mfDesigner87.11 KB
2026-03-24
G型挂钩汇总.3mfDesigner154.53 KB
2026-03-24
F型挂钩汇总.3mfDesigner135.93 KB
2026-03-24
K型挂钩汇总.3mfDesigner99.03 KB
2026-03-24
L型挂钩汇总.3mfDesigner102.86 KB
2026-03-24
A型挂钩汇总.3mfDesigner67.84 KB
2026-03-24
E型挂钩汇总.3mfDesigner104.45 KB
2026-03-24
D型挂钩汇总.3mfDesigner90.70 KB
2026-03-24
C型挂钩汇总.3mfDesigner104.33 KB
2026-03-24
View all(11)
