RC Helicopter Motor Fan Cooling Base (Fast Post-Flight Cooling Version)

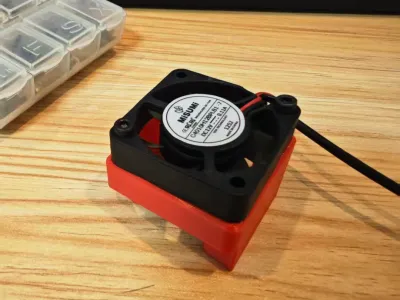

This red 3D‑printed cooling base is a specialized post-flight rapid cooling accessory designed for 360-class RC helicopters—such as the GAUI X3. Its core function is to actively force air cooling over high‑load motors after aggressive flight or landings in high‑temperature environments, preventing heat buildup that could lead to performance degradation or component damage.

✨ Core Features

1. Post-Flight Rapid Cooling

   • After a flight, the motor remains at high temperatures and cools naturally at a slow rate. This cooling base, paired with a 40mm fan, actively blows away residual heat from inside the motor, reducing cooling time by several times. This allows you to quickly launch your next flight session or safely perform maintenance operations.

   • It effectively prevents demagnetization of the motor’s magnets and degradation of bearing grease caused by residual heat, extending the motor’s service life.

2. Precise Airflow Guidance

   • The cooling base’s structural design precisely directs the airflow generated by the fan toward the motor’s stator and coil—the core heat‑generating areas—preventing airflow dispersion and maximizing cooling efficiency.

   • The support feet on the base create an efficient airflow channel between the fan and the motor, allowing hot air to escape smoothly and preventing heat from accumulating inside the motor.

3. Stable Mounting & Protection

   • Securely fasten the fan to the cooling base using screws, then mount the cooling base onto the top of the motor—ensuring that the fan remains firmly in place under all conditions, without loosening or detaching.

   • As a buffer layer, the cooling base protects the fan from collisions and impacts while isolating fan vibrations to prevent them from being transmitted to the aircraft’s fuselage.

4. Lightweight & Portable

   • Made from high‑strength 3D‑printing materials such as PETG or nylon, this cooling base offers exceptional structural rigidity while remaining incredibly lightweight—perfect for long‑term installation on the motor without the need for frequent removal.

   • When flying outdoors, you don’t need to carry bulky cooling equipment; simply activate the fan after landing to rapidly cool the motor.

🎨 Design & Materials

• Precision Fit: Custom‑designed to match the motor dimensions and frame layout of 360‑class helicopters, ensuring a perfect fit with no interference after installation.

• Structural Optimization:

  • Square Frame: The design perfectly accommodates standard 40mm fans, while the screw holes at each corner ensure secure fan mounting.

  • Support Feet: These create an airflow channel between the fan and the motor, guiding the air and efficiently exhausting heat.

  • Hollowed-Out Design: While maintaining structural strength, this design maximizes weight reduction without compromising durability.

• Material Selection: PETG or nylon materials offer excellent toughness and thermal resistance, making them well suited to the high‑temperature operating environment of helicopter motors—and resistant to deformation even under prolonged exposure to heat.

📦 Application Scenarios

• After Aggressive Flights: After performing 3D aerobatic maneuvers or extended high‑intensity flights, the motor can reach extremely high temperatures. Use the cooling base to rapidly reduce the motor’s temperature and prevent component damage.

• Flights in High‑Temperature Environments: In hot weather, natural cooling becomes less effective; forced air cooling helps efficiently lower the motor’s temperature.

• Consecutive Flight Training: During multi‑session flight training, rapid cooling allows the motor to quickly return to a safe operating temperature, boosting training efficiency.

• Pre‑Maintenance Preparation: Before performing motor maintenance or replacing components, use the fan to quickly cool the motor and minimize the risk of burns.

💡 Installation & Usage Tips

1. Installation: Secure the 40mm fan to the cooling base using screws, then mount the cooling base on top of the motor, ensuring the fan’s exhaust port faces directly toward the motor.

2. Wiring: Connect the fan’s power cable to the ESC’s BEC output or to a dedicated voltage regulator module, ensuring the supply voltage matches the fan’s specifications—for example, 12V.

3. Post‑Flight Procedure: After landing, keep the helicopter powered on, start the fan, and let it run for 2–5 minutes until the motor’s temperature has dropped to a safe range.

4. Maintenance: Regularly clean dust and debris from the fan and cooling base to keep the airflow channels clear; also check that all screws are securely tightened to prevent the fan from coming loose during flight.
