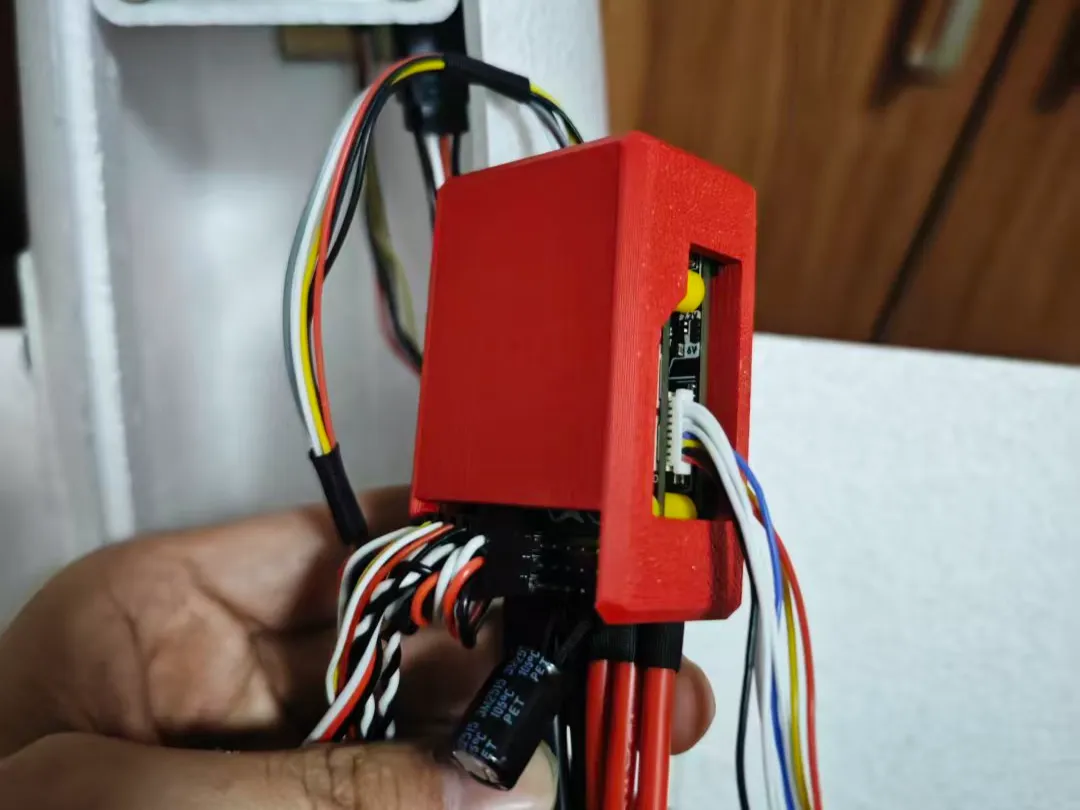

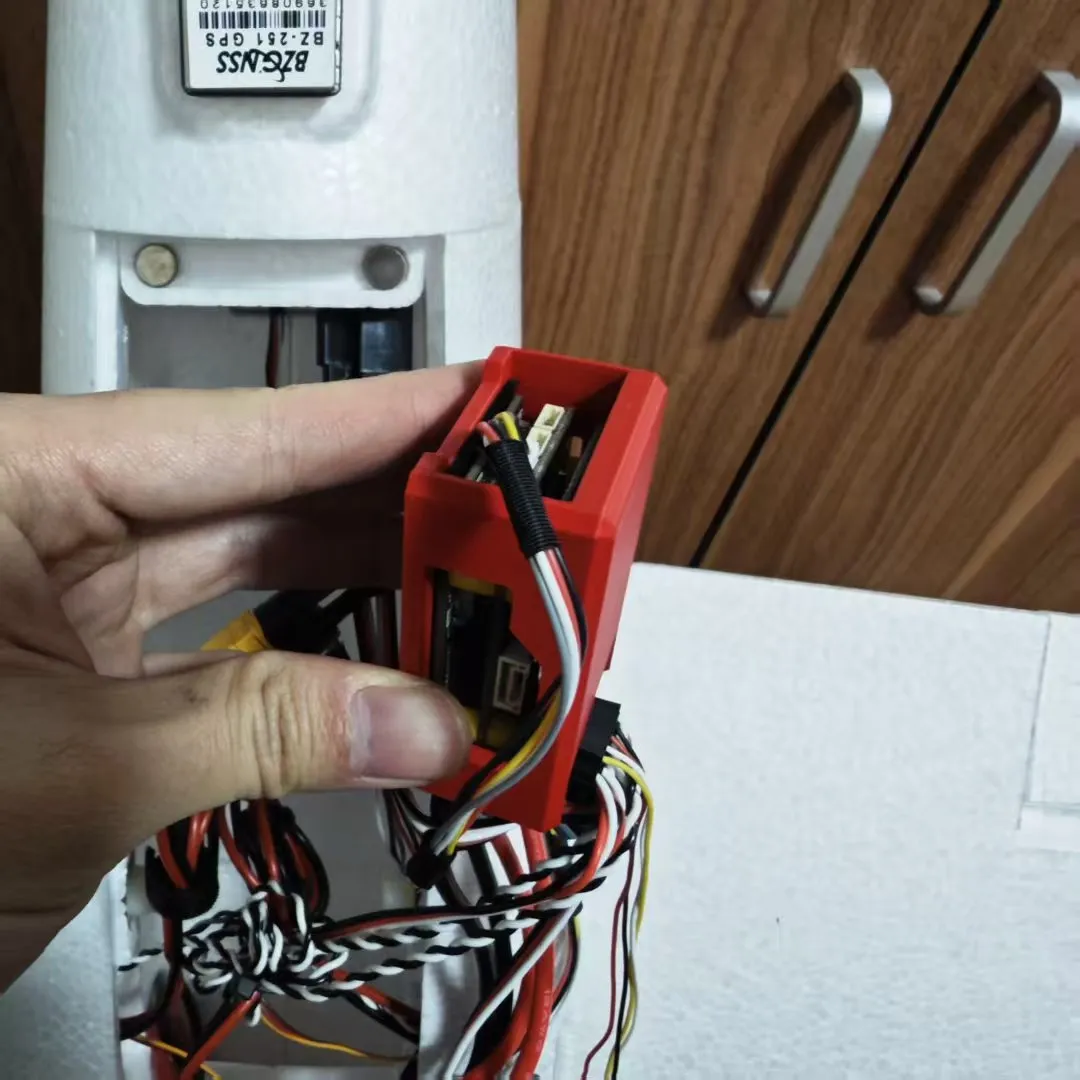

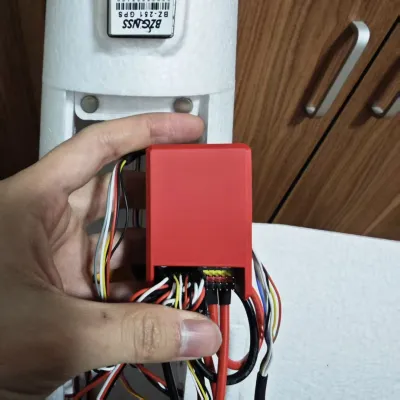

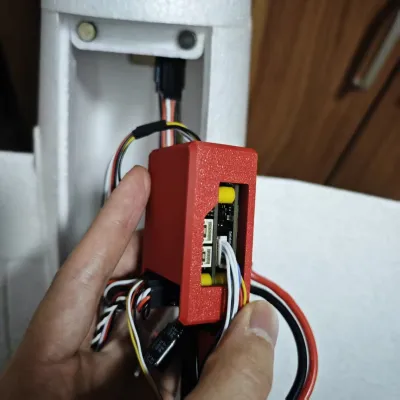

This is a custom 3D‑printed protective case designed for the Kuiyi F405 flight controller, primarily used to safeguard the core flight control module during model aircraft operations—such as FPV racing drones and fixed-wing aircraft.

Core Functions

• Physical Protection: In the event of crashes or accidental collisions, the case absorbs and disperses impact forces, shielding the flight control board from direct stress and preventing circuit board cracks, component dislodgement, or pin breakage.

• Short‑Circuit and Dust Resistance: The case isolates the flight controller from the airframe and wiring harness, eliminating the risk of short circuits caused by metal-to-metal contact while blocking dust and debris from entering critical connectors, thereby enhancing overall system stability.

• Cable Management: Strategically designed cable channels and openings guide and secure the flight controller’s signal and power cables, minimizing interference from loose wires during flight and ensuring a cleaner, more organized wiring layout throughout the aircraft.

Design Features

• Precision Fit: The case is meticulously modeled based on the exact dimensions, connector placements, and mounting holes of the Kuiyi F405 flight controller, ensuring a snug, gap‑free fit that prevents any wobbling or undue pressure on sensitive components.

• Lightweight Construction: Utilizing hollowed-out designs and thin walls, the case maintains structural integrity while minimizing weight, ensuring that it does not compromise the aircraft’s aerodynamic performance or flight efficiency.

• User‑Friendly Maintenance: Strategic cutouts on the side and bottom of the case provide easy access for plugging in and unplugging data cables, checking indicator lights, and quickly removing the case for firmware updates or troubleshooting.

• Durable Materials: Crafted from high‑strength 3D printing materials such as PETG and nylon, the case offers exceptional impact resistance and weather durability, making it ideal for demanding flight environments.

Application Scenarios

• High‑risk applications like FPV racing drones and 3D aerobatic flights.

• Long‑range aerial photography and surveying missions with multirotor or helicopter platforms.

• Industrial drone applications where equipment reliability is paramount.
