Wheel Hub Phone Holder
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    4-disc

    PETG

    Designer

2

0

28

1

Released 2026-02-03
Details
Files(1)
Makes & Comments (0)

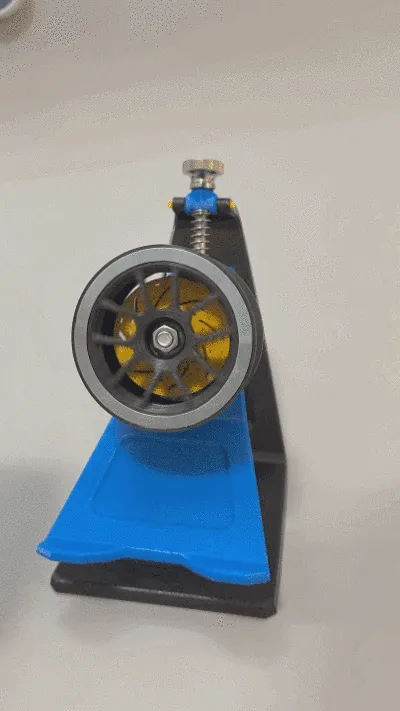

This magnetic hub phone holder features a magentic attachment function, and it also includes a dedicated cradle designed for phones that don’t support magnetic mounting—simply remove the cradle when you don’t need it.

The hub can rotate freely, allowing you to play with it as a stress-relief toy when your phone isn’t in use.

It also boasts a hub rotation lock feature, enhancing stability when holding your phone.

To lock the hub: Press down on the hub, then rotate it clockwise until it reaches the locking stop; release your grip to secure the lock.

To unlock the hub: Press down on the hub, then rotate it counterclockwise until it reaches the unlocking stop; release your grip to disengage the lock.

The hub is vertically adjustable and incorporates coil-over shock absorbers, while also offering integrated phone tilt adjustment—simply rotate the knurled nut to fine‑tune the hub’s angle.

The base is adorned with embossed patterns reminiscent of an automatic transmission oil pan, adding a touch of refined elegance.

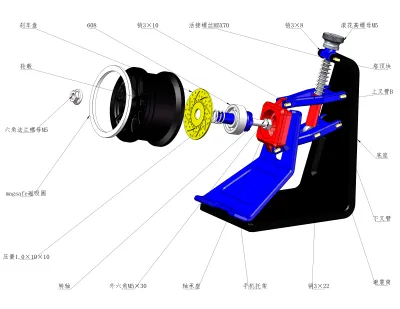

Hardware Components List:

1. 608 Bearing                                                             1 pc

2. 304 Stainless Steel Knurled High Nut                                     1 pc

3. 304 Stainless Steel Toggle Bolt M5×70                             1 pc

4. 304 Stainless Steel Flange Nut M5                                   1 pc

5. 304 Stainless Steel Hex Bolt M5×30                             1 pc

6. Stainless Steel Compression Spring 1.0×10×10 (Wire Diameter × Outer Diameter × Length)   1 pc

7. Stainless Steel Compression Spring 0.8×10×30 (Wire Diameter × Outer Diameter × Length)   1 pc

8. MagSafe Magnetic Ring (Optional—if you don’t need magnetic attachment, you can skip this component)   1 pc

9. 304 Stainless Steel Allen Head Socket Cap Screw M3* (fits lengths between 6–10 mm; optional—if you don’t need the phone cradle, you can omit this part)   4 pcs

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    608轴承
    1
  • 2
    304不锈钢滚花高螺母M5
    1
  • 3
    304不锈钢活节螺栓M5×70
    1
  • 4
    304不锈钢法兰螺母M5
    1
  • 5
    304不锈钢六角螺栓M5×30
    1
  • 6
    不锈钢压簧1.0×10×10
    1
    （线径×外径×长度）
  • 7
    不锈钢压簧0.8×10×30
    1
    （线径×外径×长度）
  • 8
    magsafe磁吸圈
    1
    （不要磁吸功能可以不买）
  • 9
    304不锈钢内六角杯头螺栓M3*（6-10）
    4
    不要手机托架可以不买）

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    轮毂手机支架.3mfDesigner

    26.75 MB

    2026-02-02
