⭐Precise Modeling with SolidWorks

🚀Model Overview

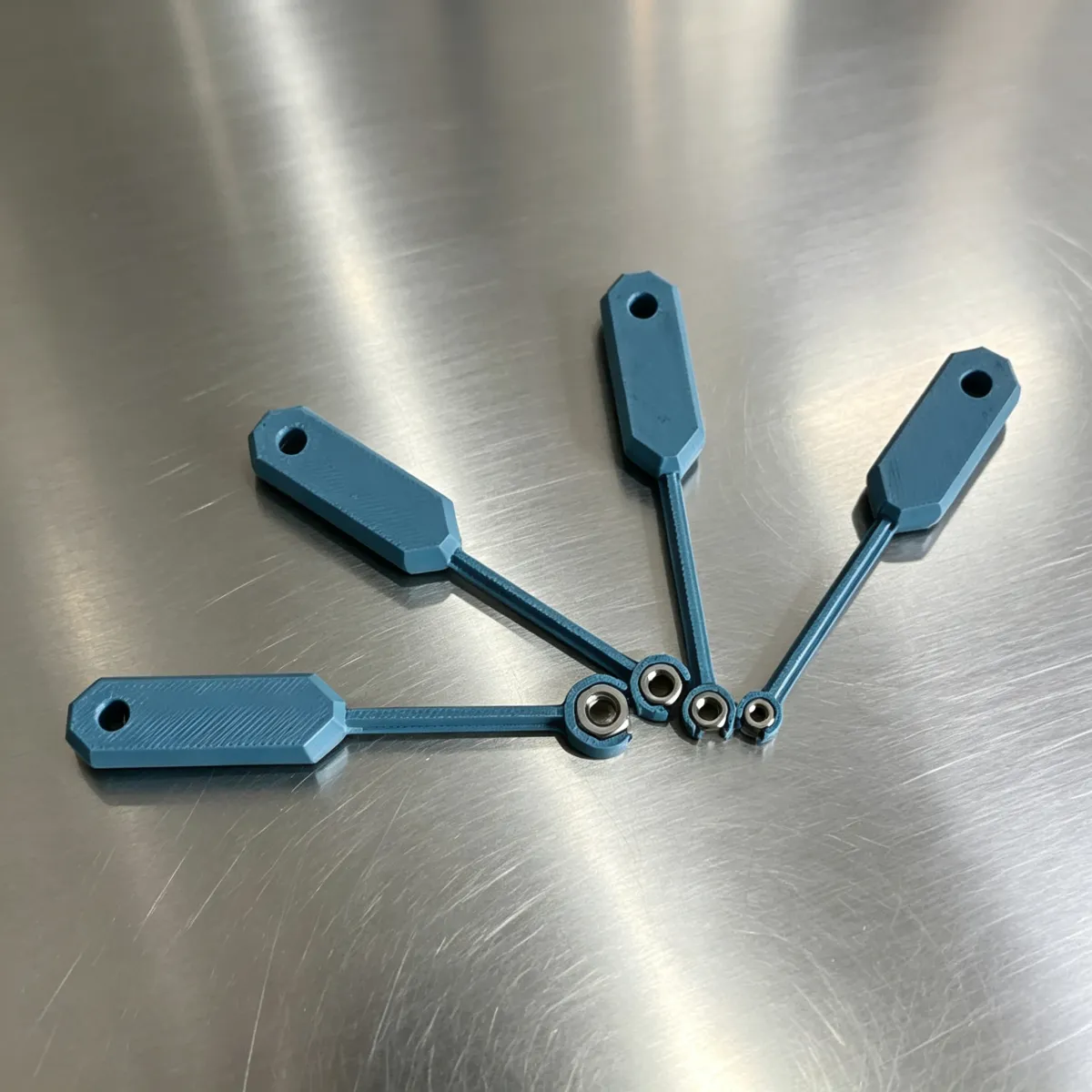

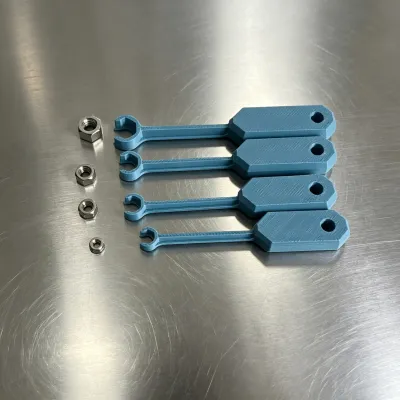

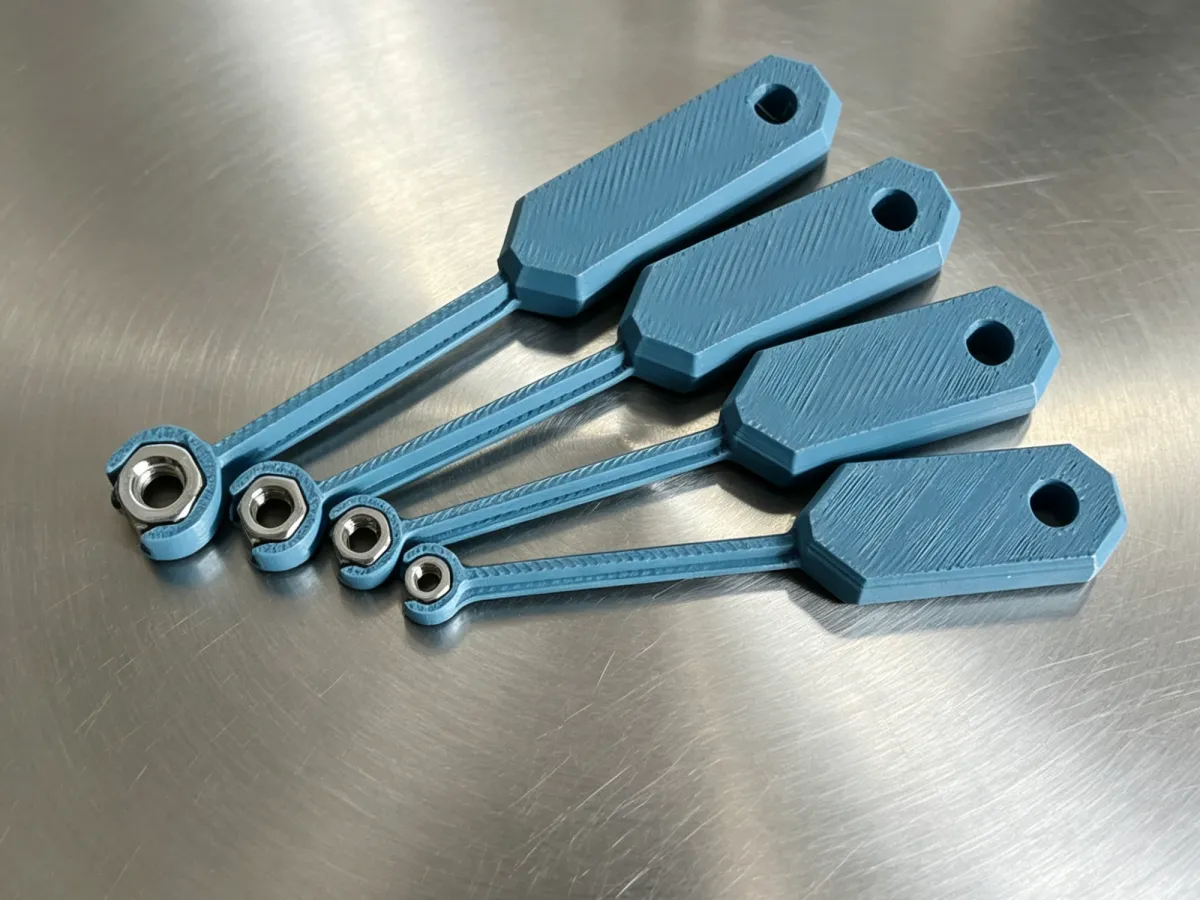

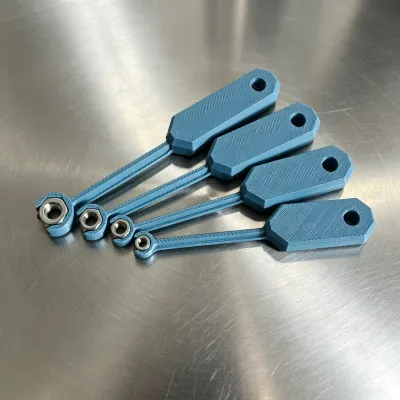

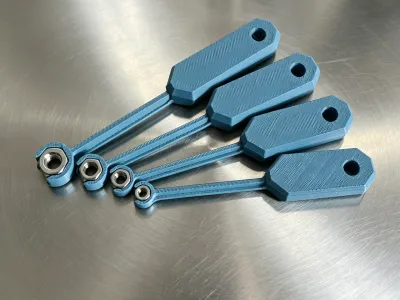

This 3D-printed nut‑installation jig is a specialized auxiliary tool designed to address the challenge of positioning nuts in tight spaces. Its precisely matched bayonet‑style interface allows it to temporarily hold hexagonal nuts of various sizes. To use, first insert the nut into the jig’s socket for preliminary fixation, then hold the jig and guide the nut to the intended installation location, aligning it with the screw hole. Once the nut is roughly tightened, the jig can be removed, enabling one‑handed operation throughout the process. The jig is manufactured as a single piece using food‑grade PLA material, featuring an elongated handle and a lightweight structural design. The mating tolerances between the socket and the nut have been meticulously calibrated: they securely grip the nut to prevent accidental loosening while ensuring smooth removal after tightening.

        This jig is widely applicable across diverse scenarios, including assembling 3D‑printed models, maintaining RC cars and model aircraft, performing small‑scale mechanical assembly, and engaging in desktop‑level DIY projects. Particularly in confined areas—such as inside computer cases, between frame gaps, or within model cavities—where conventional wrenches cannot reach, its slender handle offers a distinct advantage, effectively resolving issues like misalignment and nut drop‑offs. Whether you’re a professional maker handling large‑scale product assembly or a hobbyist crafting creative projects at home, this jig transforms the nut‑installation process from “repeated alignment adjustments” to “precise placement in one step,” significantly boosting assembly efficiency.

🚀Printing Recommendations

Default settings are sufficient for printing.
