Bag‑Style Pet Litter Scoop — An Integrated Cleaning and Storage Solution

Project Overview

This innovative pet litter scoop is designed specifically for cleaning up cat litter, tofu litter, mixed litter, and other types of pet waste. Traditional litter scoops require frequent trips to the trash bin, which is not only cumbersome but also leads to odor dispersion and secondary contamination. By integrating a garbage bag storage feature directly into the scoop’s main body, this design enables users to scoop, filter, and collect in one seamless step, significantly improving both cleaning efficiency and user experience.

Design Philosophy

The design centers around the principles of “greater convenience, enhanced hygiene, and space efficiency.” By optimizing the conventional scoop structure, the product allows a standard garbage bag to be slipped over the rear end of the scoop, enabling clumped pet litter to drop directly into the bag without the need for secondary transfer, thereby minimizing contact and reducing the risk of contamination.

In addition, an innovative hanging hook has been integrated at the top of the handle, allowing users to easily suspend the tool on the edge of the litter box, a wall-mounted hook, or a storage rack—providing instant access while saving valuable space.

Key Features

1. Direct Garbage Bag Attachment

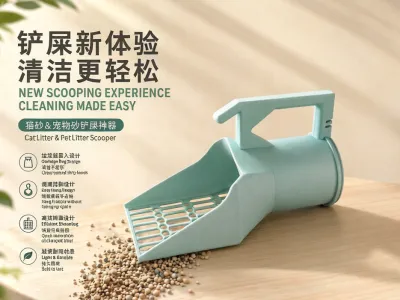

The scoop features a cylindrical tail section that can accommodate commonly available garbage bags, with a diameter of 75 mm. During use, clumped litter is sifted through the screen and deposited directly into the bag, enabling simultaneous scooping and collection and eliminating the tedious back-and-forth of emptying the scoop.

2. High‑Efficiency Screening Mechanism

The scoop surface incorporates a combined mesh design featuring elongated slots and circular holes, which ensures structural strength while enhancing screening efficiency. This allows for rapid separation of reusable pet litter from clumped waste.

3. Convenient Hanging Storage

A built-in hook at the top of the handle lets users hang the scoop on walls, litter box edges, or storage racks—eliminating the need for additional stands, saving space, and ensuring easy accessibility.

4. Integrated Lightweight Design

The entire device employs an all‑in‑one structural design, making it ideal for 3D printing manufacturing without requiring complex assembly. The model is lightweight yet durable, with low printing complexity, facilitating easy fabrication and use by home users.

5. Compatibility with Various Types of Litter

The scoop works effectively with cat litter, tofu litter, bentonite litter, mixed litter, as well as certain small‑animal bedding materials, offering excellent versatility.

Innovative Highlights

• Integrated design combining a garbage bag with the litter scoop
• Simultaneous cleaning and collection
• Reduced odor spread and minimized secondary contact
• Integrated hook‑based storage system
• Well suited for rapid 3D‑printed production
• Enhanced daily cleaning efficiency for pets

Application Scenarios

This product is ideal for households with cats, pet stores, pet boarding facilities, veterinary clinics, and other settings where frequent cleaning of pet waste is required.

Through its simple yet practical structural innovations, this project transforms the traditional pet litter scoop into a highly efficient, multi‑functional tool that integrates cleaning, collection, and storage, providing pet owners with a more convenient and hygienic cleaning solution.
